Accuphase DAC-60 Option Board - 2nd Hand


View All Accuphase

In Stock, Available Now




Only owned and used for a few months at which point the owner traded up to an Accuphase DP-450.
Obviously in great working condition, in the original packaging with manual etc.
3 Year Warranty.
Enquire for shipping rates

Convert digital signals into high-quality analog signals

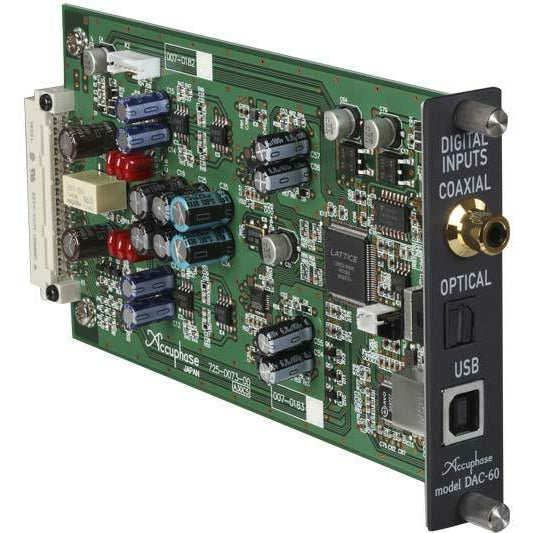

The DAC-60 is a digital input board that can input digital signals directly into amplifier units when installed in Accuphase preamplifiers and integrated amplifiers.

Three input types are provided (USB, OPTICAL, COAXIAL) for connection to a broad range of digital devices. The D/A converter adopts the “2MDS+ (Multiple Delta Sigma) converter principle” with ES9016K2M (ESS Technologies) mounted in parallel to convert analog signals that remain extremely true to the original source sound. Born from cutting-edge audio technologies, the DAC-60 is an option board that provides truly high-quality and fully expressive performance.


The USB input handles signals up to 11.2 MHz / 1-bit [DSD] and 384 kHz / 32-bit [PCM], the coaxial input supports up to 192 kHz / 24-bit and the optical input up to 96 kHz / 24-bit.



Type: USB 2.0 High Speed (480Mbps) compliant

Sampling frequency DSD: 2.8224MHz, 5.6448MHz, 11.2896MHz(1bit)*11.2896MHz(ASIO only)

Sampling frequency PCM: 32kHz~384kHz, 32bit


Type: JEITA CP-1212 compliant

Sampling frequency: 32kHz~96kHz, 24bit


Type: IEC 60958/AES-3 compliant

Sampling frequency: 32kHz~192kHz, 24bit
