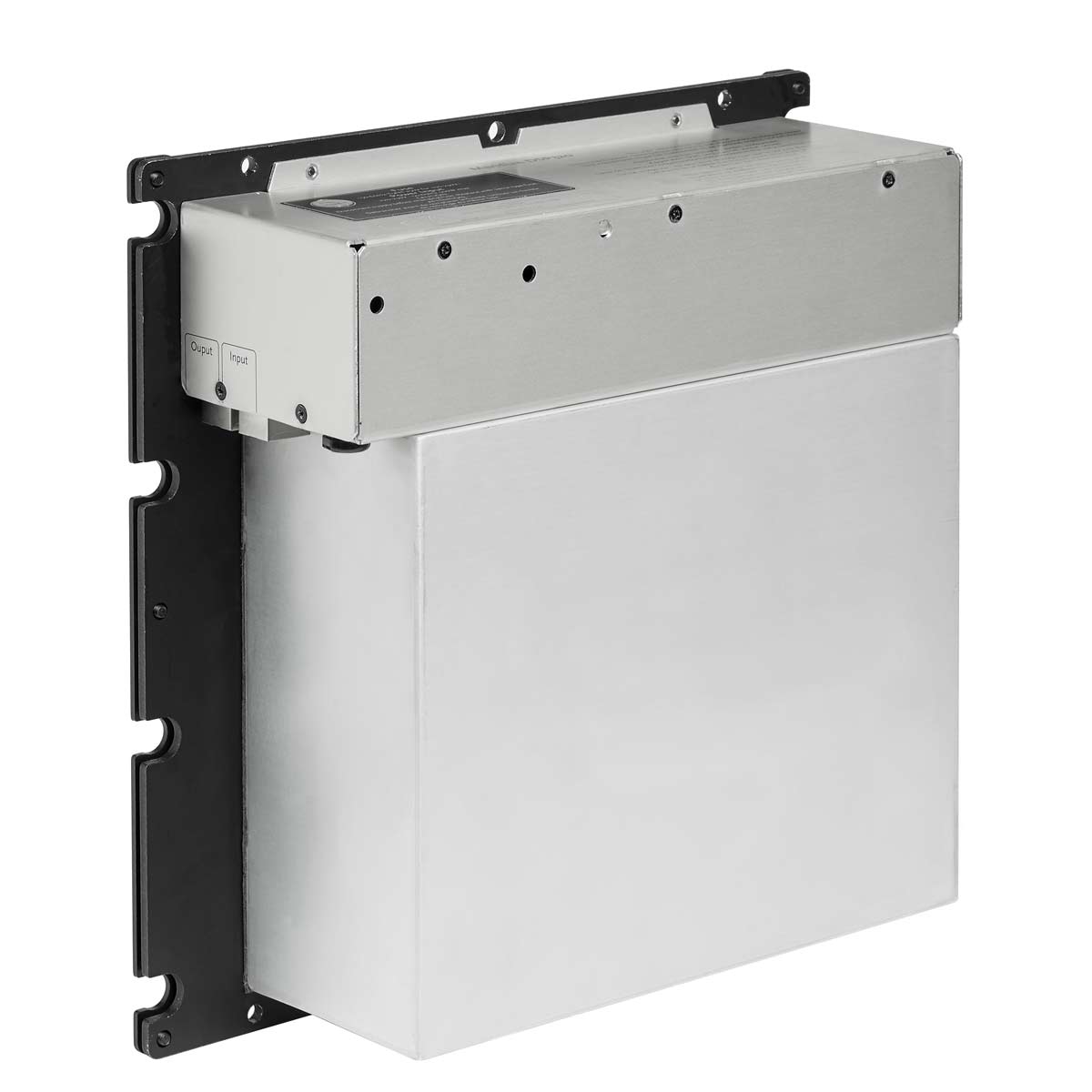

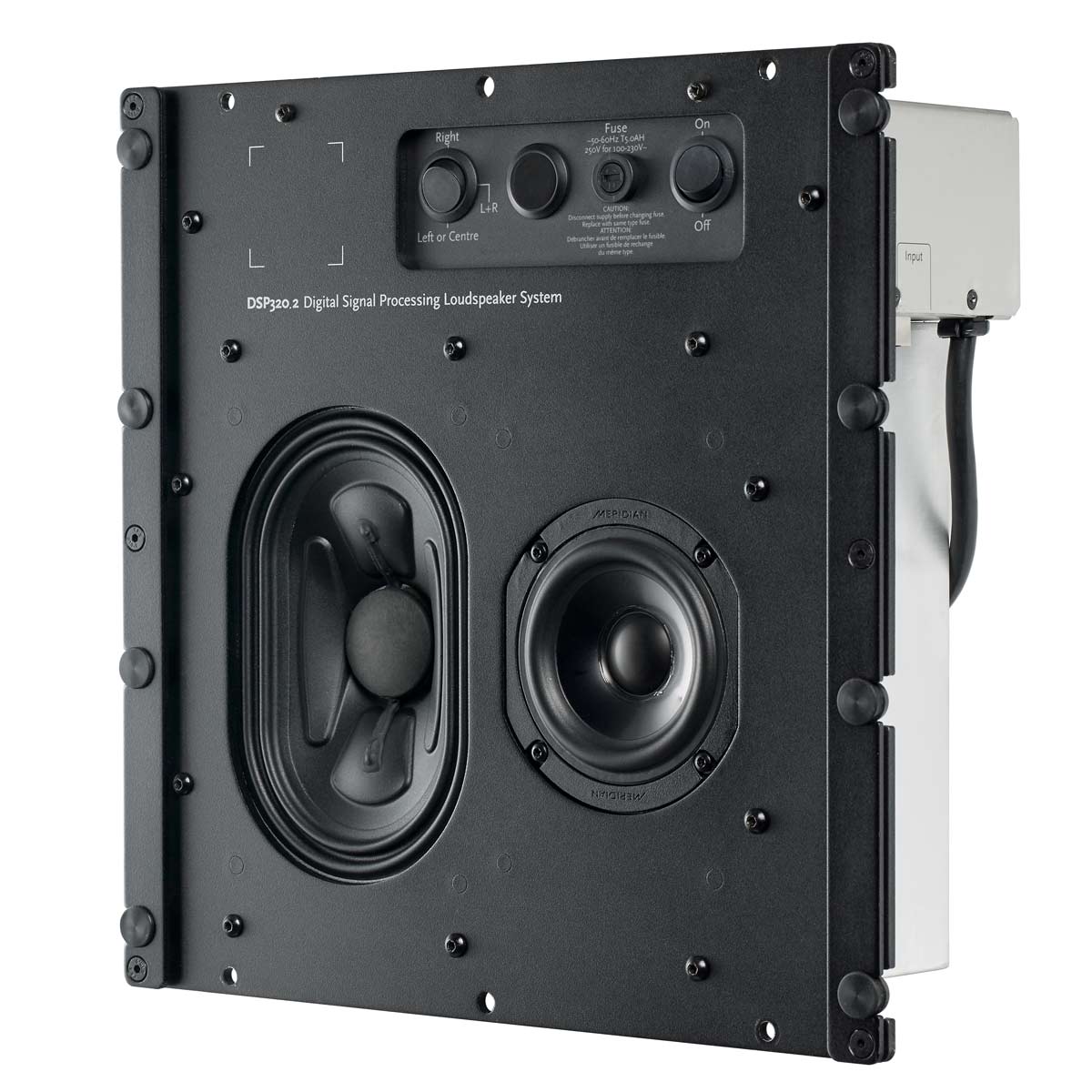

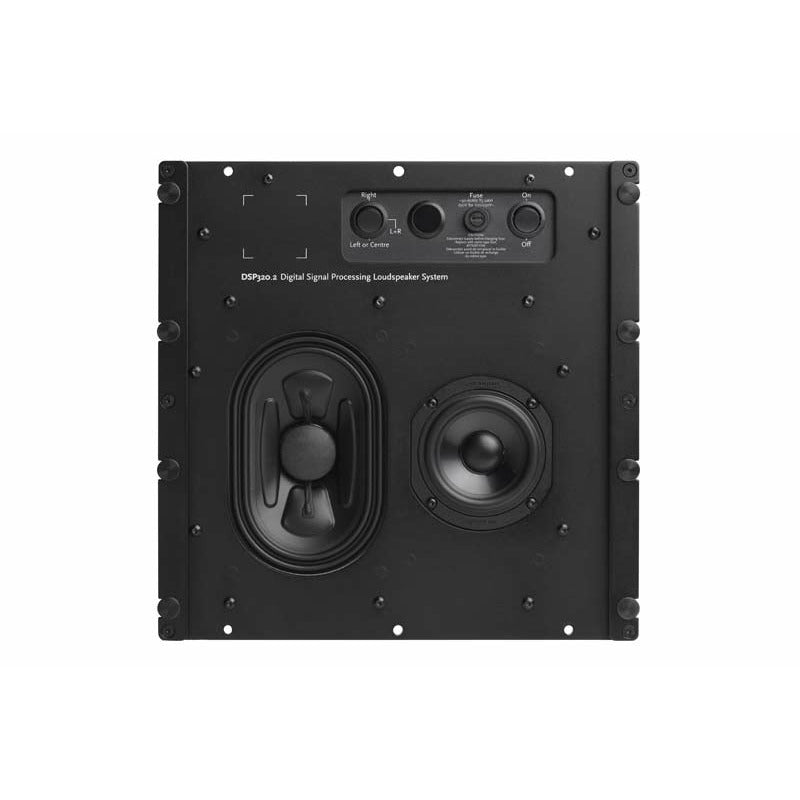

Featuring an elegant profile, the DSP320.2 offers unrivalled power, accuracy and bass performance for a speaker of its size. Its compact design and wide-dispersion capabilities make it perfect for mounting in a wall or ceiling. The DSP320.2 delivers full DSP loudspeaker performance, while the back-box and frame system allows for easy installation, precise positioning and consistent sound.
The DSP320.2 combines Meridian’s world-renowned DSP technologies with powerful built-in amplification, making it a true full-range loudspeaker with deep, extended bass.
Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install.
Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.
Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.
AUDIO INPUTS: Meridian SpeakerLink connector (RJ45)
AUDIO OUTPUTS: Meridian SpeakerLink connector (RJ45)
PERFORMANCE: Peak SPL: Peak SPL: 1m - 106dB
AMPLIFIERS: 1 x 80W Class D amplifier per wide-range driver 1 x 80W Class D amplifier per bass driver
BASS DRIVERS: 1 x ‘Racetrack’ oval bass driver
WIDE-RANGE DRIVERS: 1 x 85mm
FRONT PANEL CONTROLS: On/off rocker switch, Fuse holder, IR window Rocker switch selects left-centre-right channel operation LED indicator shows power status
BOX DIMENSIONS / WEIGHT: HEIGHT: 299.5mm [11.8in] WIDTH: 299.5mm [11.8in] DEPTH: 103mm [4in] WEIGHT: 5 kg [11 lbs]
GRILLE DIMENSIONS: HEIGHT: 315.5mm mm [12.4in] WIDTH: 315.5mm mm [12.4in] DEPTH: 6mm [0.23in]
POWER: IEC mains connector included in back-box connects to flying lead attached to enclosure
