Monitor Audio CP-CT380IDC 3 Way In-Ceiling Speaker
Monitor Audio CP-CT380IDC 3 Way In-Ceiling Speaker
Monitor Audio CP-CT380IDC 3 Way In-Ceiling Speaker
Monitor Audio CP-CT380IDC 3 Way In-Ceiling Speaker
Monitor Audio CP-CT380IDC 3 Way In-Ceiling Speaker
Monitor Audio CP-CT380IDC 3 Way In-Ceiling Speaker

Monitor Audio CP-CT380IDC 3 Way In-Ceiling Speaker (Each)

$950.00

View All Monitor Audio

In Stock, Available Now

Pickup available request a demonstration

Details

Specifications

8", 150w 3 way Pivoting In-Ceiling Theatre Speaker

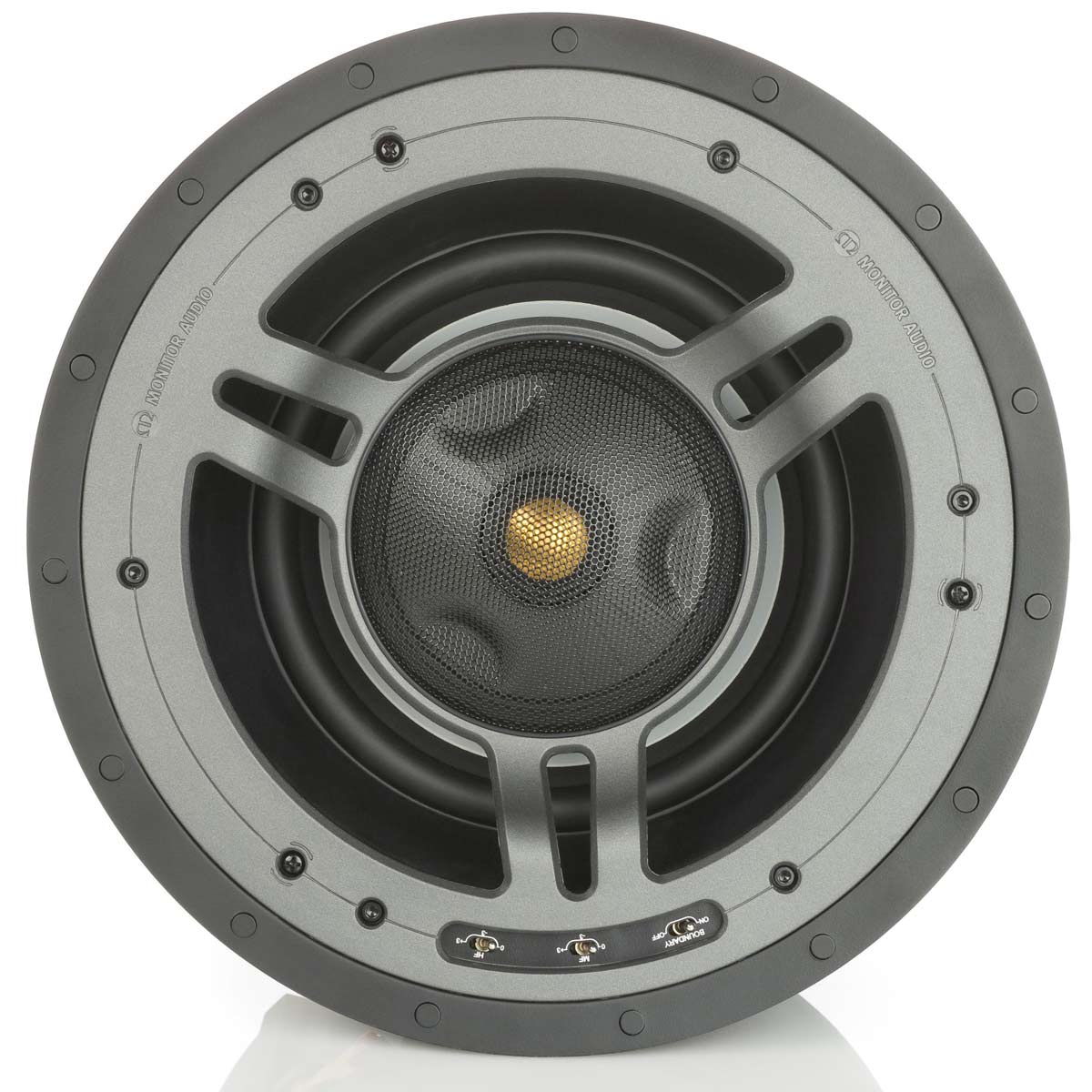

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC®) midrange/tweeter module and 8” RST® C-CAM® bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance. The IDC module houses a 4” C-CAM inverted midrange driver surrounding a 25mm C-CAM gold dome tweeter.

  • Pivoting module consisting of IDC midrange driver and C-CAM gold dome tweeter.
  • C-CAM bass driver featuring Rigid Surface Technology (RST).
  • High overall efficiency.
  • High frequency level adjustment (+/-3dB).
  • Midrange frequency level adjustment (+/-3dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
  • Frequency Response: 50 Hz - 25 kHz
  • Impedance (Nominal): 6 ohms
  • Sensitivity (1W@1M): 89 dB
  • Maximum SPL 109.6 dBA
  • Power Handling (RMS): 120 W
  • Recommended Amp Requirements: 30 - 120 W
  • 2-Way, 8˝ C-CAM® RST® cone bass driver, 1˝ C-CAM pivoting gold dome tweeter
  • Adjustment Controls HF Level Switch (+3dB / 0dB / -3dB) Boundary Compensation Switch
  • Overall Diameter: (including grille) 309mm
  • Overall Depth: (including grille) 187 mm
  • Cut Out Diameter: 274mm
  • Mounting Depth: 181 mm
  • Fixing Type: 3 position Tri-Grip® dog leg fixings
  • Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant) Pre-Construction Bracket: CB10 (Light brown)
  • Weight: 3.74kg (8lb 4oz)
    • Cable connection: Gold plated 'push' type terminals
