MONITOR AUDIO IA200-2C AMPLIFIER

The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. As a Monitor Audio ‘Connect’ amplifier, it utilises the Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.

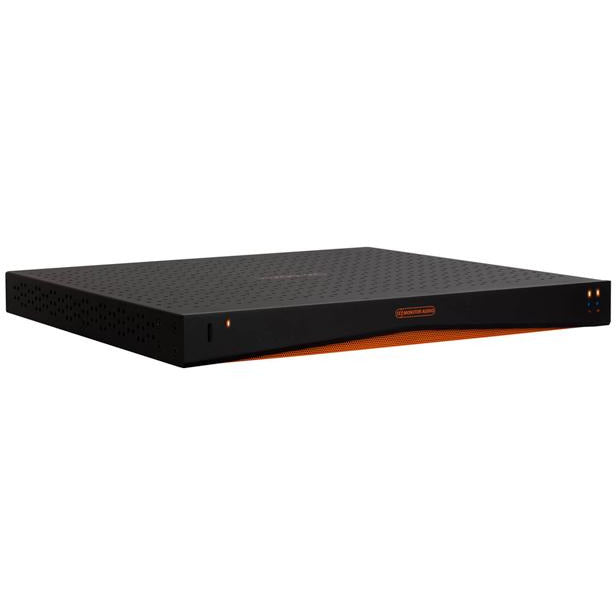

Monitor Audio IA200-2C amplifier



'Connect' IP Control: Yes

Channel Number: 2 (1 Stereo Pair)

Power (W / Channel) | 4 ohms: 200 W

Power (W / Channel) | 8 ohms: 150 W

Power (W / Channel) | Bridge (8 ohms): 470 W (1CH)

Power (W / Channel) | 70V: N/A

Input Impedance: 20 K ohms

Output Impedance (Loop RCA): 600 ohms

Input Sensitivity: 100 mV / 1 W, 1230 mV – Full power

Maximum Input Voltage: 2.9 V

Signal to Noise (SN:R): -100 dB (20 Hz – 20 kHz)

Frequency Response: 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz: 0.03%

Rack Height: 1U

Dimensions (Excluding Feet (H x W x D)): 42.4 x 438 x 427 mm

Dimensions (Including Feet (H x W x D)): 52.8 x 438 x 427 mm

Width (including rack brackets): 482 mm (19")

IP Communication: TCP/IP (RJ-45 10/100 Base T)

Mains Operating Voltage: 100 – 120 V @ 60 Hz.   220 – 240 V @ 50 Hz

Fuse Rating: 5 A (T5AL ~ 250VAC)

Standby Power Consumption: <0.5 W (green mode)

Networked Standby Power Consumption: <2 W

Weight: 5.3 kg (11 lb 10 oz)

Sold As: Single Unit
