MONITOR AUDIO IA60-12 AMPLIFIER

From the Monitor Audio line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.

This model offers Bus Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to successfully complete your project.

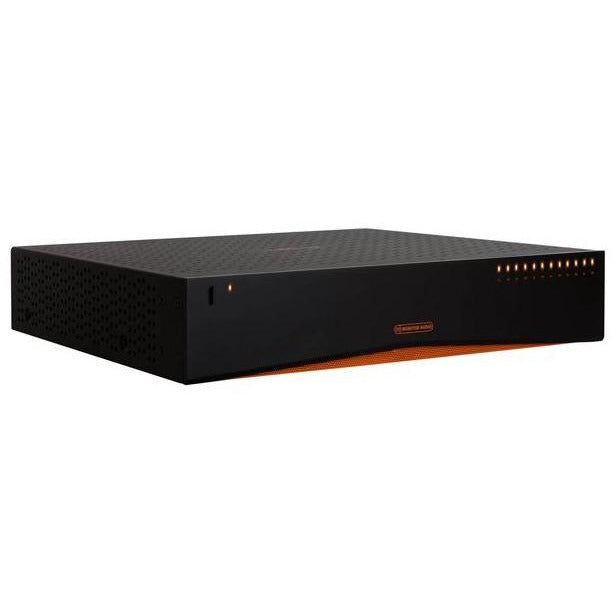

Monitor Audio IA60-12 amplifier



'Connect' IP Control: N/A

Channel Number: 12 (6 Stereo Pairs)

Power (W / Channel) | 4 ohms: 60 W

Power (W / Channel) | 8 ohms: 45 W

Power (W / Channel) | Bridge (8 ohms): 100 W (6CH)

Power (W / Channel) | 70V: N/A

Input Impedance
20 K ohms

Output Impedance (Loop RCA): 600 ohms

Input Sensitivity: 100 mV / 1 W, 700 mV – Full power

Maximum Input Voltage: 2.9 V

Signal to Noise (SN:R): -100 dB (20 Hz – 20 kHz)

Frequency Response: 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz: 0.03%

Rack Height: 2U

Dimensions (Excluding Feet (H x W x D)): 86.8 x 438 x 427 mm

Dimensions (Including Feet (H x W x D)): 97.2 x 438 x 427 mm

Width (including rack brackets): 482 mm (19")

IP Communication: N/A

Mains Operating Voltage: 100 –120 V @ 60 Hz.  220 – 240 V @ 50 Hz

Fuse Rating: 10 A (T10AL ~ 250VAC)

Standby Power Consumption: <0.5 W (green mode)

Networked Standby Power Consumption: N/A

Weight: 7.34 kg (16 lb 2 oz)

Sold As: Single Unit
