Monitor Audio IA800-2C Amplifier

In Stock, Available Now




The IA800-2C is part of the Monitor Audio Connect Amplifiers division, utilising the Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser.

Fluently delivering up to 800 watts per channel, this two-channel powerhouse can directly drive 70V line speakers without a line matching transformer. Each channel has a volume adjustment on the front panel and the 2U high case fits into most racks whilst delivering 93% energy efficiency. And even though its likely to live its live on the rack, our design team have produced an especially handsome Installation Amplifier. Ready and waiting for any project.

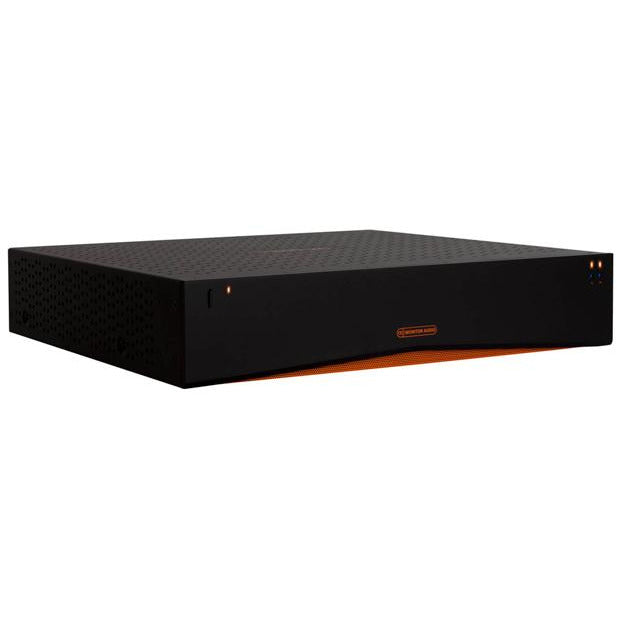

Monitor Audio IA800-2C amplifier

'Connect' IP Control: Yes

Channel Number: 8 (4 Stereo Pairs)

Power (W / Channel) | 4 ohms: 150 W

Power (W / Channel) | 8 ohms: 140 W

Power (W / Channel) | Bridge (8 ohms): 300 W (4CH)

Power (W / Channel) | 70V: N/A

Input Impedance: 20 K ohms

Output Impedance (Loop RCA): 600 ohms

Input Sensitivity: 100 mV / 1 W, 1140 mV – Full power

Maximum Input Voltage: 2.9 V

Signal to Noise (SN:R): -100 dB (20 Hz – 20 kHz)

Frequency Response: 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz: 0.03%

Rack Height: 1U

Dimensions (Excluding Feet (H x W x D)): 42.4 x 438 x 427 mm

Dimensions (Including Feet (H x W x D)): 52.8 x 438 x 427 mm

Width (including rack brackets): 482 mm (19")

IP Communication: TCP/IP (RJ-45 10/100 Base T)

Mains Operating Voltage: 100 –120 V @ 60 Hz.   220 – 240 V @ 50 Hz

Fuse Rating: 10 A (T10AL ~ 250VAC)

Standby Power Consumption: <0.5 W (green mode)

Networked Standby Power Consumption: <2 W

Weight: 7.45 kg (16 lb 6 oz)

Sold As: Single Unit
