Accuphase DG-68 Digital Voicing Equaliser

$23,000.00

View All Accuphase

Sold Out


Details

Specifications

Digital Voicing Equaliser

In 1997, Accuphase introduced a product which revolutionized the concept of the graphic equalizer and made headlines in the audio world: the Digital Voicing Equalizer DG-28. Follow-up models in the DG series brought further improvements which garnered more praise and led to the recognition of the Voicing Equalizer as an indispensible component of the ultimate audio system.

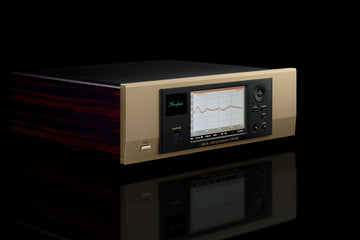

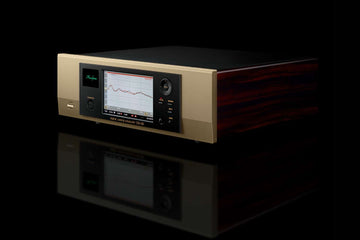

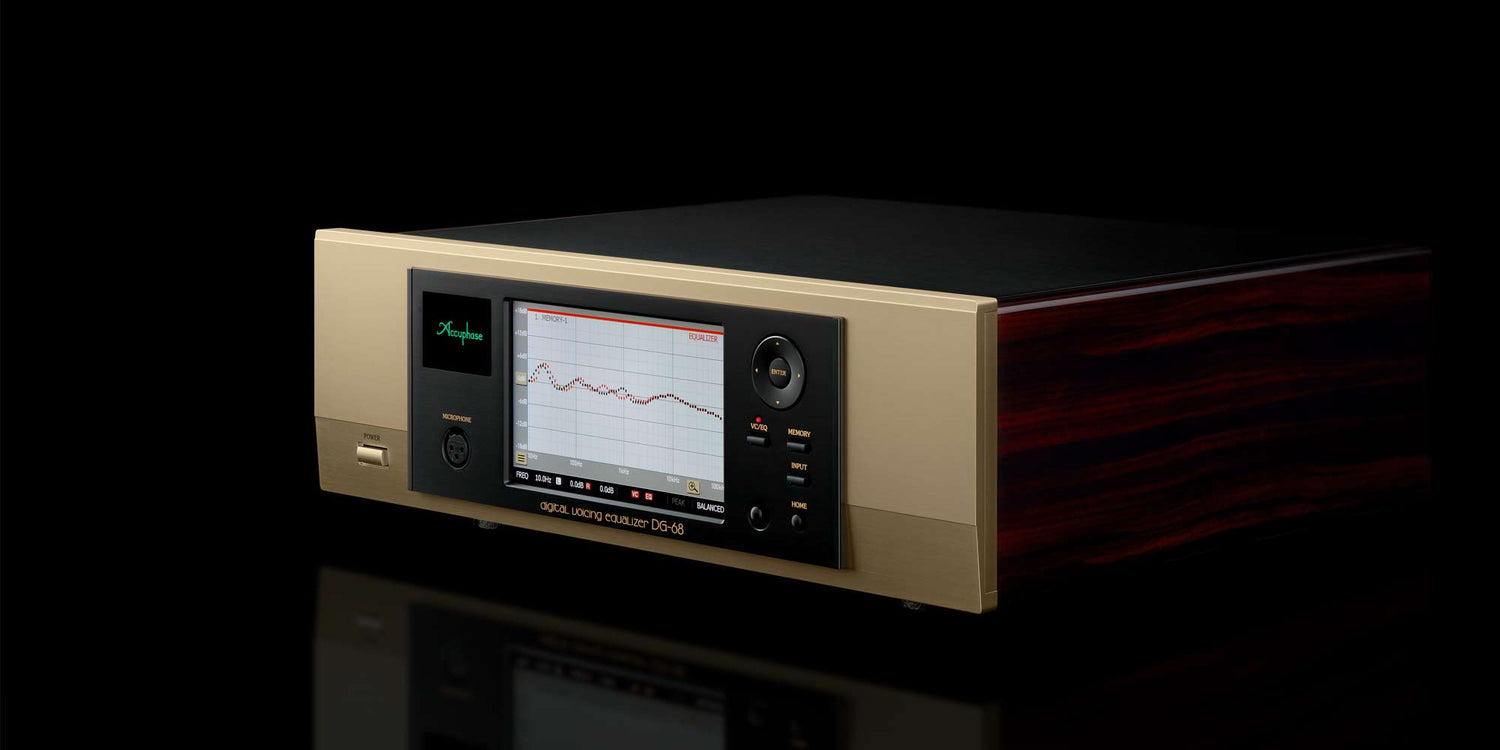

The high-resolution, high-definition color IPS LCD panel allows the use of a stylus pen to directly draw any desired response curve. Intuitive operation and a full complement of sophisticated display functions make sound field compensation swift and easy while giving the user full control. Setting data as well as display screenshots can be saved on a USB flash drive for quick recall at any time. The DG-68 brings out unknown possibilities in music reproduction by controlling the sound field and tone exactly in accordance with the user's preferences.

Accuphase-DG-68-Digital-Voicing-Equaliser

Features

  • Fully digital signal processing Voicing Equalizer
  • Separate sound field compensation and equalizer functions
  • Smooth Voicing feature prevents excessive correction based on the low frequency reproduction capability of the speakers
  • High-speed 40-bit floating point DSP
  • High-accuracy A / D and D / A conversion circuitry
  • Intuitive and highly readable menu screens make operation easy
  • Freely programmable 30 pattern memory

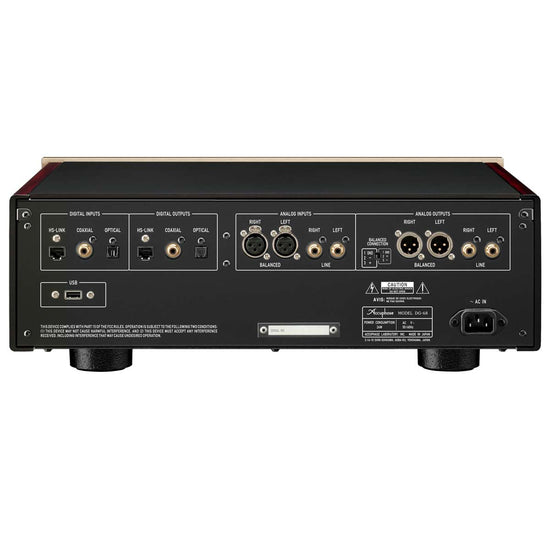

  • Analog and digital inputs and outputs provided as standard
  • Equaliser: 1/6 Octave, 80 bands, IIR filter
  • Frequency Response: 0.5 to 50,000Hz
  • Gain: +12 to -90dB Variable
  • Analog input maximum level: Gain 0dB - 1.78V
  • Power Requirements: AC 120 V/230 V, 50/60 Hz (Voltage as indicated on rear panel)
  • Power Consumption: 24W
  • Maximum Dimensions: Width 465 mm, Height 161 mm, Depth 396 mm
  • Mass: 14.9 kg net, 22 kg in shipping carton
