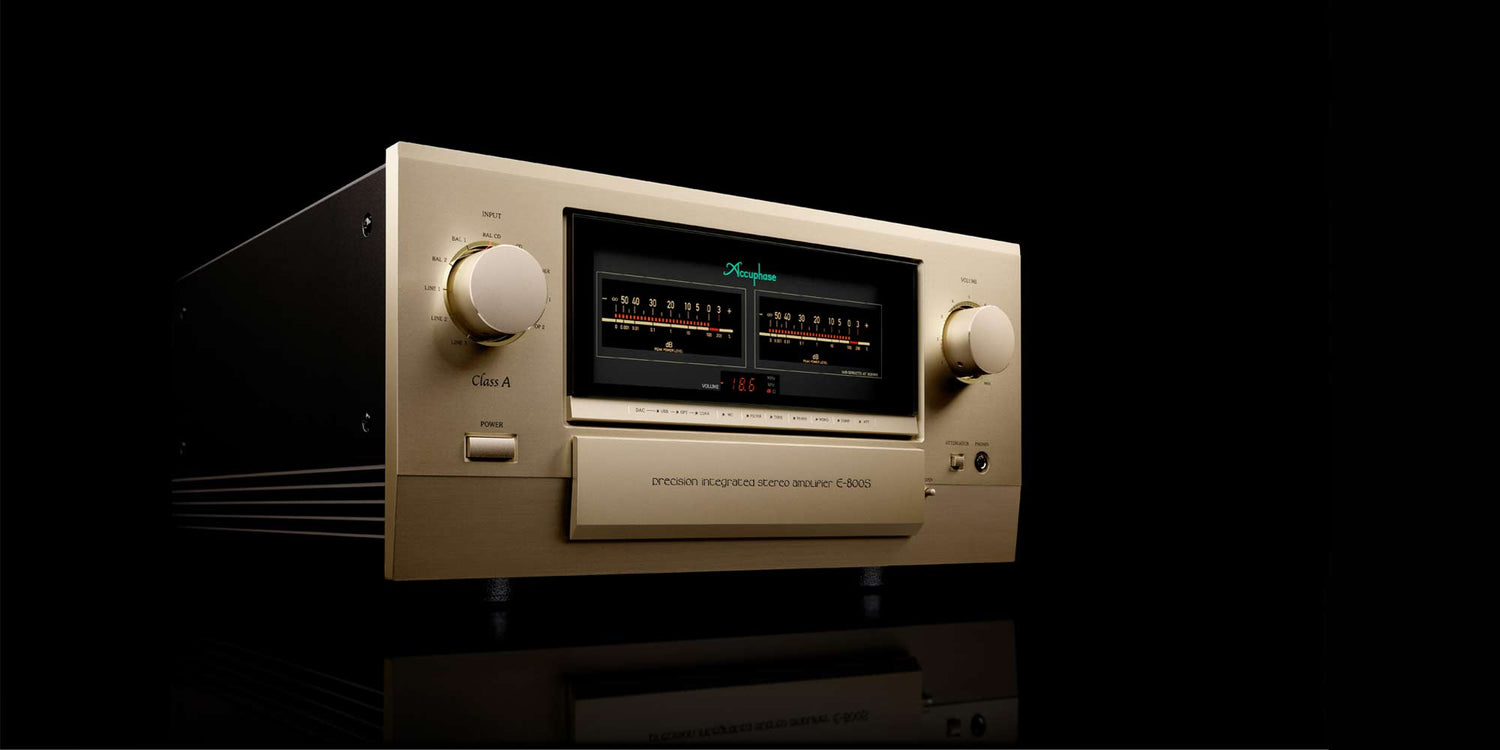

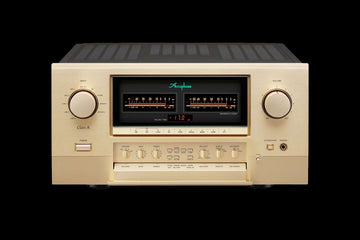

Accuphase E-800S Class-A Integrated Amplifier

Name: Accuphase E-800S Class-A Integrated Amplifier
Brand: Accuphase
SKU: ACCE800S
Availability: InStock

Product variants

At the pinnacle of Class-A amplification, the Accuphase E-800S redefines integrated amplifiers with its perfect blend of performance, reliability, and craftsmanship. Every detail has been carefully engineered, making this amplifier not just a piece of audio equipment but a long-term investment for discerning audiophiles. Built to last decades, the E-800S is designed to deliver uncompromised sound quality, standing tall against more complex pre-power combinations—at a fraction of the cost.

Specifications

Continuous Average Output Power (both channels driven, 20-20,000 Hz): 300 watts per channel into 1 ohm, 200 watts per channel into 2 ohms, 100 watts per channel into 4 ohms, 50 watts per channel into 8 ohms.

Intermodulation Distortion: 0.01%g

Signal to noise ratio: 105dB

Frequency Response: HIGH LEVEL INPUT/POWER INPUT 20 - 20,000 Hz +0, -0.5 dB (for rated continuous average output), 3 - 150,000 Hz +0, -3.0 dB (for 1 watt output)

Damping Factor: 1000 (For rated output with 8-ohm load, 50 Hz)

Output Voltage, Output Impedance (at rated continuous average output): PRE OUTPUT: 1.23 V, 50 ohms

Gain: HIGH LEVEL INPUT →　PRE OUTPUT : 18 dB, POWER INPUT →　OUTPUT: 28 dB

Tone Controls Turnover frequency and adjustment range: BASS: 300 Hz ±10 dB (50 Hz), TREBLE: 3 kHz ±10 dB (20 kHz)

Loudness Compensation: +6 dB (100 Hz)

Attenuator: －20 dB

Power Level Meters: Logarithmic compression, peak reading meters, output dB/% scale

Load Impedance: 4 - 16 ohms

Stereo Headphones: Suitable impedance: 8 ohms or higher

Power Requirements: AC 120 V/220 V/230 V 50/60 Hz (Voltage as indicated on rear panel)

Power Consumption: 180 watts idle 390 watts in accordance with IEC 60065

Maximum Dimensions: Width 465 mm x Height 239 mm x Depth 502 mm

Mass: 35.7 kg net

The E-800S is our flagship model that incorporates the full breadth of Accuphase's accumulated knowledge on integrated amplifiers.

Accuphase

Pure Class-A Power and Balanced Design

From input to output, the E-800S features a fully balanced signal path, ensuring maximum common-mode noise rejection and signal purity. At its core is Accuphase’s Balanced AAVA (Accuphase Analog Vari-gain Amplifier) volume control system, which replaces traditional potentiometers to preserve sonic detail and minimize distortion throughout the listening range.

The power amplification stage is built around an instrumentation amplifier architecture with six-fold parallel push-pull MOS-FETs operating in pure Class-A. This results in controlled, linear power delivery that drives virtually any loudspeaker with authority:

Robust Power Supply & Speaker Control

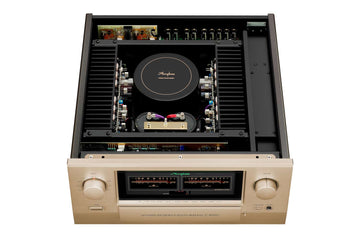

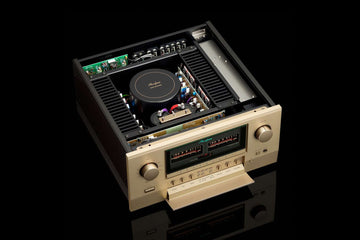

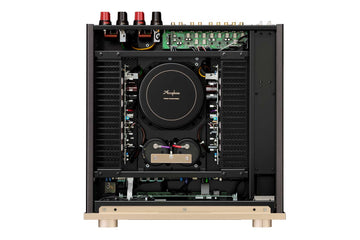

A massive high-efficiency toroidal transformer and large filter capacitors form a power supply that remains rock-steady even under demanding loads, while a damping factor of 1000 delivers exceptionally tight control over speaker drivers. Advanced MOS-FET protection circuitry and integrated speaker output protection guard against faults without compromising performance.

Connectivity & Expandability

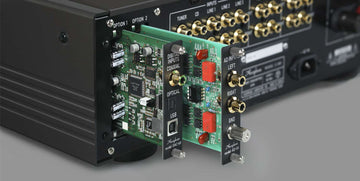

With three balanced XLR inputs plus multiple line inputs, the E-800S integrates seamlessly with high-end sources. Two expansion slots support optional Accuphase boards (DAC or analogue phono), offering future upgrades without adding separate components.

At Soundline, we hold Accuphase products in the highest regard, and the E-800S is no exception. Renowned for legendary build quality, Accuphase amplifiers undergo meticulous testing and design processes that ensure they perform at their peak for decades. Their conservative power ratings often surpass what’s on paper, delivering more power and control than promised.

For those who value pure Class-A sound without the complexity of separate components, the E-800S offers unparalleled value. It provides the uber-high-end performance often seen in much pricier setups, making it an exceptional choice for serious music lovers.

Contact us to learn more or to request a demonstration of the E-800S in one of our showrooms.
