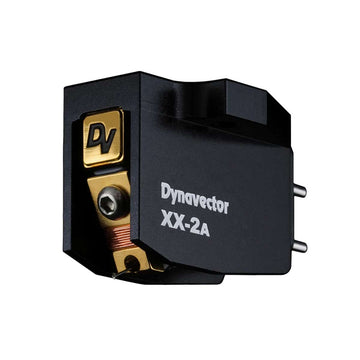

Dynavector DV XX2-A MC Phono Cartridge

Name: Dynavector DV XX2-A MC Phono Cartridge
Brand: Dynavector Japan
Price: 3399.00 NZD
Availability: InStock

$3,399.00

Sold out

Product variants

Low Output Moving Coil Phono Cartridge

Experience the natural and dynamic sound of the Dynavector XX-2A cartridge, where an exceptional vibration system harmonises seamlessly with an optimised magnetic circuit.

Quantity

Free Shipping for orders $500+

Specifications

Type: Low output moving coil cartridge with Alnico magnet and Flux damper

Output Voltage: 0.28mV (at 1KHz, 5cm/sec.)

Channel Separation: 30 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 - 20,000Hz (± 1dB)

Compliance: 10 x 10-6 cm/dyn

Tracking force: 1.8 - 2.2 grams

Impedance: R=6 ohms

Recommended load resistance: > 30 ohms

Cantilever: 6mm length 0.3 mm dia. solid boron

Stylus: PF Line contact shape, stylus radius: 7 x 30 micron

Weight: 8.9 grams

Special Annealing Magnetic Circuit

To ensure optimal output, it is imperative that the magnetic flux maintains high density and stability. However, the processing of metal parts often distorts the crystal structure at the atomic level, leading to a loss of magnetic permeability.

Magnetic annealing, a process of heating and cooling processed parts, is crucial for restoring the distorted metal crystal structure and regenerating magnetic permeability. Dynavector have focused on finding the best magnetic annealing process, including temperature, environment, duration, and heating and cooling rates. This meticulous approach has enabled them to unleash the full potential of pure iron's unique magnetic performance.

The new magnetic circuit has significantly enhanced sound quality, delivering unrivalled resolution, smooth wide-range expression, and expansive sound field. Experience the natural and dynamic sound of the Dynavector XX-2A cartridge, where an exceptional vibration system harmonises seamlessly with an optimised magnetic circuit.

Low-Output MC Cartridge

With an output voltage of 0.28mV, the XX-2A conforms to the general level for MC cartridges, making it compatible with various amplifiers and transformers including the SUP-200. With a recommended load impedance of more than 30 ohms that ensures suitability for different load settings, including 47k ohms (phono stage input).

Solid Boron Cantilever

The XX-2A is equipped with a 6mm length solid boron cantilever, coupled with a PathFinder (PF) line contact stylus, creating a lightweight and rigid vibration system for enhanced playback accuracy.

Free Turntable setup

We carefully set up every turntable and cartridge we sell. So if you're new to turntables or have decades of experience, you know you'll be getting the most enjoyment from your system. You can be safe in the knowledge that you can take your turntable home, plug it straight in and start enjoying good music without any worry of something being setup incorrectly.
