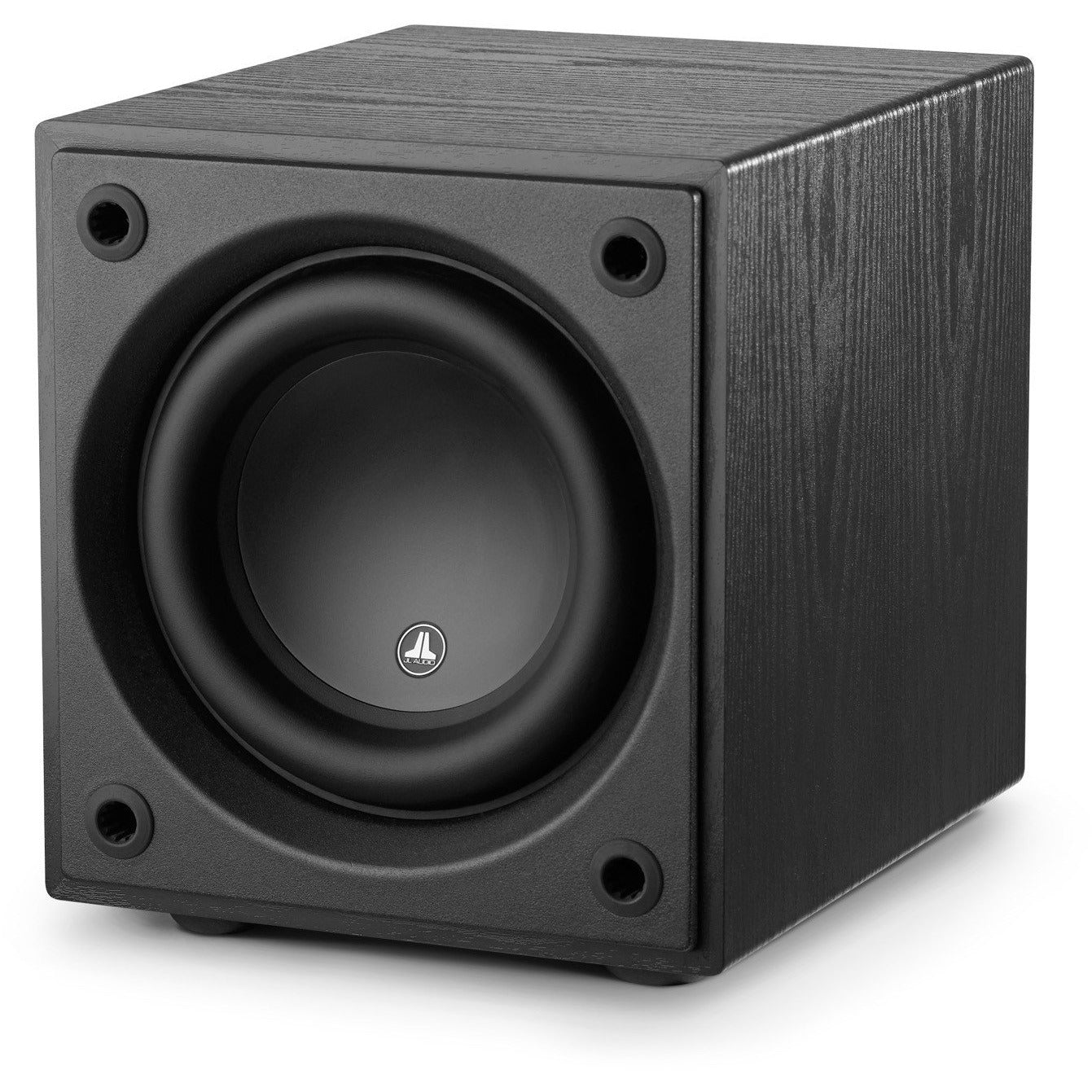

Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

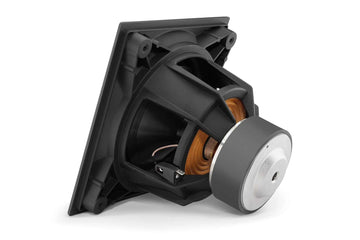

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.
With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.
To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
Enclosure Type: Sealed
Enclosure Finish: Black Ash
Frequency Response: (Anechoic) 31 - 112 Hz (±1.5dB)
-3 dB at 29 Hz / 119 Hz
-10 dB at 21 Hz / 143 Hz
Effective Piston Area (Sd): 32.18 sq in / 0.0208 sq m
Effective Displacement: 80 cu in / 1.3 L
Amplifier Power: 500 W RMS short-term
Power Mode: Automatic (Signal-Sensing)
Light Modes: N/A
Width (W): 10 in / 254 mm
Height (H): 11.37 in / 289 mm
Depth (D): 13.23 in / 336 mm
Net Weight: 26.4 lb / 12 kg 26.4 lb / 12 kg
So in addition to its pretty looks and capable controls, the Dominion d108 sub is astonishingly good in output. Played unseen, I might have thought it was subwoofer with a 12in driver and a solid amp. Perfect for when space is tight. more...
The Dominion d108 could be part of the ultimate 2.1-channel system for the common audiophile. Given the level of performance it was able to muster in my system, and the fact that it’s the smallest, least expensive subwoofer JL Audio makes, I worry for the competition. more...
