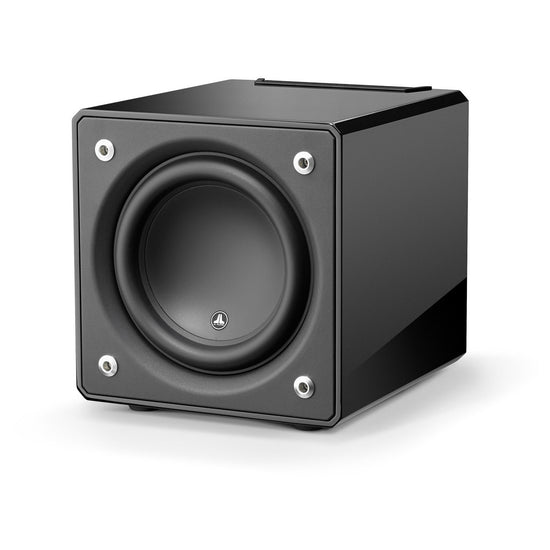

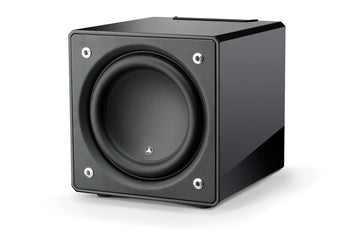

Powered Subwoofer with 12-inch Subwoofer Driver, 1500 watts
The E-Sub powered subwoofers apply a series of our key technologies to deliver exceptional sound quality, power and value in a wide range of demanding applications.
Any great powered subwoofer system must start with an exceptional subwoofer driver. The E-Sub drivers offer impressive, low-distortion excursion envelopes capable of handling the most demanding program material, or the most delicate. To accomplish this, JL Audio's exclusive DMA technology is applied to shape, control and stabilize the drivers' motor strength, ensuring linear behavior over a very long excursion range. Unlike typical steady-state modeling systems, our approach takes into account the dynamic shifts created by current flow and back EMF under real power conditions, with real program material. The payoff offered by DMA optimization is a driver that more faithfully tracks its input signal at all listening levels, leading to superior bass definition and dynamics

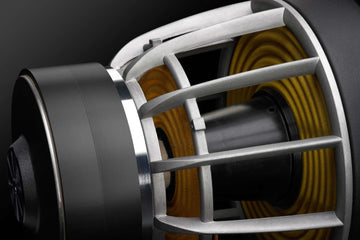

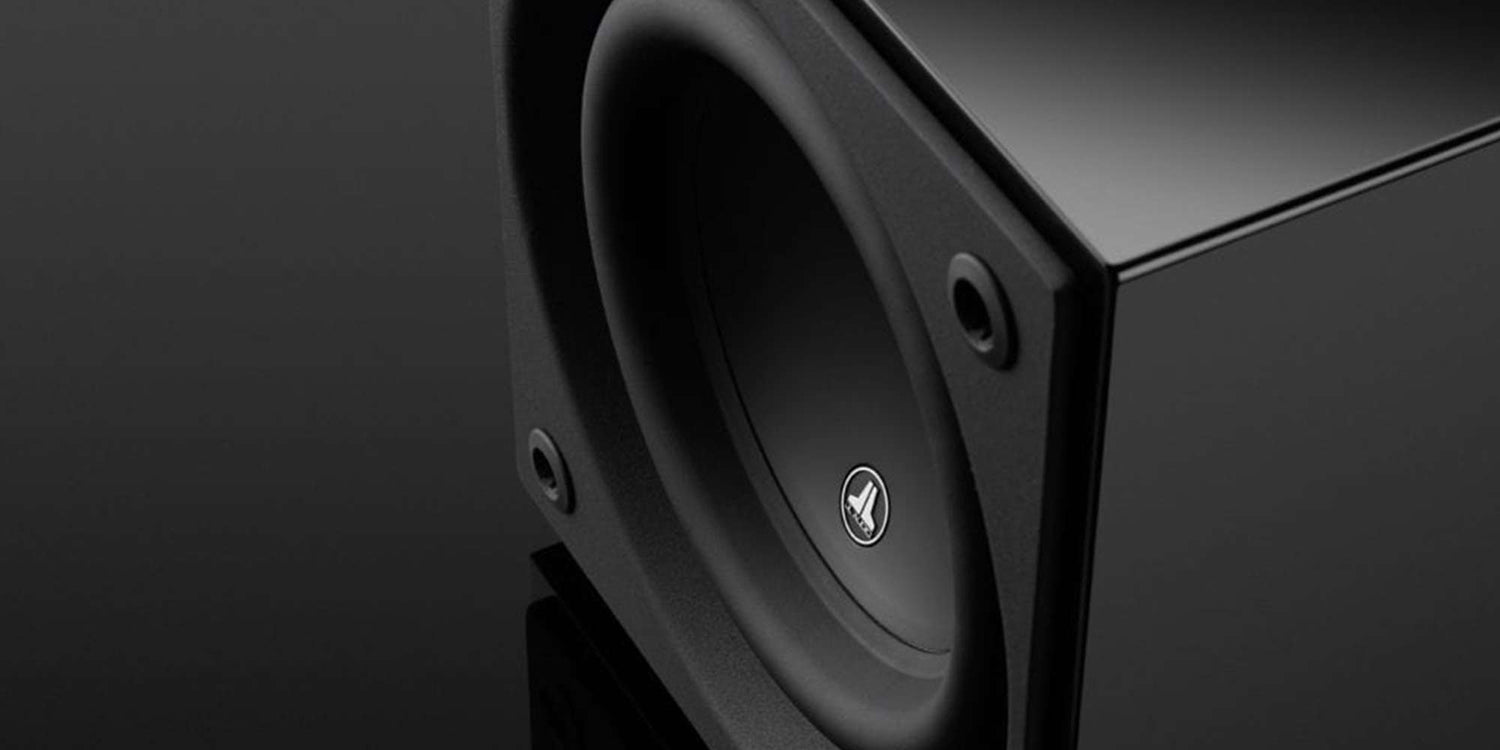

The extreme mounting depth of the E-Sub driver is very deliberate. It permits wide gaps to exist between the three suspension elements (the rubber surround and the dual spiders), imparting exceptional mechanical stability over the driver's full excursion range. This further improves linearity, reduces distortion and enhances long-term reliability. In a stroke of engineering elegance, the steel front mounting flange of the E-Sub driver also forms the entire front baffle of the finished product, while the back-plate of the driver is threaded and bolted to the rear wall of its enclosure for support.
To power these innovative drivers, we engineered a completely new switching amplifier with a regulated, switching power supply. This approach helps make the amplifier more compact, lightweight and efficient, while still delivering ample, clean power to fully exercise the E-Sub driver's performance envelope.
The amplifier module also incorporates a studio-grade signal-processing section, which is controlled from a panel on the top of the subwoofer cabinet. We think you will find making adjustments on an E-Sub a much more enjoyable experience than adjusting the rear-mounted controls found on most powered subwoofers. An attractive cover is also included to hide and protect the controls during normal use.

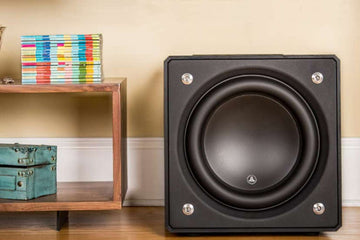

The feature set has been designed to allow the use of E-Subs in a wide range of applications, from full home theater systems to dedicated two-channel music systems, to desktop audio workstations.
Analog inputs are provided for unbalanced line-level signals or speaker level signals. Using a rear panel switch, the line level inputs can be configured as grounded or isolated, which is very useful in combating ground-related noise problems.
The built-in, active crossover is a true two-way, 4th order Linkwitz-Riley design, with a low-pass filter feeding the subwoofer's amplifier and a high-pass filtered signal exiting through a pair of line outputs. When the on-board crossover is defeated, as is typical in a home theater installation, the line outputs deliver a pass-through signal that permits multiple E-Subs to be interconnected in a ‘daisy-chain' arrangement. Switchable polarity and a fully variable phase control round out the signal processing section. All signal processing is performed in the analog domain, ensuring very low latency in critical applications.
Every E-Sub is precision-built in JL Audio's U.S. factory and individually performance-verified and tested to deliver years of listening enjoyment in your home audio or home theater system.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Vented Reinforcement Collar
JL Audio's patented Vented Reinforcement Collar (VRC®) improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.
Floating Cone Attach Method - FCAM™
This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Engineered Lead-Wire System
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
"At the end of the day, the E-Sub e112 is an output beast with fidelity to match. That’s worth the asking price in most any system. In fact, its performance makes the e112 the no-brainer buy of the year."- soundstagehifi.com read the full review here.
- Enclosure Type: Sealed
- Frequency Response (Anechoic): 22 - 118 Hz (±1.5dB), -3 dB at 21 Hz / 120 Hz, -10 dB at 17 Hz / 153 Hz
- Effective Piston Area (Sd): 84.4 sq in / 0.0545 sq m
- Effective Displacement: 235 cu in / 3.9 L
- Amplifier Power: 1500 W RMS (short-term)
- Dimensions: Width 412 mm, Height 394 mm, Depth 467 mm
- Net Weight: 33.3 kg
