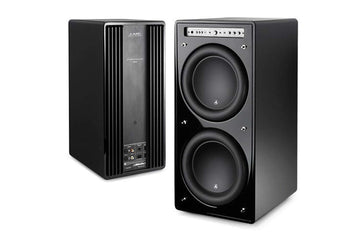

JL Audio Fathom f212 Subwoofer

$13,900.00

Free Delivery in NZ
for orders over $100 or $5 under $100.

Product Description

Powered Subwoofer with Dual 12-inch Subwoofer Drivers, 3000 watts

The JL Audio f212 is the ultimate expression of the Fathom formula. It is ideal for larger spaces thanks to its higher efficiency and higher power output. The combination of dual ultra-long throw W7 12-inch drivers and a very powerful switching amplifier give it jaw-dropping performance capabilities at any listening level.

Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f212 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Automatic Room Optimization (A.R.O.) system. A calibrated microphone is included for the A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.

Features

Automatic Room Optimization

Insanely powerful H.O. (High Output) systems deliver very high SPL while retaining excellent sound quality.

A wise man named Murphy long ago prescribed that a subwoofer will generally sound best in the most impractical spot in the room... a fact that home theater professionals wrestle with constantly. Subwoofer placement almost always involves a compromise between sonic performance, practicality and aesthetics.

To face this dilemma head on, JL Audio subwoofer systems incorporate a clever piece of technology called Automatic Room Optimization (A.R.O.).

Dynamic Motor Analysis - DMA Optimized Motor

JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

W-Cone

The W-Cone is a unit-body cone assembly that delivers astonishing cone stiffness with minimal mass. The shape also provides superb torsional rigidity, which is critical to maintaining voice coil alignment at the suspension limits.

Elevated Frame Cooling

JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Floating Cone Attach Method - FCAM™

This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

OverRoll™ Surround

By utilizing space wasted in conventional speakers, this ground-breaking innovation controls the W7's massive excursion without sacrificing precious cone area.



Radially Cross-Drilled Pole-Piece

This innovative venting system greatly enhances thermal dissipation and power handling by directing air flow onto the voice coil former, working in conjunction with the Elevated Frame cooling technology to effectively remove heat from the voice coil. This improves power handling and reduces power compression effects, leading to more linear performance.

Engineered Lead-Wire System

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

"JL Audio’s Fathom f212 is more than just one hell of a subwoofer—it’s one hell of an experience." - Soundandvision.com read the full review here.

Specifications

  • Enclosure Type: Sealed
  • Enclosure Finish: Black Gloss
  • Frequency Response (Anechoic): 20 - 97 Hz (±1.5dB) -3 dB at 19 Hz / 110 Hz -10 dB at 15 Hz / 157 Hz
  • Effective Piston Area (Sd): 168 sq in / 0.1084 sq m
  • Effective Displacement: 574 cu in / 9.4 L
  • Amplifier Power: 3000 W RMS (short-term)
  • Dimensions:379 mm x 812 mm x 518 mm (HWD)
  • Net Weight: 100.0 kg
