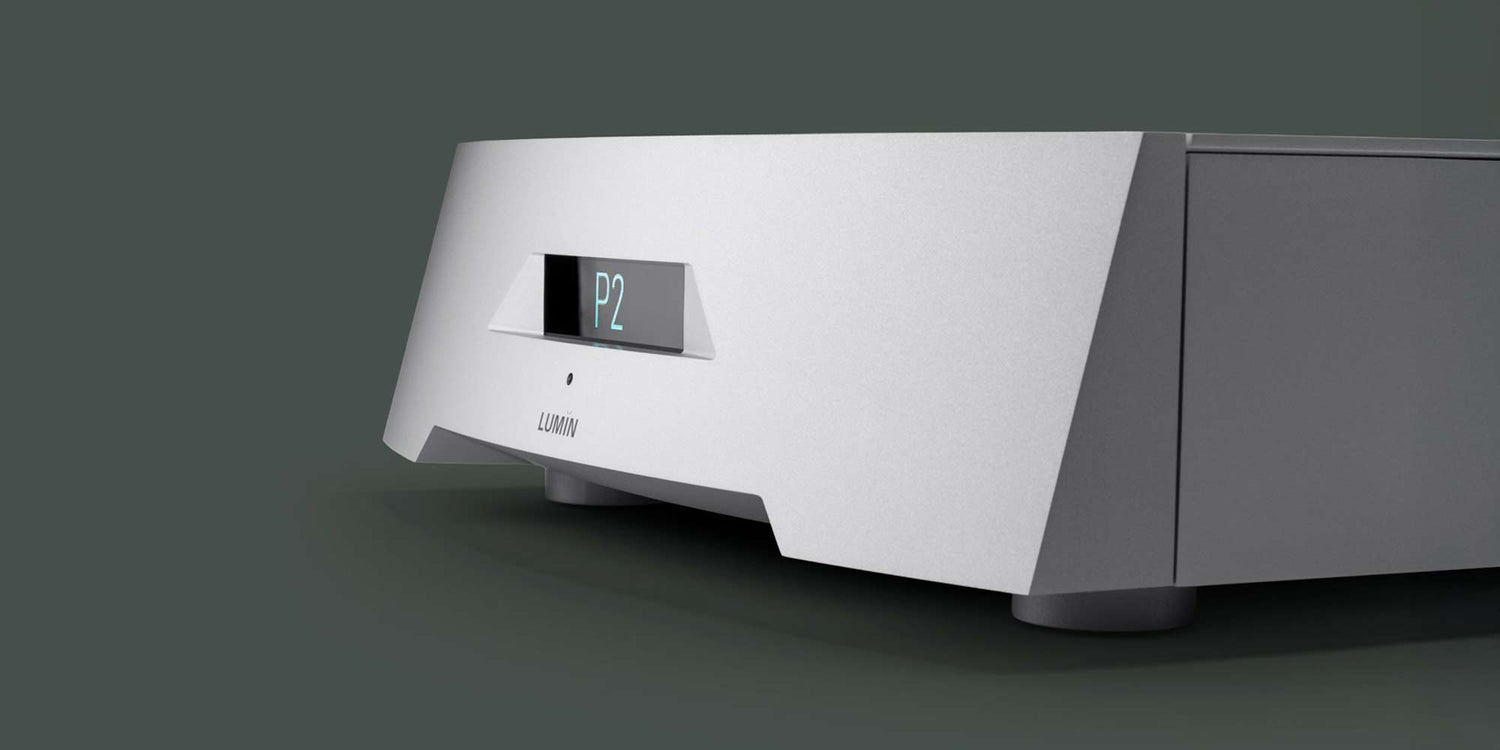

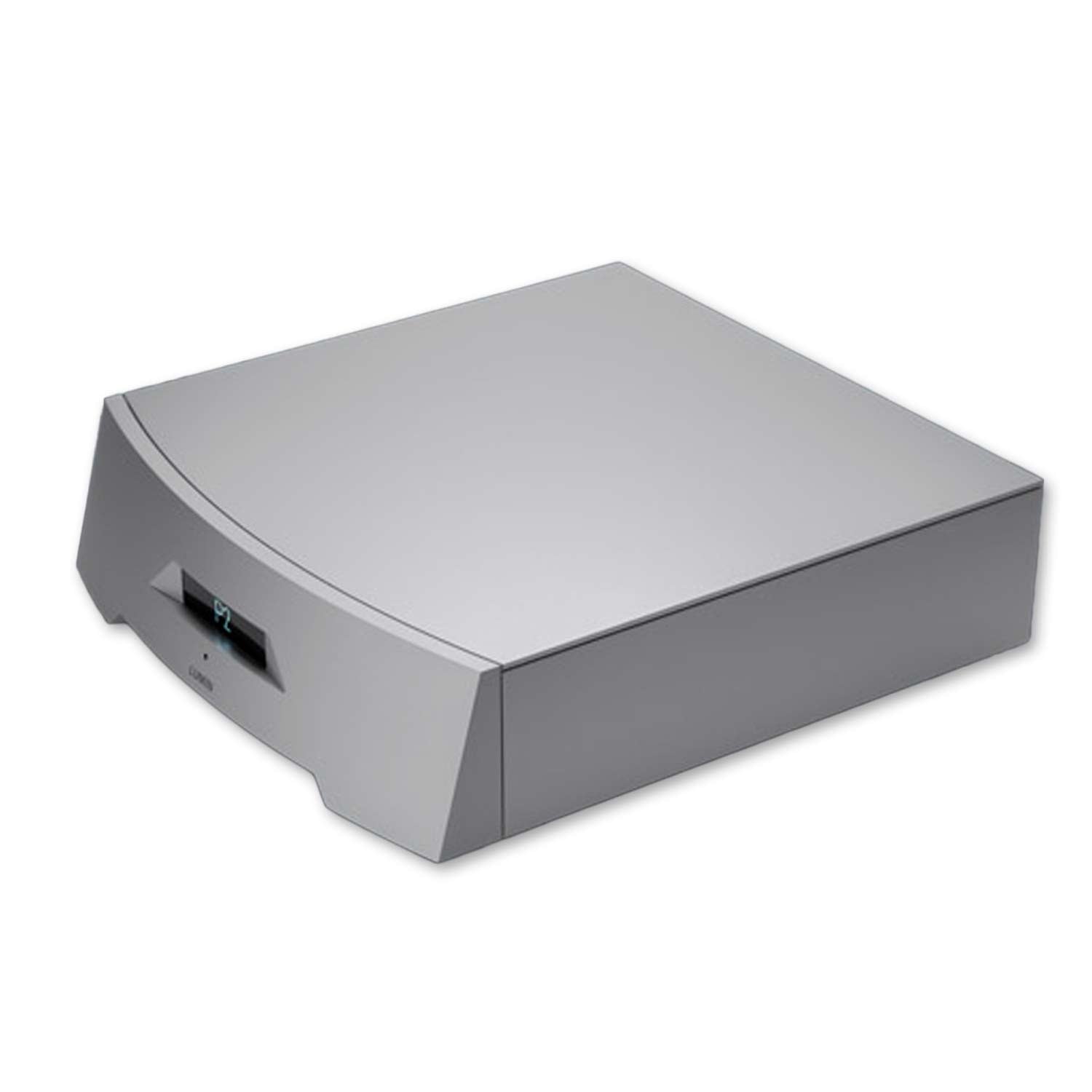

LUMIN P2 Streaming Network Hub

$21,000.00

$21,000.00 ~~$19,500.00~~

Sold out

Colour: Silver

Silver

Black

Product variants

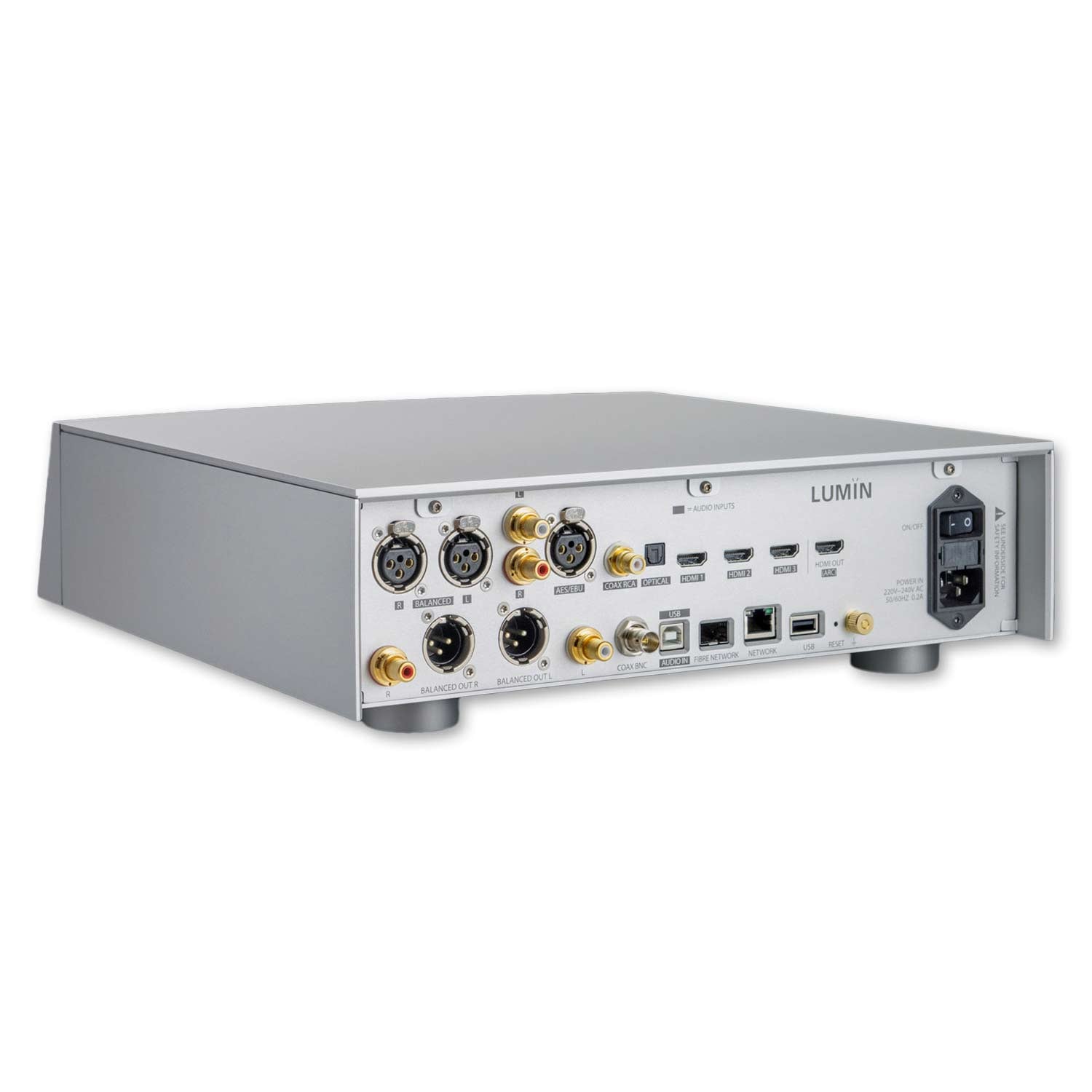

The LUMIN P2 is designed as the central control point for your entire system. With nine digital and analogue inputs — including USB, AES/EBU, SPDIF, balanced and unbalanced analogue connections, and HDMI with 4K passthrough and ARC — it can accommodate everything from traditional hi-fi sources to televisions and media players.

Ask a question

Specifications

NETWORK PLAYBACK:
Up to DSD512
Up to 384 kHz, 16–32-bit, Stereo
MQA Full Decoding

UPSAMPLING RATES & BIT DEPTHS:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files

DIGITAL INPUT:
USB:
USB Audio Class 2 Compatible
WINDOWS 10 (Release 1703 or above) / Mac OSX or above
DoP 128 support
PCM 44.1–384 kHz, 16 / 32-bit, Stereo
AES/OPTICAL/SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)
HDMI X3:
PCM 2.0 Audio support
4K Video Passthrough

DIGITAL OUTPUT:
USB:
Native DSD512 support
PCM 44.1–384 kHz, 16–32-bit, Stereo
BNC SPDIF:
PCM 44.1 kHz–192 kHz, 16–24-bit
DSD64 (DoP64, DSD over PCM)
HDMI X1:(HDMI PASSTHROUGH AND ARC SUPPORT)
PCM 2.0 Audio support
4K Video Passthrough
ARC (Audio Return Channel) support
ARC CEC volume and mute control

ANALOGUE INPUT:
RCA Unbalanced x1
XLR Balanced x1

ANALOG OUTPUT:
Dual ESS SABRE32 ES9038Pro DAC chips
Fully balanced layout with high-quality components
Output connectors coupled with dual LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA distribution

OPTICAL NETWORK:
Industry-standard Gigabit SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

POWER SUPPLY:
Internal dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator

PHYSICAL:

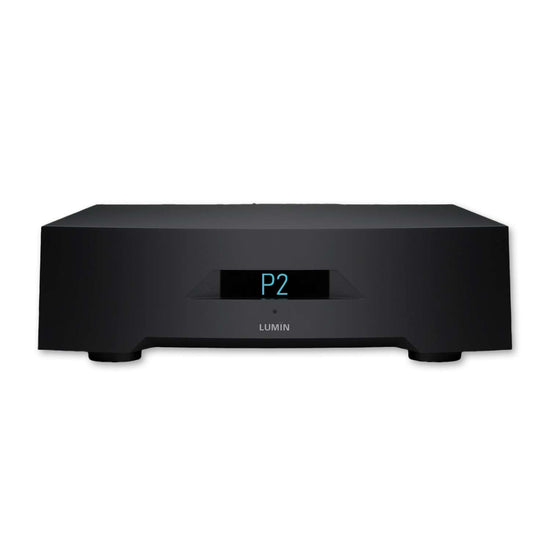

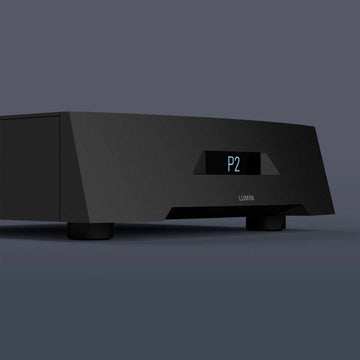

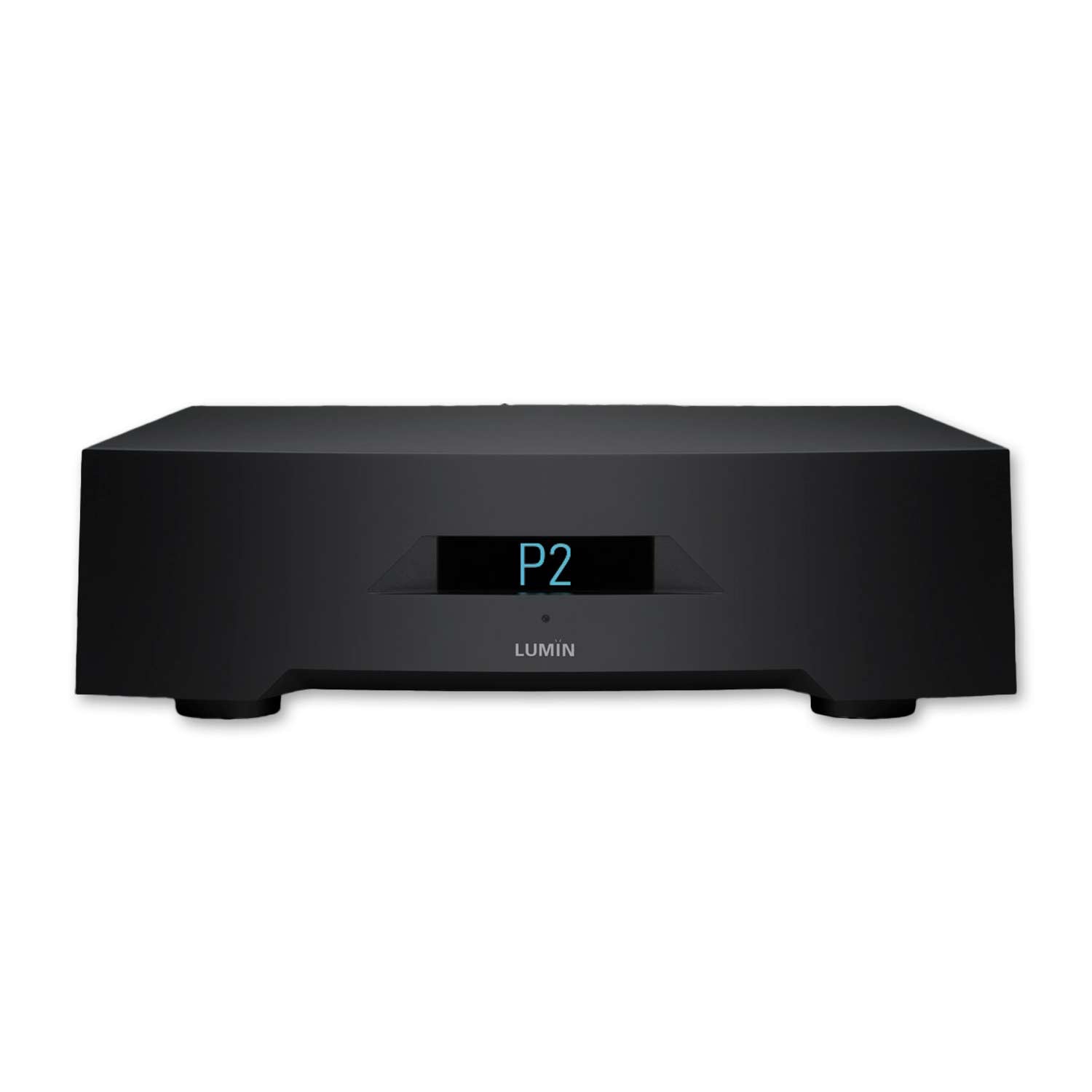

FINISH:
Black anodised aluminium
Raw aluminium
LUMIN (SOLID ALUMINIUM CHASSIS):
350mm (W), 380mm (D), 107mm (H), 12kg

LUMIN P2 serves as an uncompromised centrepiece for all audio sources.

LUMIN

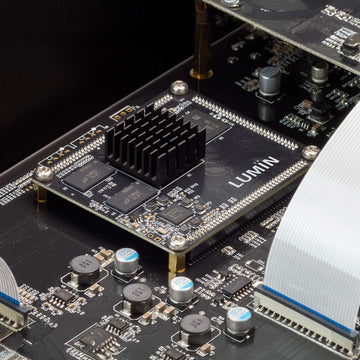

Reference-Grade Digital Architecture

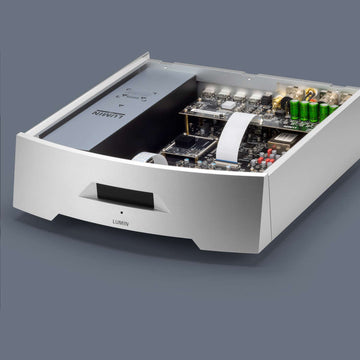

At the core of the LUMIN P2 is a powerful new processing platform paired with dual ESS SABRE ES9038PRO DAC chips operating in a true dual-mono configuration. By dedicating a flagship DAC to each channel, the P2 achieves exceptional resolution, dynamic range and channel separation.

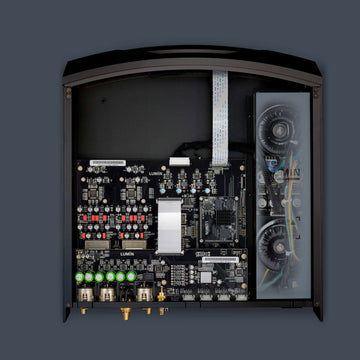

A dual femto clock system with FPGA distribution ensures precise timing and minimal jitter, while the integrated dual-toroidal linear power supply keeps the analogue and digital circuits electrically isolated for the cleanest possible signal path. Premium Lundahl output transformers further enhance signal integrity, preserving the musical detail and tonal richness expected from a reference-level component.

High-Resolution Streaming Performance

The LUMIN P2 supports playback of the most demanding high-resolution formats, including PCM up to 384kHz/32-bit and native DSD512. It integrates seamlessly with popular platforms such as Roon, Spotify Connect, TIDAL Connect and Qobuz, while the intuitive LUMIN control app for iOS and Android makes browsing and playback effortless.

For system integration, the P2 also features LUMIN’s Leedh Processing digital volume control — a lossless volume technology that allows the unit to drive a power amplifier directly without degrading resolution or dynamics.

Engineered for Ultimate System Integration

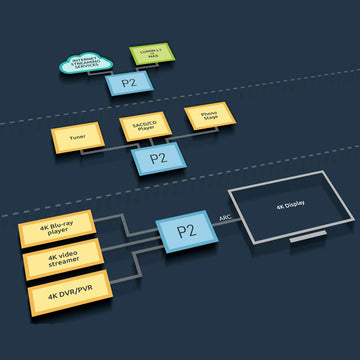

Beyond pure audio performance, the P2 is designed to integrate seamlessly into real-world systems. HDMI connectivity with ARC enables it to act as the audio centre for a television setup, while fibre networking support provides galvanic isolation from network noise for improved sonic purity.

With its solid aluminium chassis, sophisticated internal architecture and exceptional connectivity, the LUMIN P2 is more than just a streamer — it is a complete digital control centre for the modern audiophile system.
