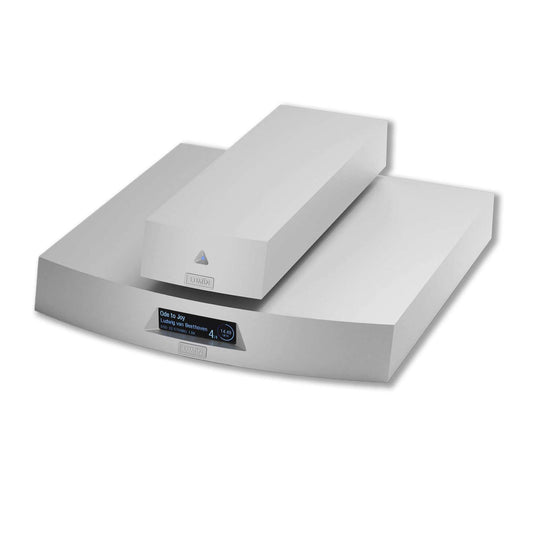

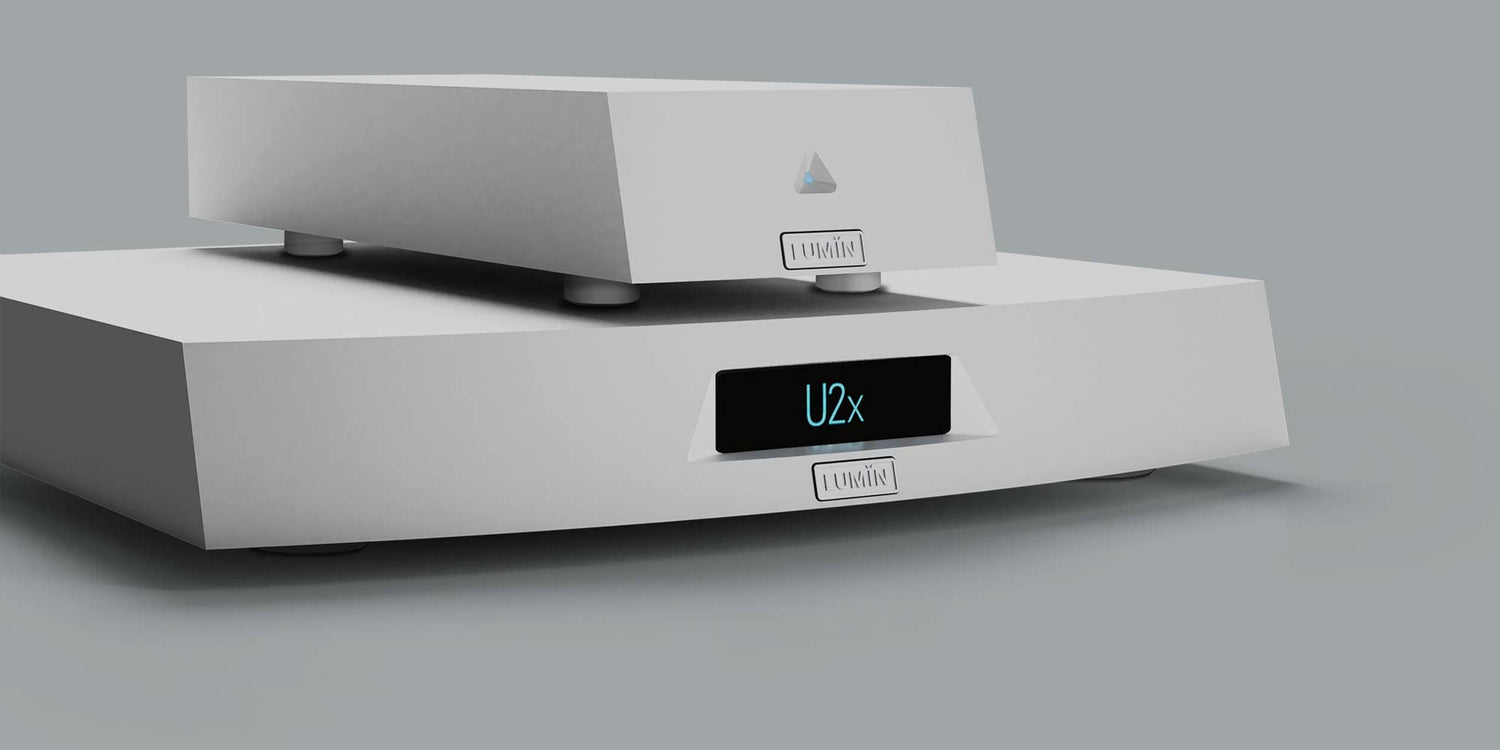

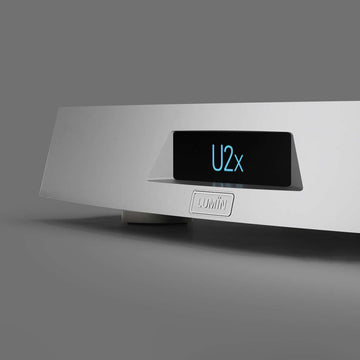

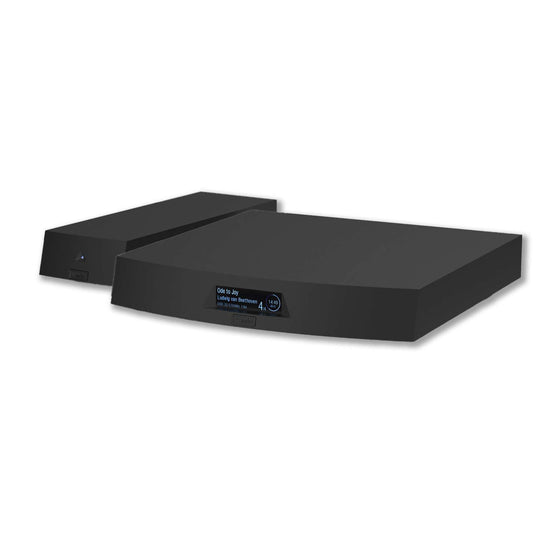

LUMIN U2x Music Streaming Transport

$17,000.00

Sold out

Colour: Silver

Silver

Black

Product variants

Equaling X1 in both status and build-quality, LUMIN U2X is a completely new flagship streaming transport designed to be the ultimate in digital output.

LUMIN U2X and its separate power supply use the indestructible single-billet CNC chassis construction methods from LUMIN X1 and focusses on transport-specific innovations like a newly developed isolated circuit architecture for the increasingly common USB digital output.

Also completely new for U2X are the most advanced clocking circuits to date which include new 10M clock input and output connections.

Quantity

Free Shipping for orders $500+

Ask a question

Specifications

DSD Support:
Up to DSD512 22.5MHz, 1-bit

PCM Support:
Up to 768kHz, 16–32-bit, Stereo

Upsampling rates & bit depths:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files

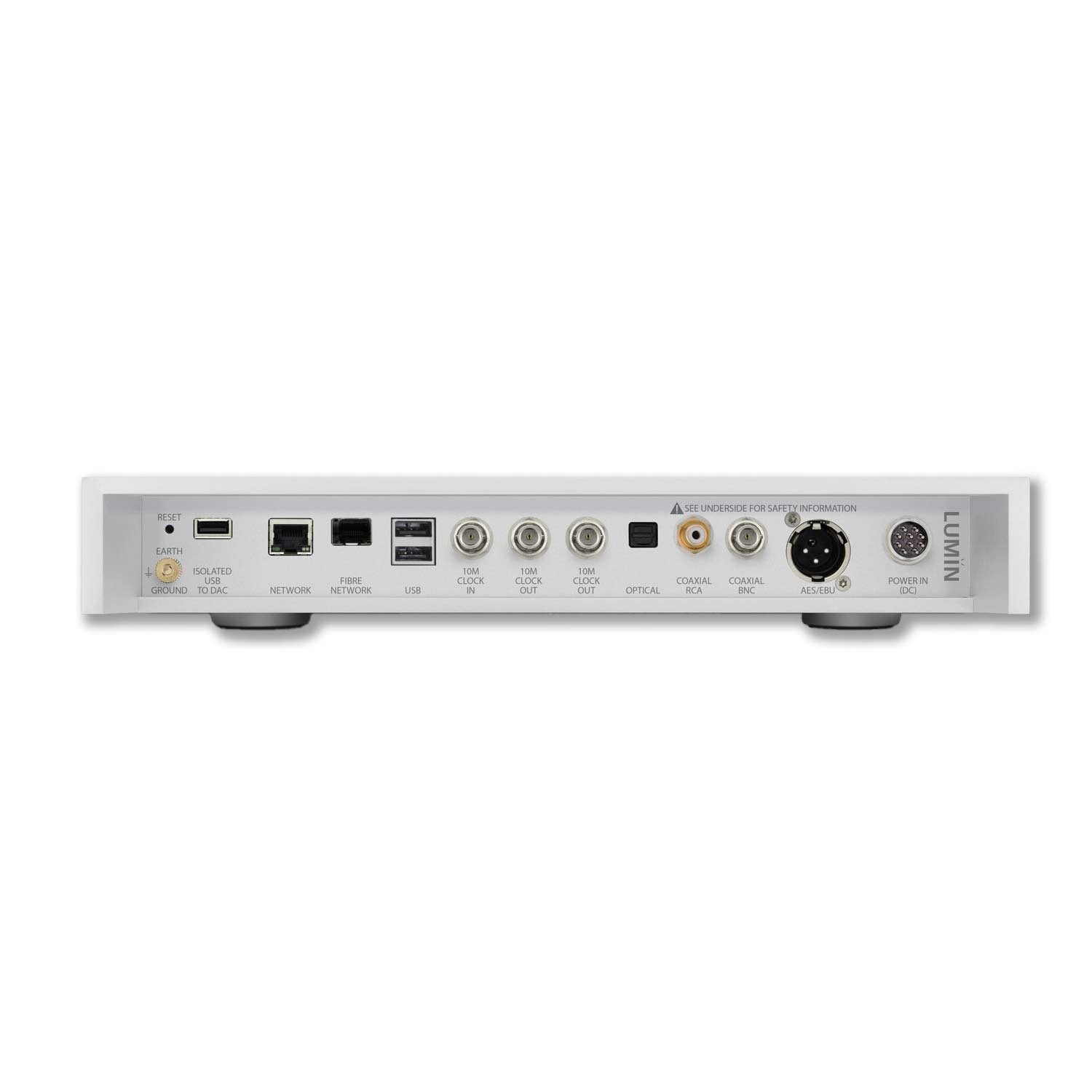

Digital Output Stage: Isolated USB:
Native DSD512 support: PCM 44.1–768kHz, 16–32-bit, Stereo
Optical, Coaxial RCA, Coaxial BNC & AES/EBU: PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

10M Clock I/O:
BNC Input: 50 Ohms on BNC
BNC Outputs: 50 Ohms on BNC

Optical Network:
Industry-standard SFP
1000Base-T Gigabit Ethernet
Adapter may be needed for your particular switch/cables
Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

Power Supply:
External solid billet cnc dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
9-pin Output Connector

Physical:
Finish:
Black anodised aluminium (with matching PSU)
Raw anodised aluminium (with matching PSU)
Lumin (solid aluminium chassis):
350mm (W), 345mm (D), 60mm (H), 8kg
PSU (solid aluminium chassis):
106mm (W), 334mm (D), 60mm (H), 4kg

The U2x clearly proves itself as an ideal source for an optimised, forward-looking digital music system.

HiFi News

A flagship Transport-only unit featuring brand new LUMIN components

Solid billet CNC chassis for maximum stiffness and isolation
External power supply featuring solid billet CNC construction and dual toroids and low-noise linear regulator
Native DSD512 & PCM768 playback
10M Clock input and outputs
New isolated USB audio output
3 USB ports including a NEW dedicated isolated USB output
Fibre Network provides complete isolation from network digital noise
Dual-Network interface with built-in Network Switch
Leedh Processing lossless volume control

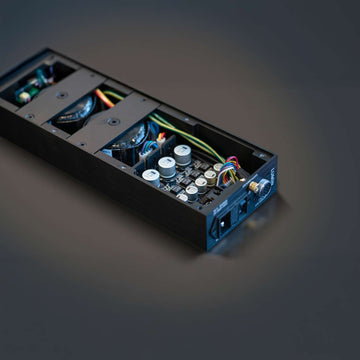

External dual-toroidal linear power supply

Solid billet construction using all the same techniques as the main chassis
Thick aluminium walls provide even more shielding
Separate digital and analogue circuitry
Low-noise Linear Regulator
The highest quality components used throughout

Completely new clocking circuitry

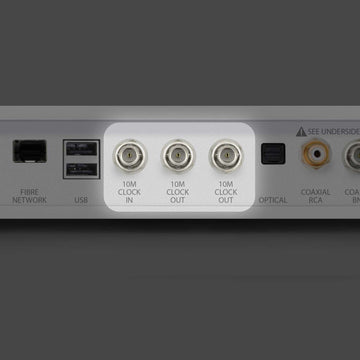

LUMIN U2X is the first LUMIN model to include 10M Clock I/O.

Two 10M clock outputs provide flexibility in synchronising multiple digital audio devices and allows for a "master" clock configuration, where one unit dictates the timing for other units. This approach can help minimize jitter by ensuring all devices are operating on a consistent and stable timing reference.

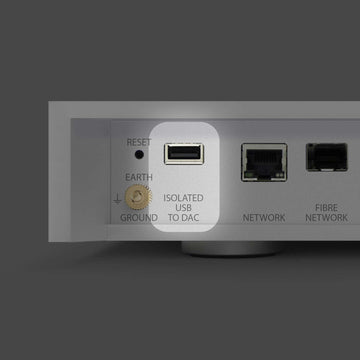

Dedicated USB port for Audio Output

New dedicated isolated USB digital audio output port
Leaves two ports free for music storage and accessories

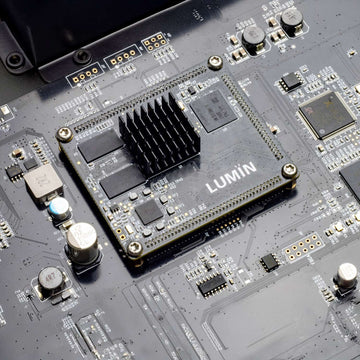

Latest processing system

The first LUMIN flagship to feature our fastest processor
First launched in 2022, the latest architecture provides a new foundation for LUMIN
Increased processing power and storage capacity provide greater resampling flexibility, audio processing performance and future-proofing.
Up/down sampling up to DSD256

Single-billet CNC chassis construction

Like our other flagship products, LUMIN U2X is milled from a solid block of aluminium
The thick uninterrupted walls provide maximum stiffness and isolation

Builds on the very best of the LUMIN range

External dual-toroid power supply and battleship solid-billet chassis taken from the incredible X1.
Fibre networking and dual networking now a famous LUMIN innovation
The very latest processing hardware and software

All the usual LUMIN refinements

LUMIN is always evolving. The full LUMIN range benefits from our programme of continuous development, allowing you to relax in the knowledge that wherever possible we'll bring you the latest streaming technologies.
Unlike many manufacturers, LUMIN have in-house expertise to cover the full software and hardware development process from top to bottom, resulting in lightning-fast implementation of new features.
The last 3 major releases have seen the introduction of Qobuz Connect, KKBox, QQMusic, Audirvāna Certification, TIDAL Max high-res FLAC support, Plex server support, additional free FLAC Lossless Radio Stations, improved Spotify Connect sound quality, JPlay iOS app support, and much more – all absolutely free of charge for all users!

The efforts made by Lumin in developing this top-flight ‘digital transport’ are apparent with everything from high-resolution music from network storage to decent-quality Internet radio. Combine that with superb build quality, and clear and simple operation via the company’s wellsorted app, and the U2x clearly proves itself as an ideal source for an optimised, forward-looking digital music system.

A sound stage that, at least in front of me, knows no boundaries. This extends far beyond the actual speaker positions and amazes with its distinctly free-floating performance. Great!

To put it bluntly, this is not in line with the price level and a similar impression could be expected from [products] at least twice as expensive. We are dealing with a device worth, even if not buying blind, at least getting to know personally. Really worth it.
