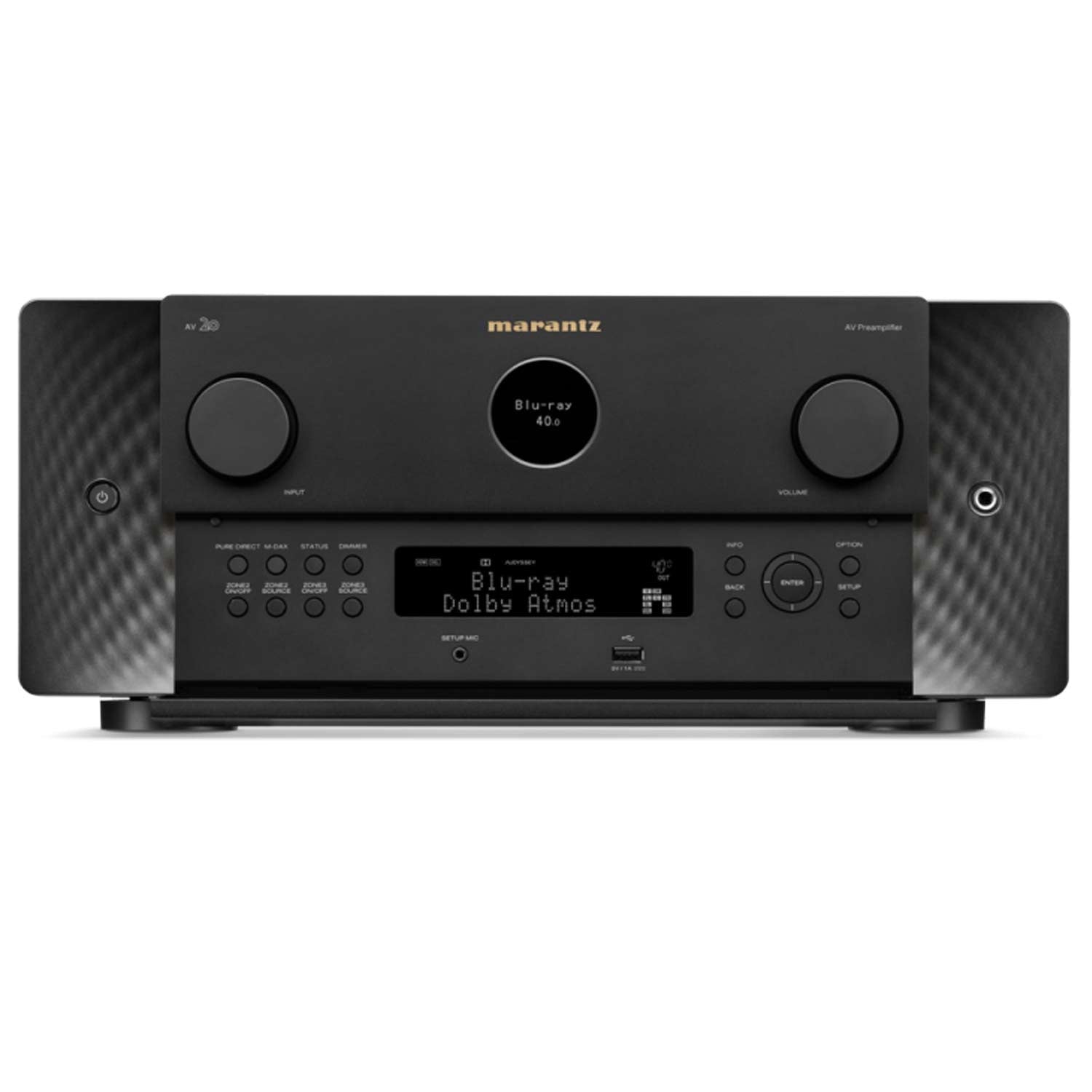

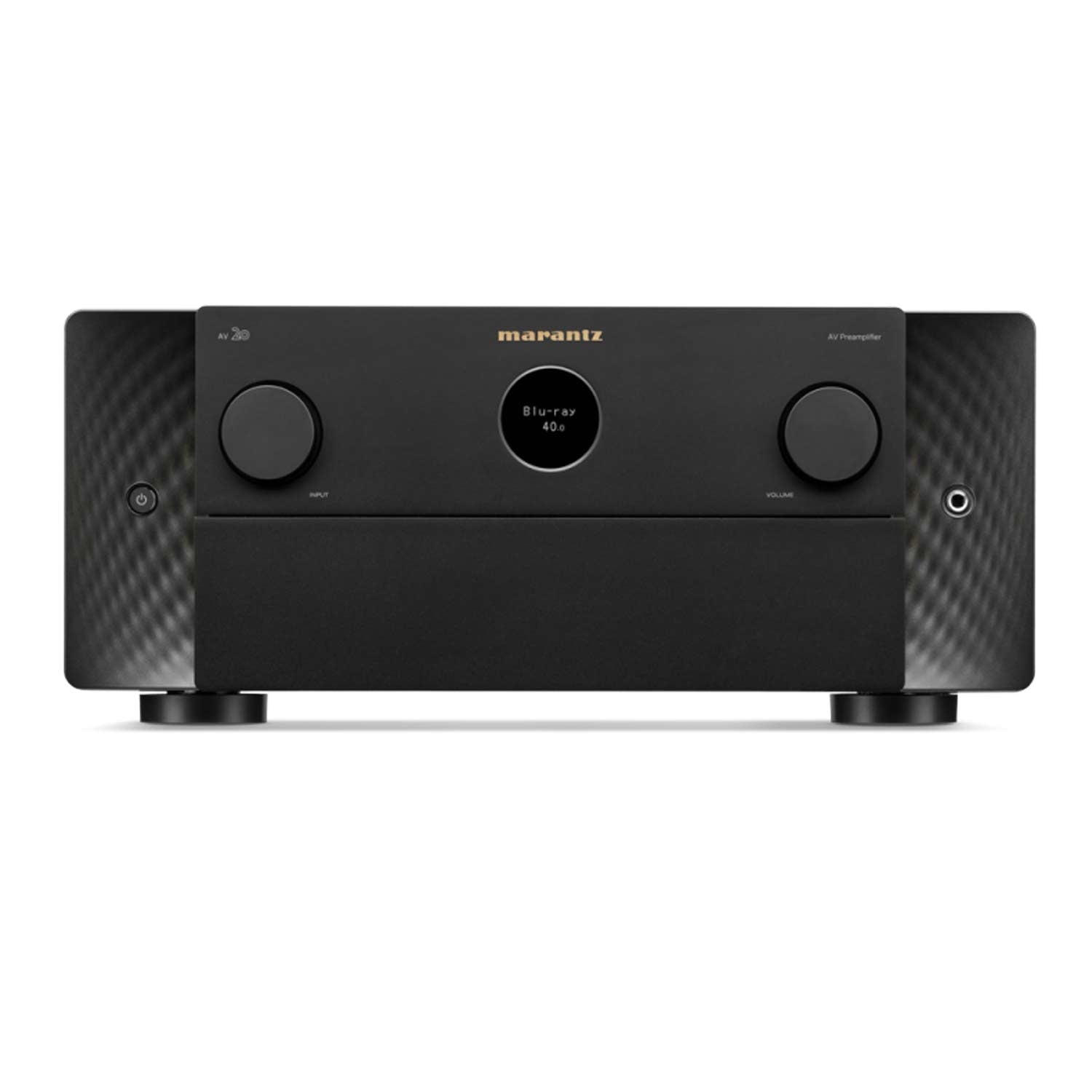

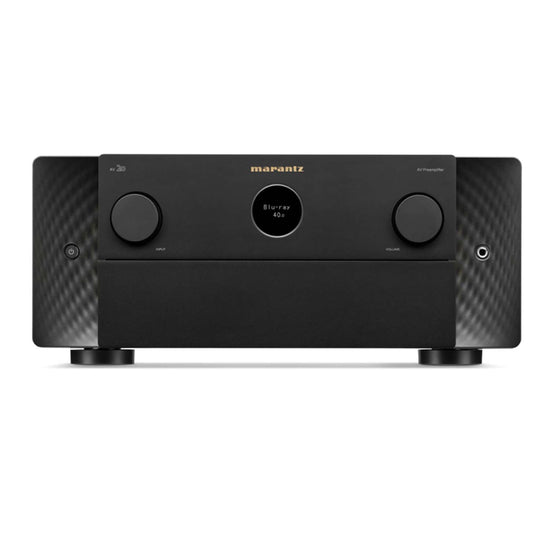

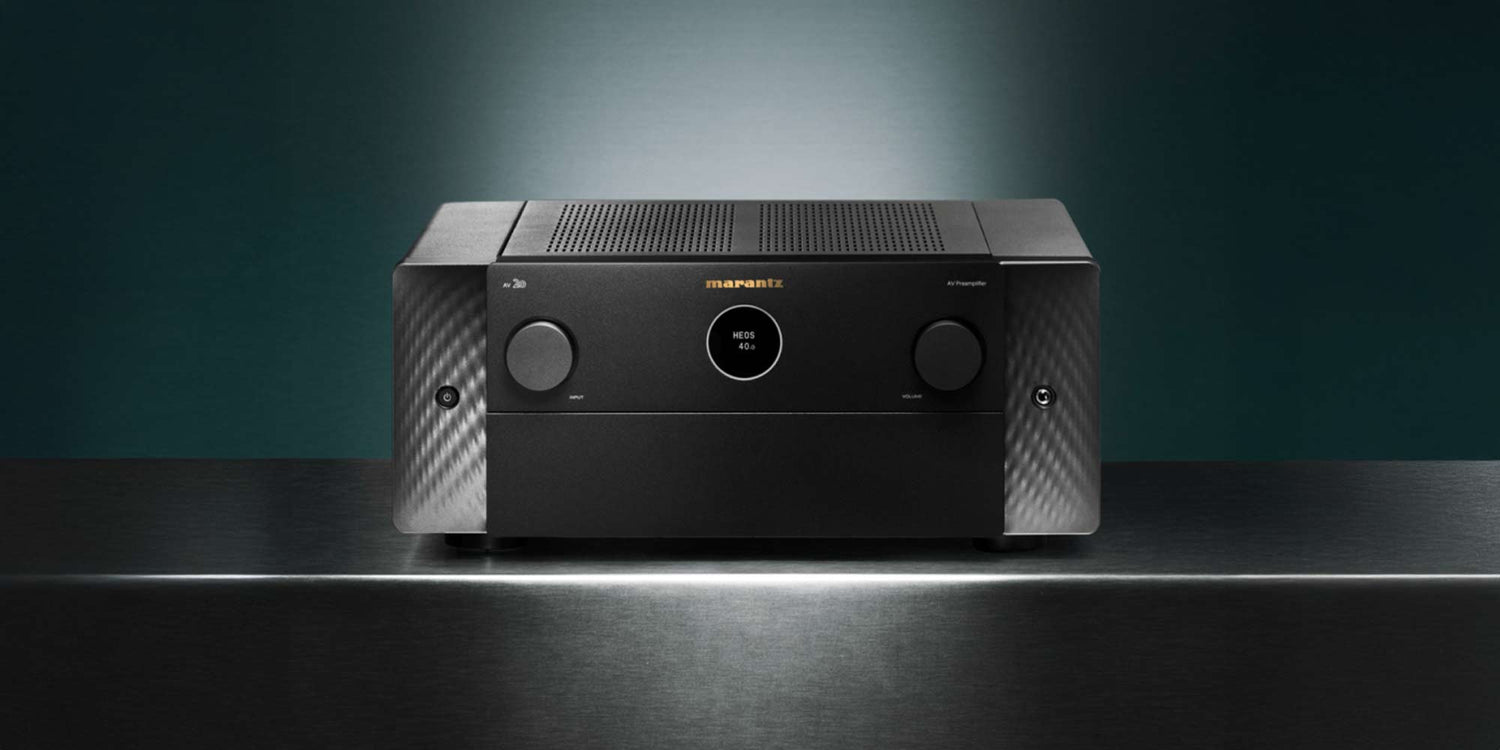

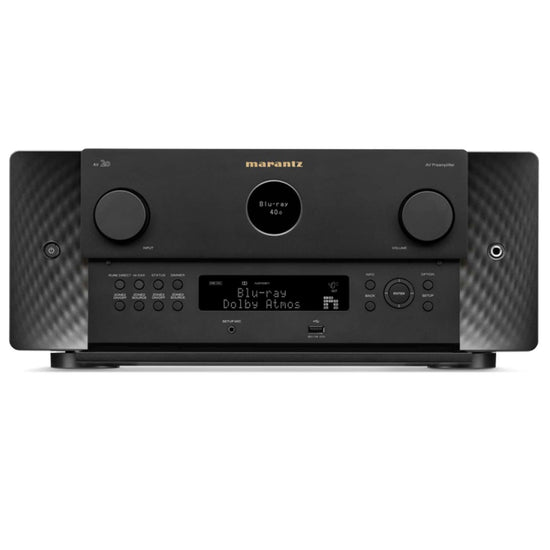

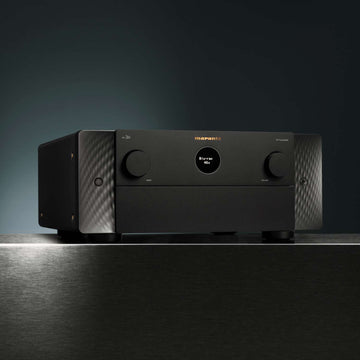

Marantz AV 20 Reference 13.4 Channel Balanced AV Preamplifier

Name: Marantz AV 20 Reference 13.4 Channel Balanced AV Preamplifier
Brand: Marantz
Price: 10999.00 NZD
Availability: InStock

$10,999.00

Please contact us to order

Product variants

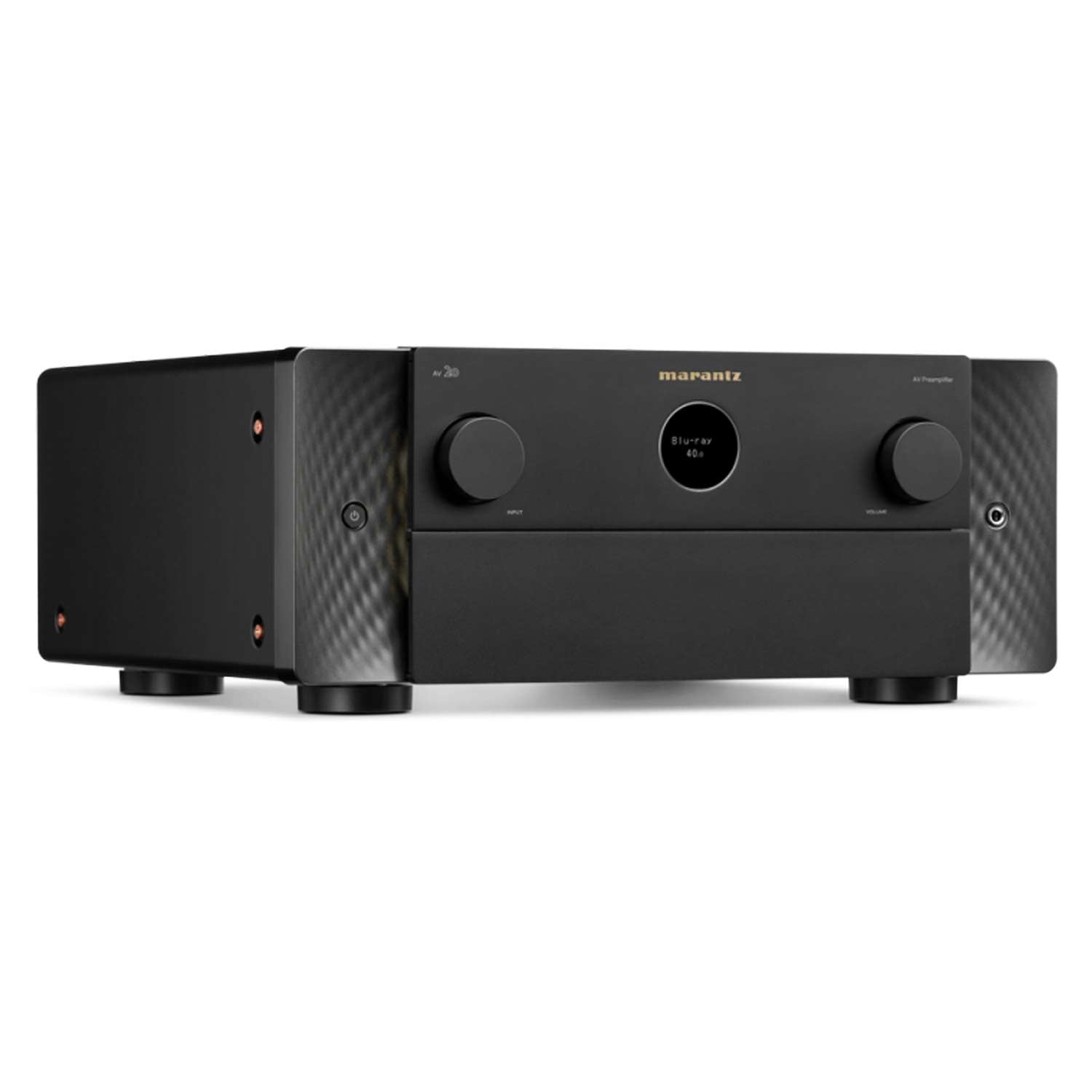

The Marantz AV 20 Reference 13.4‑Channel Balanced AV Preamplifier is a top-tier, feature-rich processor engineered for the demands of high-end home cinema. It handles immersive formats like Dolby Atmos, DTS:X Pro, IMAX Enhanced, Auro‑3D, and 360 Reality Audio across up to 13.4 channels, and includes a phono stage and four individual subwoofer outputs. Built with Marantz’s HDAM-SA3 circuitry and robust toroidal power supply in a copper-plated chassis, the AV 20 delivers precise, spacious sound with exceptional clarity and dynamic control.

Availability

Ask a question

Specifications

Processing Channels:

13.4 (RCA & XLR pre-outs)

Audio Formats:

Dolby: Atmos, TrueHD, Surround, Atmos Music, Height Virtualization
DTS: DTS:X, DTS:X Pro, DTS Neural:X, Virtual:X, DTS-HD
Other: IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG-H

Room Calibration:

Audyssey MultEQ XT32 (Mic included), Dirac Live upgradable

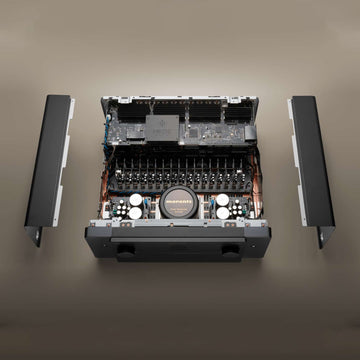

Premium Audio Components:

Copper-plated chassis, toroidal transformer
HDAM-SA3 modules, clock jitter reducer
Gold-plated RCA, Pure Direct mode

Music Support:

HEOS built-in, Roon Ready, AirPlay 2, Spotify Connect, TuneIn
Supports DSD 2.8/5.6MHz, FLAC/WAV/ALAC up to 192kHz/24-bit
Gapless playback (FLAC, ALAC, WAV, DSD)
Bluetooth transmit with volume control

HDMI & Video:

7 HDMI in / 3 out (incl. 1 Zone HDMI Out)
8K/60Hz and 4K/120Hz pass-through
HDR10+, Dolby Vision, HLG, Dynamic HDR
HDMI scaling to 8K, GUI overlay, eARC, VRR, ALLM

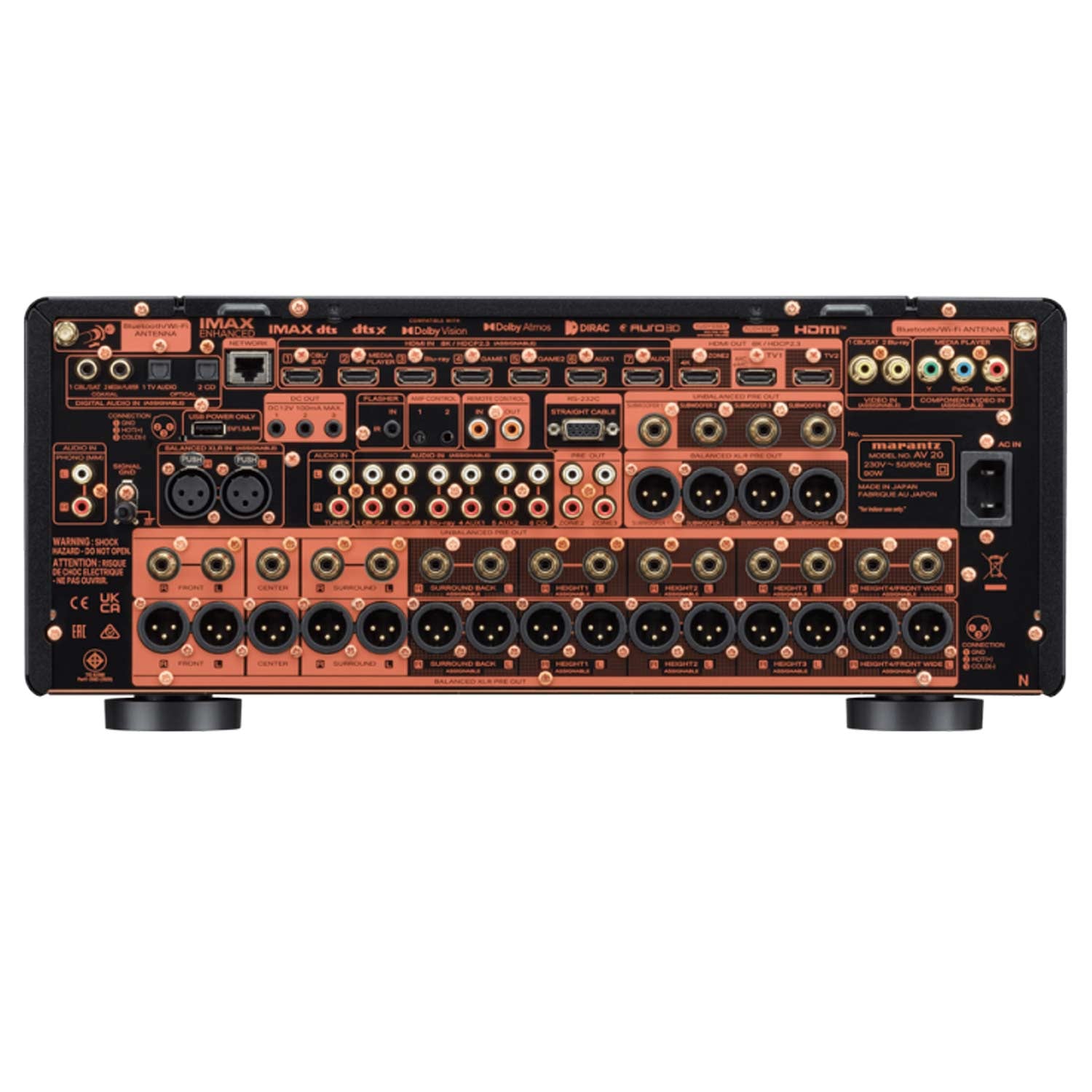

Inputs & Outputs:

XLR & RCA pre-outs (15.4), 4x Subwoofer Out (RCA + XLR)
Digital: 2x Optical, 2x Coaxial
Analogue: 6 in (1x XLR), Phono (MM)
USB: 1x front, 1x rear (USB Audio + power)

Zones:

3-zone audio, HDMI Zone output
Independent source via HDMI, digital, USB, analogue

Control & CI Integration:

RS232, IP Control, Web Control, IR in/out, 3x 12V Trigger Out
HEOS Link compatible

User Interface:

Modern HD GUI, Setup Assistant, Smart Select
2-line FLD + OLED porthole display

Power & Dimensions:

Power: 90W / 0.2W standby

Dimensions (W x D x H):

17.4 x 18.0 x 7.5 in. (w/o antenna)

Weight:

33.1 lbs

The highest measure of performance and capability

Marantz

Elevated Listening Begins Here

When it comes to home theater, Marantz AV Separates bring your movies to life. AV 20 bears all the cinematic performance and feature-rich innovation we’re renowned for, expertly engineered with a timeless design.

Your whole home in one place

HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD. Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.
