Meridian DSP5200HCSE DSP Centre Speaker

$17,000.00

View All Meridian

Enquire

Details

Specifications

Special edition digital active loudspeaker

A perfect partner for the freestanding Special Edition DSP5200, the Special Edition DSP5200HC provides full range playback in a horizontal centre-channel package. The SE DSP5200HC is designed for mounting under a large-screen TV, behind an acoustically-transparent projection screen and is ideal for partnering with other Meridian free-standing or in-wall loudspeakers.

Our unique Centre Elevation technology allows the Special Edition DSP5200HC to be placed below the screen while having its sound image match perfectly with the on-screen action, creating an immersive movie experience.

Meridian-5200HCSE-active-centre-loudspeaker

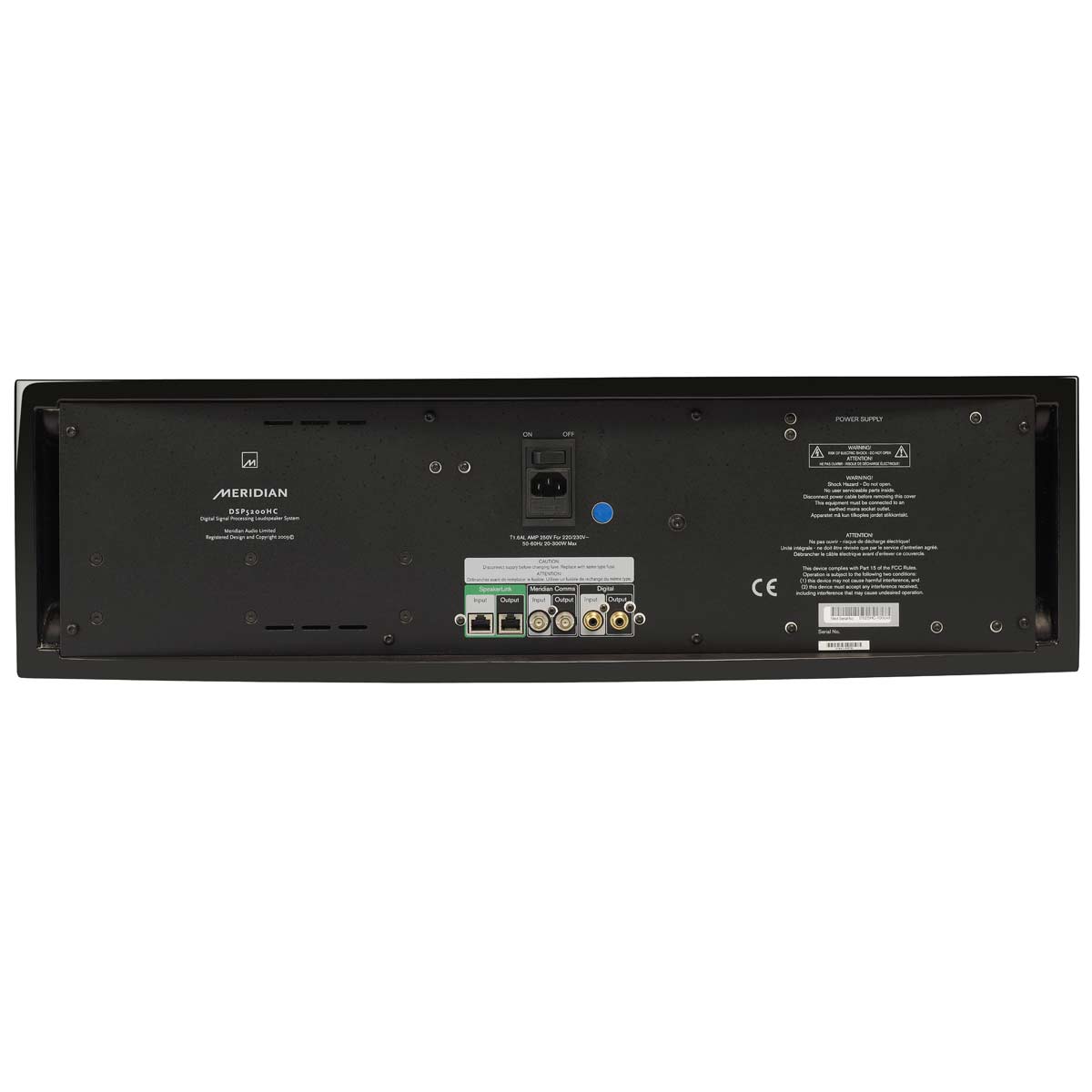

AUDIO INPUTS: Meridian SpeakerLink (RJ45) & RCA phono digital inputs accepting 32kHz to 96kHz sampling rates at up to 24-bit, with MHR support
AUDIO OUTPUTS: Meridian SpeakerLink (RJ45) & RCA phono digital outputs delivering 32kHz to 96kHz sampling rates at up to 24-bit, with MHR support
PERFORMANCE: Peak SPL: 116dB at 1m (music material)

Noise less than 15dB SPL

Frequency response in-room within 3dB: 35Hz to over 20kHz
AMPLIFIERS: 3 x 75w (225 w)
Overall distortion typically <0.02% at any frequency or level

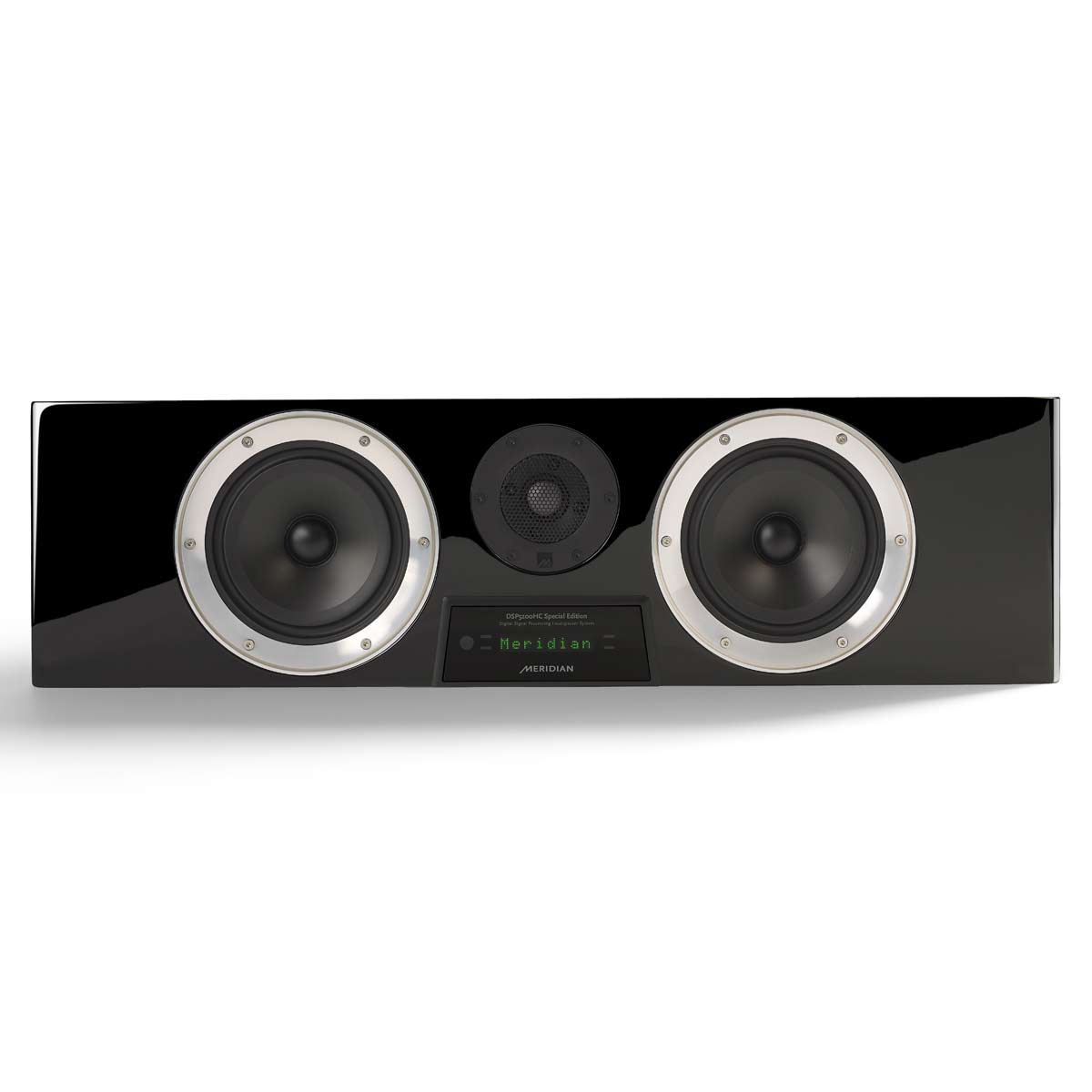

LOW-BASS DRIVER: 160mm polypropylene long-throw
MID/BASS DRIVER: 160mm polypropylene long-throw
TWEETER: 25mm (1”) aluminium composite dome, silver wire voice-coil, dual magnet, semi-hornloaded
DSP FEATURES: 1 x Freescale 56367 running at 150MHz. Bass protection. Response correction for the whole loudspeaker. Hybrid analogue/digital volume control. Balance control with proportional delay compensation.
DISPLAY: Eight-character display with additional status indicators; can be blanked during use
DIMENSIONS / WEIGHT: HEIGHT: 201mm [7.9in]

WIDTH: 735mm [29in] (Max at base)

DEPTH: 267mm [10.5in] (At deepest point)

 WEIGHT: 35kg [77.1lbs]
POWER: 100-125; 200-250V AC 50-60Hz. 20VA standby; 600VA max

Due to the bespoke nature of our high-end music systems this product is not available to be purchased online. Please contact us for personalized service from one of our team of experts.
