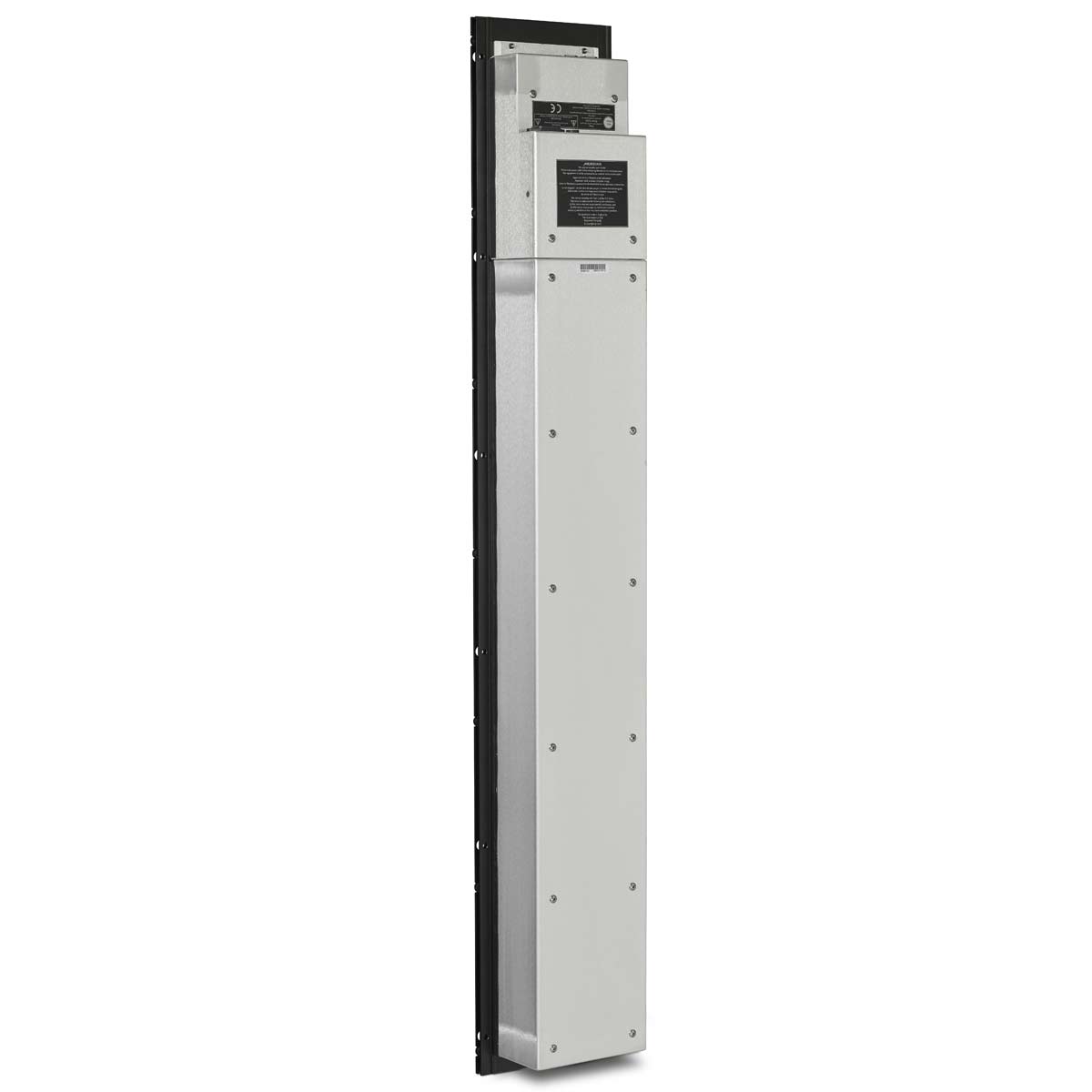

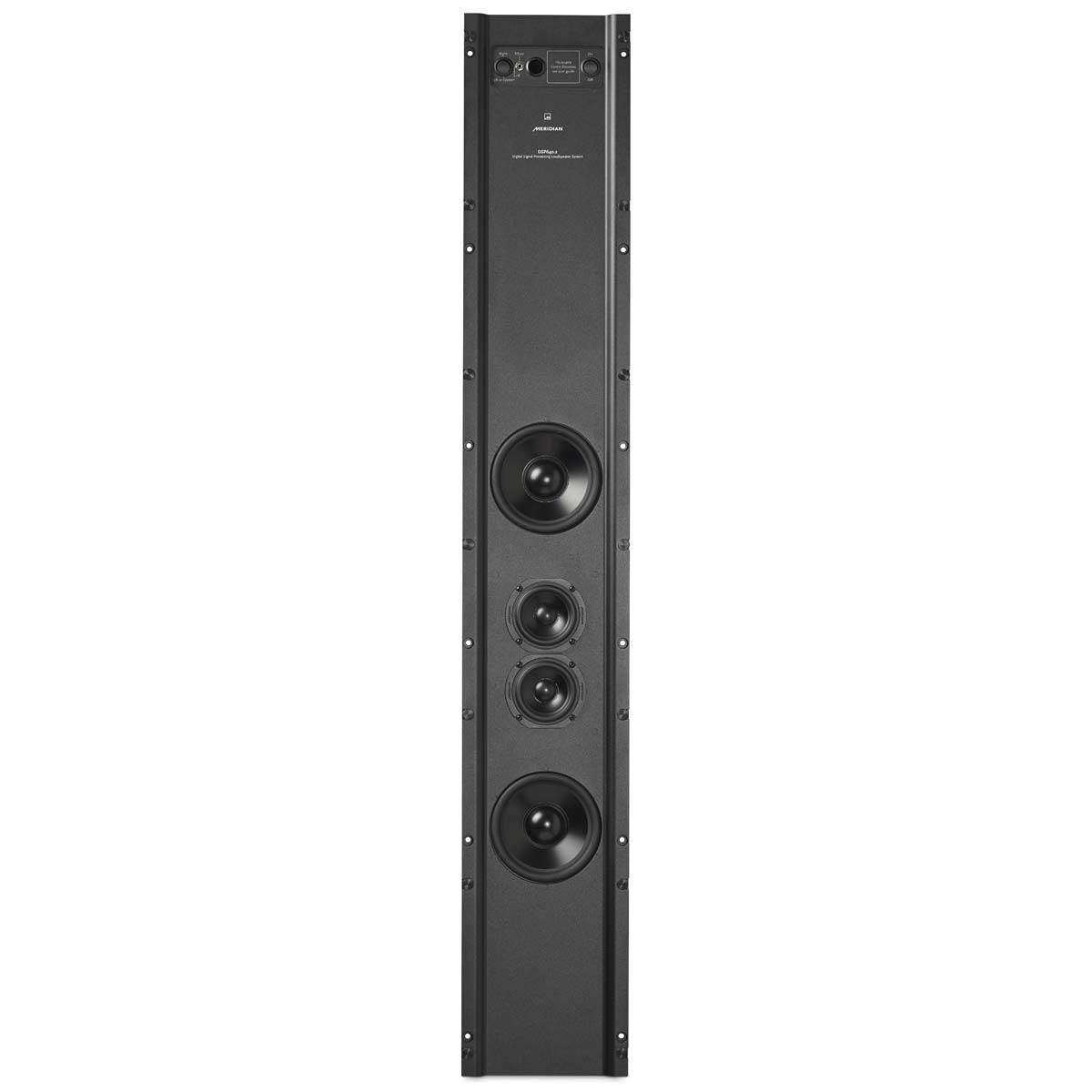

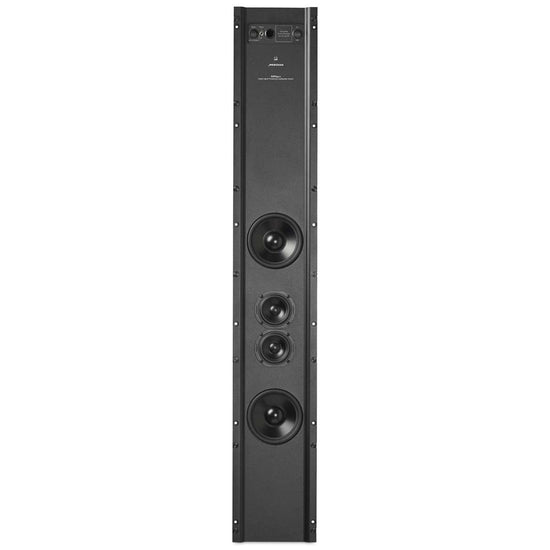

Meridian DSP640.2 CEILING/IN-WALL DIGITAL ACTIVE LOUDSPEAKER

$7,800.00

View All Meridian

Details

Specifications

LIFELIKE AND SPACIOUS SOUND

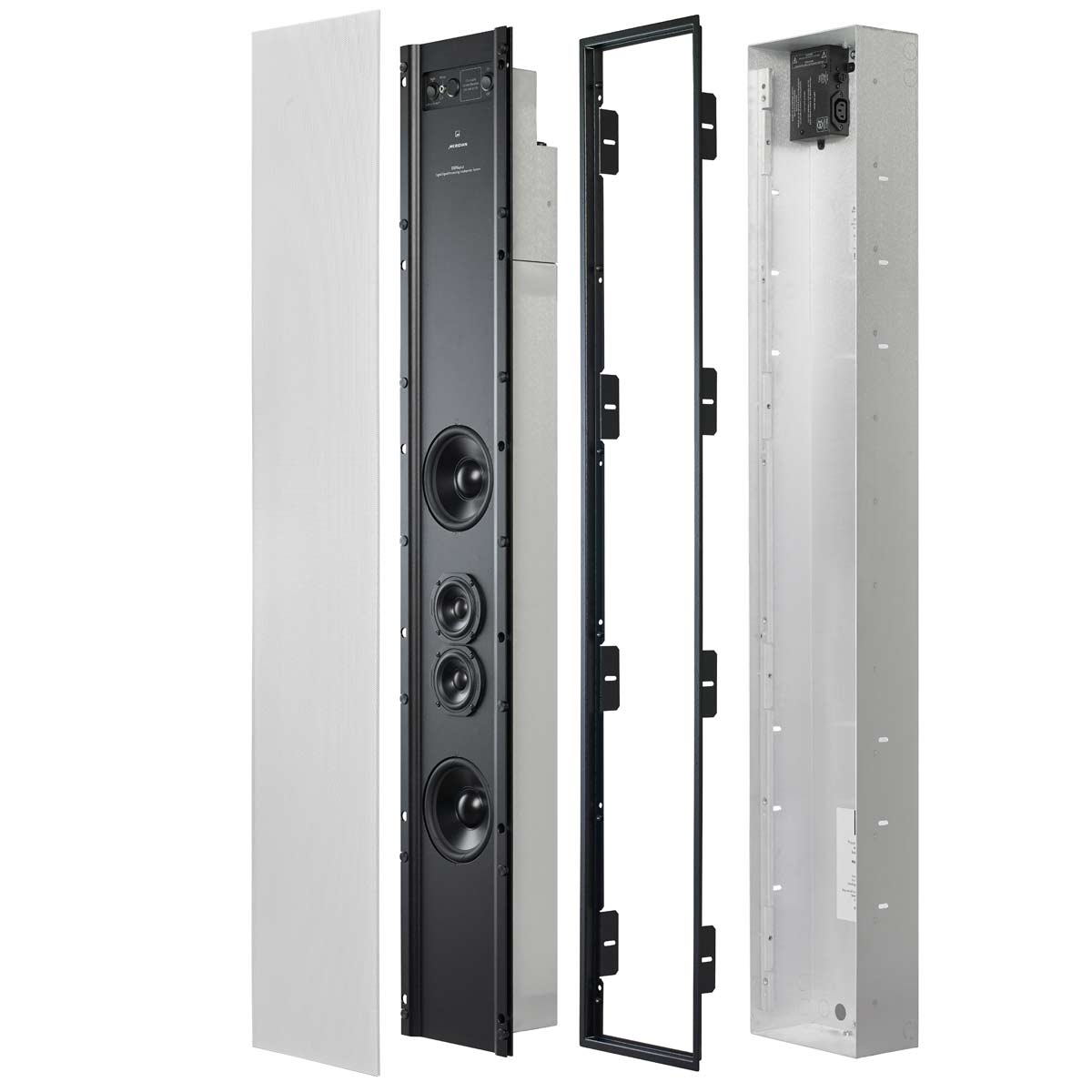

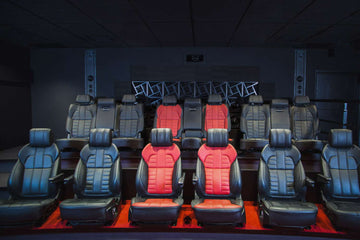

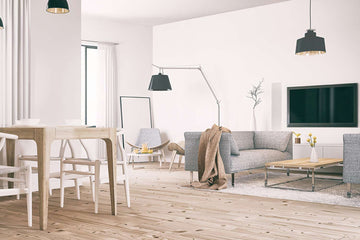

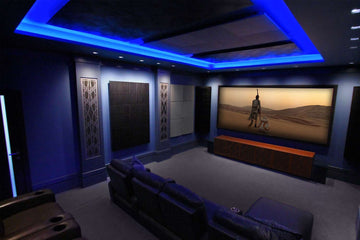

Powered by Meridian’s exclusive ‘CLASS-M’ DSP engine and integrated with ‘DYNAMIC’ Hi-Res amplifiers, the DSP640.2 is perfect for delivering Meridian’s renowned audio quality discreetly in any living or cinema room. Ultra-shallow (100mm deep) design provides full DSP loudspeaker performance, while the rough-in box and frame system allows for easy installation and precise positioning. Grill can be painted to match décor.

With a range of Meridian enhancement technologies on-board the DSP640.2 offers great flexibility and the best possible performance from any source. Featuring high SPL and strong bass performance, it delivers full range sound with no requirement for an additional subwoofer.

Meridian DSP640.2 CEILING/IN-WALL DIGITAL ACTIVE LOUDSPEAKER

BESPOKE SIGNAL MAPPING

Meridian Bespoke Signal Mapping utilises digital signal processing to apply tailored crossover filters that are designed specifically for each configuration of drive units within a loudspeaker.

E3 BASS

Meridian E3 Bass uses specifically designed filters to expand, extend and enhance the low-frequency response of the loudspeaker.

IMAGE ELEVATION

Image Elevation psychoacoustically raises the sound image to the centre of a screen – where the listener would expect to hear it from.

FFS

FFA (Full Frequency Alignment) is a combination of digital filters and delays to correct the group-delay of a loudspeakers. It ensures that all frequencies reach the listener’s ear at the same time.

PRO-ACTIVE BASS

Meridian Pro-Active Bass protects the bass drivers from over-excursion, ensuring maximum bass output without damaging the drive units.

PRO-ACTIVE THERMAL

Meridian Pro-Active Thermal monitors the audio being sent to the mid-range drivers and tweeters and limits the overall volume of the loudspeaker if there is a risk of the drive units getting too hot.



AUDIO INPUTS: Meridian SpeakerLink connector (RJ45)

AUDIO OUTPUTS: Meridian SpeakerLink connector (RJ45)

PERFORMANCE: Peak SPL: Peak SPL: 1m - 117dB

AMPLIFIERS: Wide-range drivers (each): 2 x Class D amplifiers bridged for 100W into 8 Ohms.

BASS DRIVERS: 2 x Class D amplifiers bridged for 100W into 8 Ohms

WIDE-RANGE DRIVERS: 2 x 85mm with neodymium magnets

FRONT PANEL CONTROLS: On/off rocker switch, Fuse holder, IR window Rocker switch selects left-centre-right channel operation LED indicator shows power status

BOX DIMENSIONS / WEIGHT: HEIGHT: 1230mm [48.5in] WIDTH: 203mm [8in] DEPTH: 102mm [4in] WEIGHT: 15 kg [11 lbs]

POWER: IEC mains connector included in back-box connects to flying lead attached to enclosure
