Monitor Audio CP-IW260X In-Wall Speaker

In Stock, Available Now


Details

Specifications

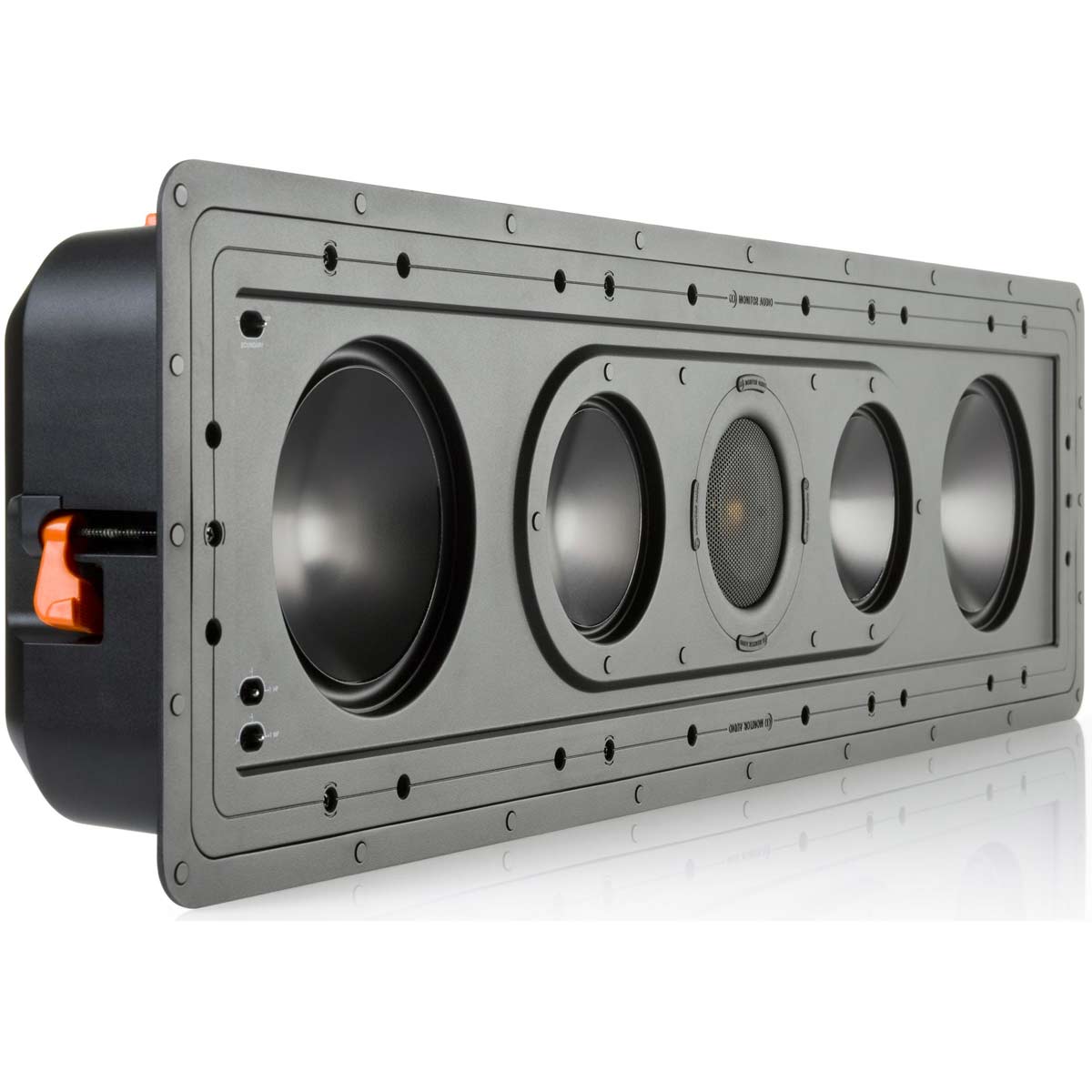

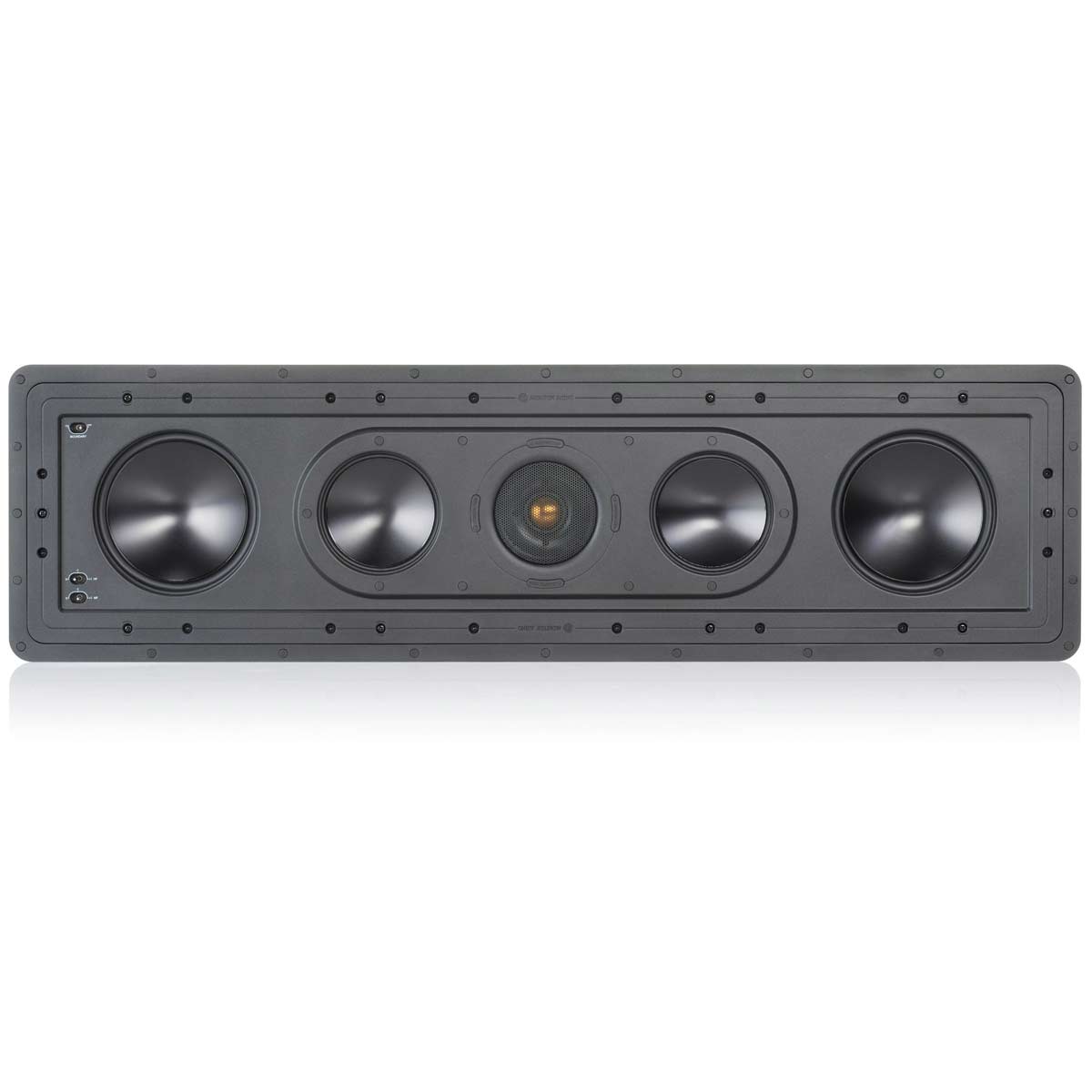

Monitor Audio CP-IW260X In-Wall Speaker

The luxury CP-IW260X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance. The CP-IW260X features Monitor Audio’s signature C-CAM® (Ceramic-Coated Aluminum/Magnesium) cone material deployed in dual 6.5” bass drivers and twin 4” mids astride a gold dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.

Sold as single units.

  • Dual 4” C-CAM® mid-range drivers – featuring under hung voice coil
  • 25mm (1”) C-CAM Gold Dome tweeter
  • Portrait or landscape orientation
  • Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
  • Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
  • High overall efficiency and maximum SPL for powerful home theater installations
  • High power handling
  • Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
  • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
  • Patented Tri-Grip® fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
  • Overall Depth:(including grille): 102mm (4”)
  • Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
  • Paintable grille to blend with the living environment
  • High quality bi-wire terminal connections – provide increase in performance particularly when a bi-amplifier configuration is specified.
  • Frequency response: 50Hz - 60kHz (-6dB typical in room response)
  • Power Handling (RMS): 150W
  • Adjustment Controls: Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
  • Mounting depth: 96mm
  • Cable Connection: High quality bi-wire terminal connections
  • Impedance (Nominal): 6Ω
  • Recommended Amp Requirements: 60 - 150W
  • Overall Dimensions:(including grille) (H x W): 907 x 257mm
  • Fixing type: 10 x Tri-Grip® Dog leg fixings
  • Sensitivity (1W@1M): 89dB
  • Crossover Frequency / Slope: L.F - 500Hz @ 12dB/Octave M.F -500Hz @ 12dB/Octave. 3KHz @ 18dB/Octave H.F - 3KHz @ 18dB/Octave
  • Overall Depth:(including grille): 102mm (4”)
  • Construction Material: Cast Polymer enclosure (RoHS2 Compliant)
  • Maximum SPL (@1M. Installed/in room): 113.8 dBA
  • Drivers Unit Complement: 2 x 6.5” C-CAM Bass drivers 2 x 4” C-CAM Mid-range drivers 1 x 25mm (1”) C-CAM Gold Dome tweeter
  • Cut Out Dimensions:(H x W): 880 x 230 mm
  • Weight: 11.98kg
