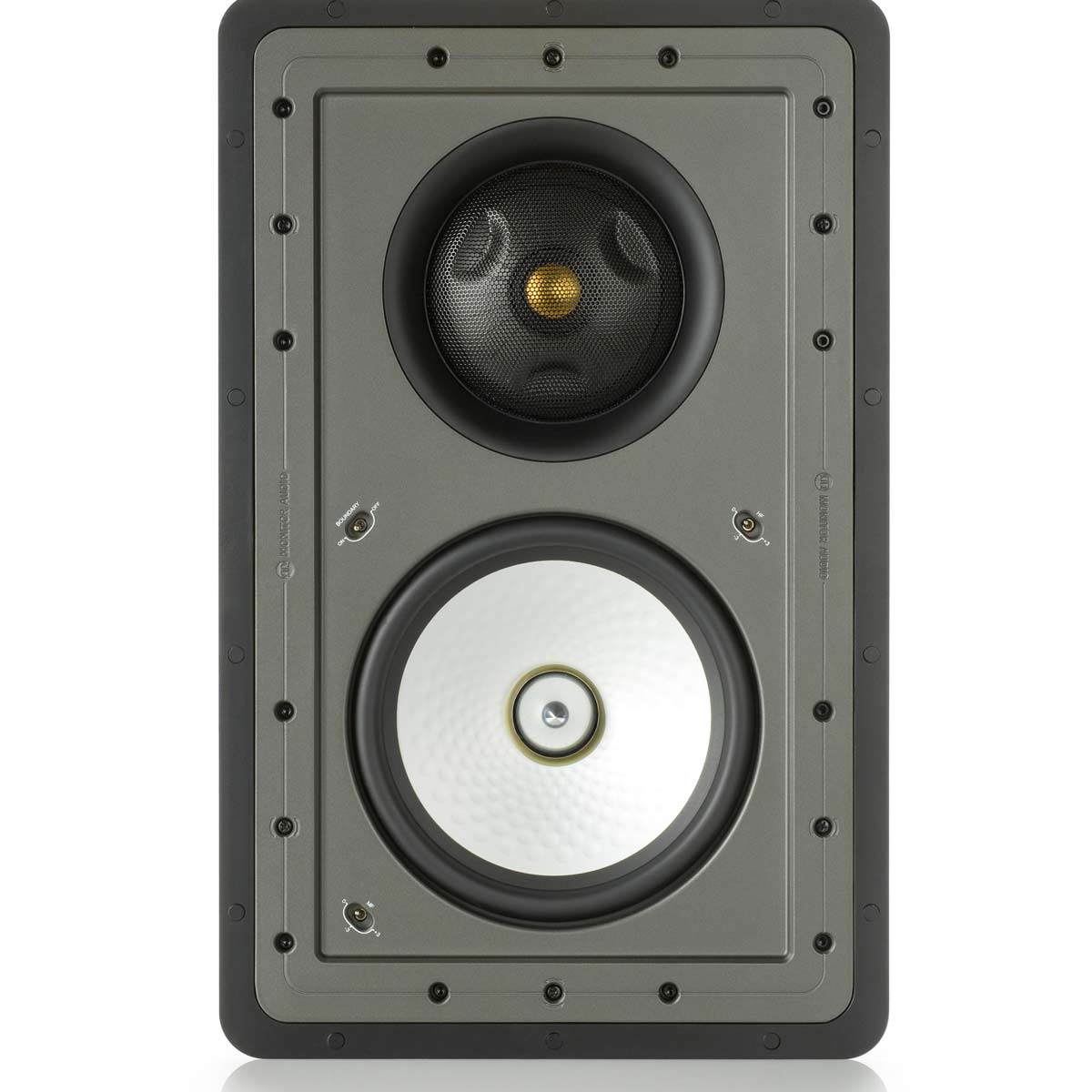

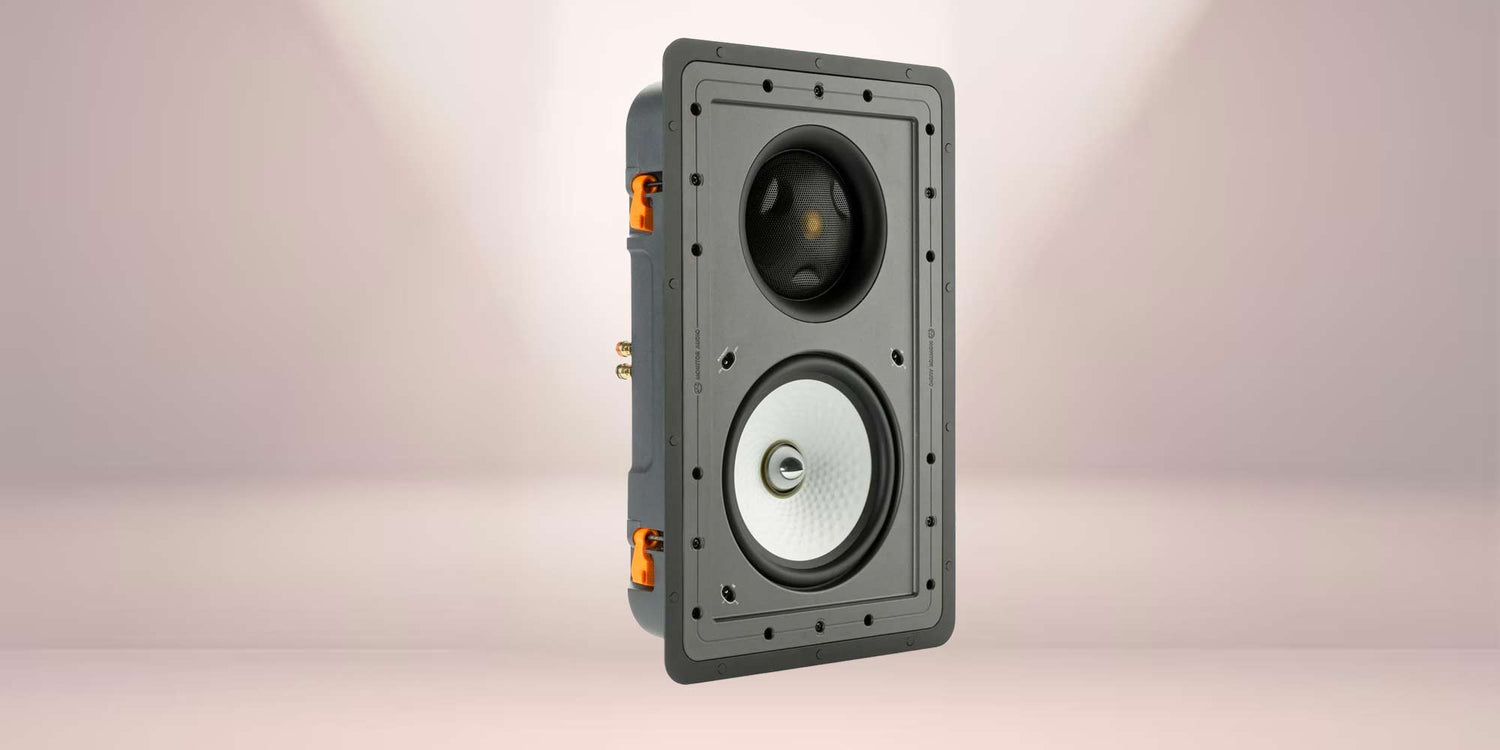

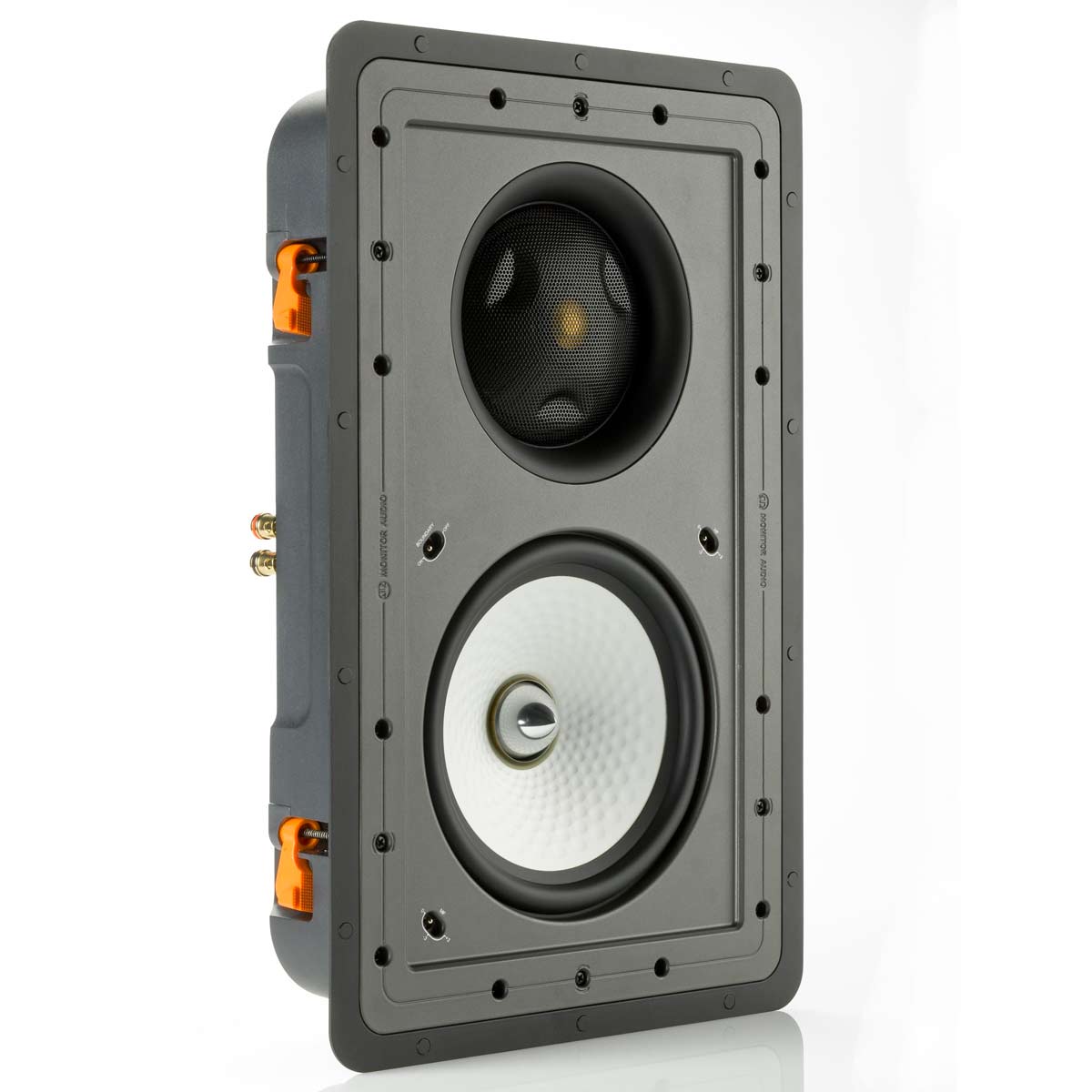

Monitor Audio CP-WT380IDC In-Wall Speaker

$750.00

Free Delivery in NZ
for orders over $100 or $5 under $100.

Product Description

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-WT380IDC represents the highest level of new CP performance.

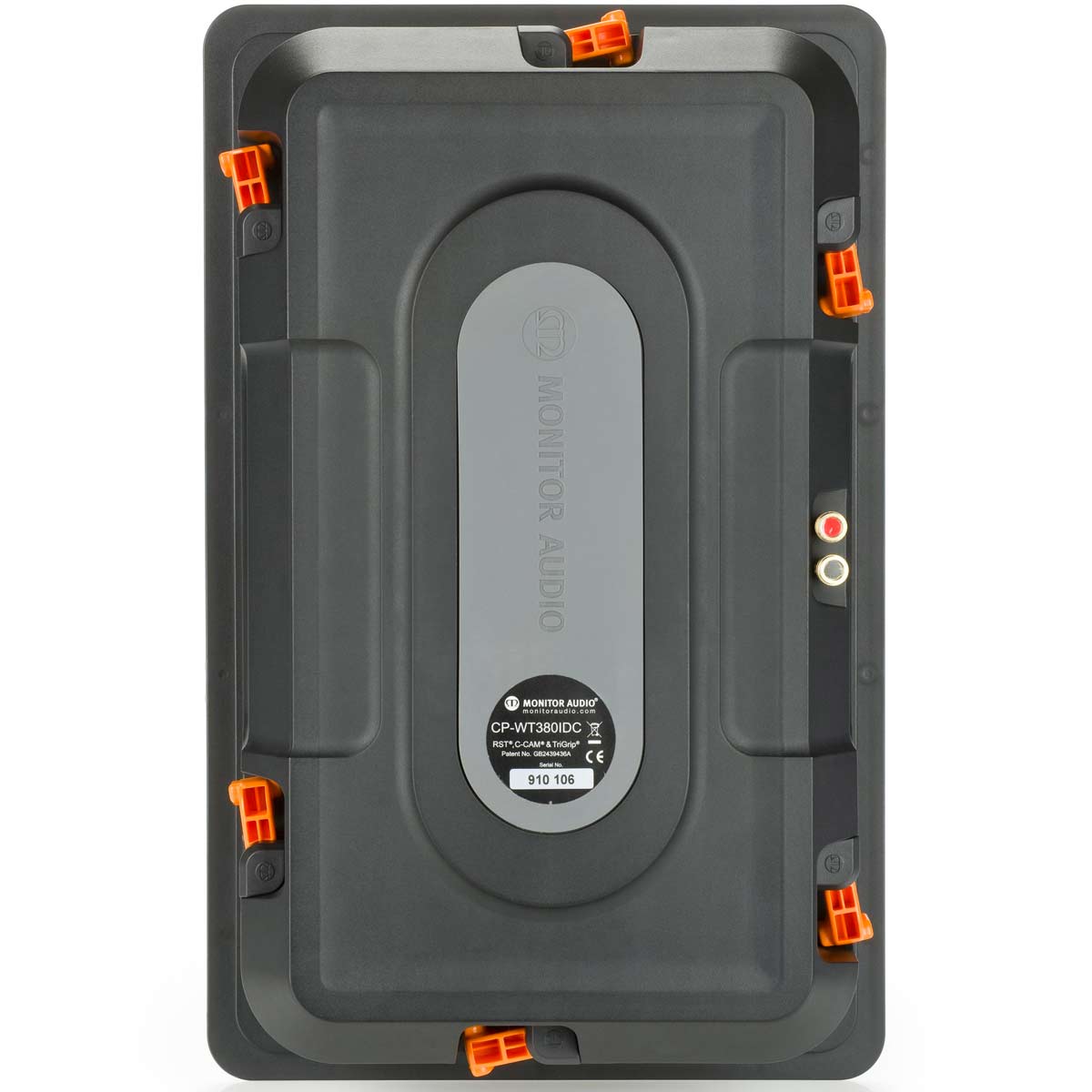

The Controlled Performance range is fitted with fully-sealed back boxes that provide an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility, for superior level of sound isolation between rooms and floors.



Specifications

  • Frequency Response: 50 Hz - 30 kHz
  • Nominal Impedance: 6 ohms
  • Sensitivity (1W@1M): 89 dB
  • Maximum SPL: 106.9 dBA
  • Power Handling (RMS): 120 W
  • Recommended Amplifier Requirements: 30 - 120 W
  • Crossover Frequency: Bass low pass: 300 Hz @ 6 dB / Octave
    Mid: 300 Hz @  6 dB / Octave & 3 kHz @ 12 dB / Octave
  • Drive Unit Complement: 3-Way, 8" C-CAM RST cone bass driver, 4" C-CAM IDC cone mid range driver, 1" C-CAM Gold Dome tweeter
    (tweeter & midrange driver combined in a pivoting module)
  • Adjustment Controls: HF Level Switch(+3 dB / 0 dB / -3 dB),  Boundary Compensation Switch
  • Overall Dimensions: 472.5 x 303.5 mm x 106 mm (incl grille)
  • Cut-Out Dimensions: 438 x 269 mm
  • Mounting Depth: 99 mm (515/16")
  • Weight:5.62kg
  •
