Monitor Audio Creator Series Tier 3 Architectural Ceiling speaker

$1,170.00

Sold out

Tax included.

Model: C3M

C3M

C3L

Product variants

High performance. Wherever you need it.

The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers.

The application of key Monitor Audio acoustic technologies more usually found in premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation.

Tier 3 of the Creator Series is a high-performance range of speakers that have all the engineering qualities of Tier 2, but offer improved acoustic performance and further features for enhanced speaker placement freedom, such as boundary correction and mid/high-frequency cut/boost, plus leading-edge acoustic technologies.

Quantity

Free Shipping for orders $500+

Specifications

Small

Drive Units: 1 x 5" C-CAM bass driver, 1 x 25mm C-CAM tweeter

Nominal Impedance: 8 Ohms

Amplifier Requirement: 25-100W

Continuous Power Handling: 50W

Sensitivity (2.83v @1m): 84dB

Cut out size: 171mm

Mounting Depth: 99mm

Dimensions: 201mm x 103mm

Weight: 1.4kg

Medium

Drive Units: 1 x 7" C-CAM bass driver, 1 x 25mm C-CAM tweeter

Nominal Impedance: 8 Ohms

Amplifier Requirement: 35-130W

Continuous Power Handling: 65W

Sensitivity (2.83v @1m): 86dB

Cut out size: 212mm

Mounting Depth: 99mm

Dimensions: 242mm x 103mm

Weight: 1.9kg

Large

Drive Units: 1 x 9" C-CAM bass driver, 1 x 32mm C-CAM tweeter

Nominal Impedance: 8 Ohms

Amplifier Requirement: 40-150W

Continuous Power Handling: 75W

Sensitivity (2.83v @1m): 88dB

Cut out size: 248mm

Mounting Depth: 99mm

Dimensions: 278mm x 103mm

Weight: 2.5kg

The Creator Series re-writes the rules of custom installation.

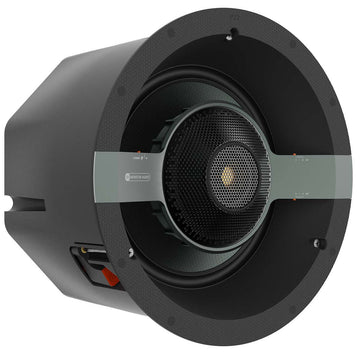

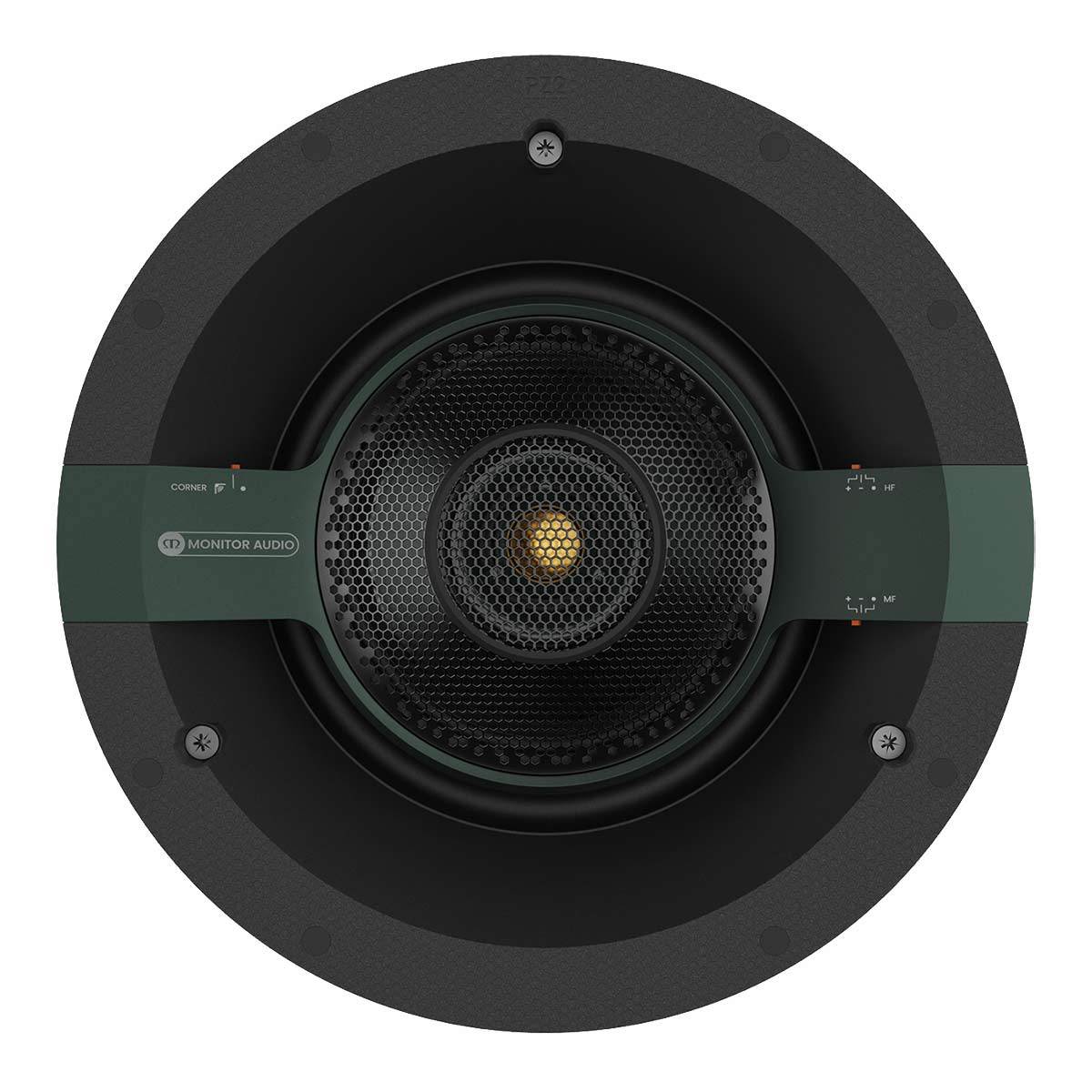

Monitor Audio Creator Series Tier 3 CP Architectural Ceiling speaker

C3M, C3L

Tier 3 architectural speakers in medium and large sizes featuring the proven RST II bass drivers and C-CAM tweeters. Tier 3 models offer a significant step up over Tier 2 models.

RST II mid-bass drivers

The Rigid Surface Technology II cone was developed and perfected using sophisticated computer modelling (Finite Element Analysis). The strengthening effect of RST allows the use of thinner, lighter and more responsive C-CAM cones, providing speed and accuracy with reduced distortion.

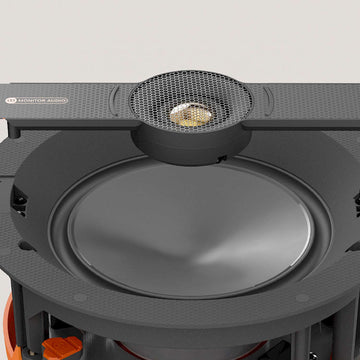

C-CAM Gold Dome Tweeter

The Gold Dome tweeter is formed from a Ceramic-Coated Aluminium Magnesium alloy, Gold anodised to a specific thickness for ideal stiffness and damping characteristics.

Thinner, lighter, more rigid and more efficient than domes made from other materials which are prone to distortion in the audio band.

Tri-Grip II

Tri-Grip Il is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.

Quik-Link

Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre- installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It's that easy.
