Monitor Audio Creator Series In-Wall Subwoofers

$0.00

Please contact us to order

Model: WS1-W10

WS1-W10

WS2-W12

WS3-W12

Product variants

Bring powerful, high-fidelity bass to your home theatre or music system without sacrificing your interior design. The Monitor Audio Creator Series WS1-W10 is a discreet 10-inch in-wall subwoofer engineered to deliver deep, articulate and controlled low frequencies from completely behind the wall.

Quantity

Free Shipping for orders $500+

Availability

Ask a question

WS1-W10 (Tier 1)
Frequency Response (-6dB): 27–250 Hz (with Box) / 22–250 Hz (Infinite baffle)
Sensitivity: 88 dB
Nominal/Minimum Impedance: 6 Ohms / 6.0 Ohms
Max Usable SPL (Peak): 112.4 dB (with IA500-S)
Continuous Power Handling: 250 W (tested with IA500-S)
Recommended Amplifier Power: 250 W (IA500-S)
Bass Alignment: Sealed
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 10" (254mm) Low Profile, High Linear-Excursion C-CAM Driver
Mounting Depth: 88mm (3 7/16")
Cut-Out Square Hole Size: 280 x 280mm (11 x 11")
External Dimensions (H x W x D): 313 x 313 x 97mm
Recommended Wall Thickness: 9.5–40mm
Packed Dimensions: 200 x 392 x 392mm
Net Weight: 5.3 kg (11 lb 11 oz)
Finish: Black
Sold as: Single

WS2-W12 (Tier 2)
Frequency Response (-6dB): 25–250 Hz
Sensitivity: 89 dB
Nominal/Minimum Impedance: 3 Ohms / 3.0 Ohms
Max Usable SPL (Peak): 115.3 dB (with IA500-S)
Continuous Power Handling: 500 W (tested with IA500-S)
Recommended Amplifier Power: 500 W (IA500-S)
Bass Alignment: Sealed with dual multi-length cabinet
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 12" (305mm) Low Profile, High Linear-Excursion RST II C-CAM Driver
Mounting Depth: 87mm (3 7/16")
Installation Box External Dims: 1950 x 351 x 111mm
Frame External Dims: 351 x 351 x 16mm
Recommended Wall Thickness: 12.5–40mm
Packed Dimensions: 138 x 600 x 420mm
Net Weight: 27.5 kg (60 lb 10 oz)
Finish: Black
Sold as: Single

WS3-W12 (Tier 3)
Frequency Response (-6dB): 23–250 Hz
Sensitivity: 88.5 dB
Nominal/Minimum Impedance: 4 Ohms / 4.0 Ohms
Max Usable SPL (Peak): 116.1 dB (with IA750-2)
Continuous Power Handling: 750 W (tested with IA750-2)
Recommended Amplifier Power: 750 W (IA750-2)
Bass Alignment: Sealed with triple multi-length cabinet
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 12" (305mm) Low Profile, High Linear-Excursion RST II C-CAM Driver
Mounting Depth: 90mm (3 9/16")
Installation Box External Dims: 1981 x 355 x 113mm
Frame External Dims: 351 x 351 x 16mm
Recommended Wall Thickness: 12.5–40mm
Packed Dimensions: 138 x 630 x 420mm
Net Weight: 36.7 kg (80 lb 15 oz)
Finish: Black
Sold as: Single
WS1-W10 (Tier 1)
Frequency Response (-6dB): 27–250 Hz (with Box) / 22–250 Hz (Infinite baffle)
Sensitivity: 88 dB
Nominal/Minimum Impedance: 6 Ohms / 6.0 Ohms
Max Usable SPL (Peak): 112.4 dB (with IA500-S)
Continuous Power Handling: 250 W (tested with IA500-S)
Recommended Amplifier Power: 250 W (IA500-S)
Bass Alignment: Sealed
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 10" (254mm) Low Profile, High Linear-Excursion C-CAM Driver
Mounting Depth: 88mm (3 7/16")
Cut-Out Square Hole Size: 280 x 280mm (11 x 11")
External Dimensions (H x W x D): 313 x 313 x 97mm
Recommended Wall Thickness: 9.5–40mm
Packed Dimensions: 200 x 392 x 392mm
Net Weight: 5.3 kg (11 lb 11 oz)
Finish: Black
Sold as: Single

WS2-W12 (Tier 2)
Frequency Response (-6dB): 25–250 Hz
Sensitivity: 89 dB
Nominal/Minimum Impedance: 3 Ohms / 3.0 Ohms
Max Usable SPL (Peak): 115.3 dB (with IA500-S)
Continuous Power Handling: 500 W (tested with IA500-S)
Recommended Amplifier Power: 500 W (IA500-S)
Bass Alignment: Sealed with dual multi-length cabinet
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 12" (305mm) Low Profile, High Linear-Excursion RST II C-CAM Driver
Mounting Depth: 87mm (3 7/16")
Installation Box External Dims: 1950 x 351 x 111mm
Frame External Dims: 351 x 351 x 16mm
Recommended Wall Thickness: 12.5–40mm
Packed Dimensions: 138 x 600 x 420mm
Net Weight: 27.5 kg (60 lb 10 oz)
Finish: Black
Sold as: Single

WS3-W12 (Tier 3)
Frequency Response (-6dB): 23–250 Hz
Sensitivity: 88.5 dB
Nominal/Minimum Impedance: 4 Ohms / 4.0 Ohms
Max Usable SPL (Peak): 116.1 dB (with IA750-2)
Continuous Power Handling: 750 W (tested with IA750-2)
Recommended Amplifier Power: 750 W (IA750-2)
Bass Alignment: Sealed with triple multi-length cabinet
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 12" (305mm) Low Profile, High Linear-Excursion RST II C-CAM Driver
Mounting Depth: 90mm (3 9/16")
Installation Box External Dims: 1981 x 355 x 113mm
Frame External Dims: 351 x 351 x 16mm
Recommended Wall Thickness: 12.5–40mm
Packed Dimensions: 138 x 630 x 420mm
Net Weight: 36.7 kg (80 lb 15 oz)
Finish: Black
Sold as: Single

Specifications

WS1-W10 (Tier 1)
Frequency Response (-6dB): 27–250 Hz (with Box) / 22–250 Hz (Infinite baffle)
Sensitivity: 88 dB
Nominal/Minimum Impedance: 6 Ohms / 6.0 Ohms
Max Usable SPL (Peak): 112.4 dB (with IA500-S)
Continuous Power Handling: 250 W (tested with IA500-S)
Recommended Amplifier Power: 250 W (IA500-S)
Bass Alignment: Sealed
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 10" (254mm) Low Profile, High Linear-Excursion C-CAM Driver
Mounting Depth: 88mm (3 7/16")
Cut-Out Square Hole Size: 280 x 280mm (11 x 11")
External Dimensions (H x W x D): 313 x 313 x 97mm
Recommended Wall Thickness: 9.5–40mm
Packed Dimensions: 200 x 392 x 392mm
Net Weight: 5.3 kg (11 lb 11 oz)
Finish: Black
Sold as: Single

WS2-W12 (Tier 2)
Frequency Response (-6dB): 25–250 Hz
Sensitivity: 89 dB
Nominal/Minimum Impedance: 3 Ohms / 3.0 Ohms
Max Usable SPL (Peak): 115.3 dB (with IA500-S)
Continuous Power Handling: 500 W (tested with IA500-S)
Recommended Amplifier Power: 500 W (IA500-S)
Bass Alignment: Sealed with dual multi-length cabinet
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 12" (305mm) Low Profile, High Linear-Excursion RST II C-CAM Driver
Mounting Depth: 87mm (3 7/16")
Installation Box External Dims: 1950 x 351 x 111mm
Frame External Dims: 351 x 351 x 16mm
Recommended Wall Thickness: 12.5–40mm
Packed Dimensions: 138 x 600 x 420mm
Net Weight: 27.5 kg (60 lb 10 oz)
Finish: Black
Sold as: Single

WS3-W12 (Tier 3)
Frequency Response (-6dB): 23–250 Hz
Sensitivity: 88.5 dB
Nominal/Minimum Impedance: 4 Ohms / 4.0 Ohms
Max Usable SPL (Peak): 116.1 dB (with IA750-2)
Continuous Power Handling: 750 W (tested with IA750-2)
Recommended Amplifier Power: 750 W (IA750-2)
Bass Alignment: Sealed with triple multi-length cabinet
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 12" (305mm) Low Profile, High Linear-Excursion RST II C-CAM Driver
Mounting Depth: 90mm (3 9/16")
Installation Box External Dims: 1981 x 355 x 113mm
Frame External Dims: 351 x 351 x 16mm
Recommended Wall Thickness: 12.5–40mm
Packed Dimensions: 138 x 630 x 420mm
Net Weight: 36.7 kg (80 lb 15 oz)
Finish: Black
Sold as: Single
WS1-W10 (Tier 1)
Frequency Response (-6dB): 27–250 Hz (with Box) / 22–250 Hz (Infinite baffle)
Sensitivity: 88 dB
Nominal/Minimum Impedance: 6 Ohms / 6.0 Ohms
Max Usable SPL (Peak): 112.4 dB (with IA500-S)
Continuous Power Handling: 250 W (tested with IA500-S)
Recommended Amplifier Power: 250 W (IA500-S)
Bass Alignment: Sealed
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 10" (254mm) Low Profile, High Linear-Excursion C-CAM Driver
Mounting Depth: 88mm (3 7/16")
Cut-Out Square Hole Size: 280 x 280mm (11 x 11")
External Dimensions (H x W x D): 313 x 313 x 97mm
Recommended Wall Thickness: 9.5–40mm
Packed Dimensions: 200 x 392 x 392mm
Net Weight: 5.3 kg (11 lb 11 oz)
Finish: Black
Sold as: Single

WS2-W12 (Tier 2)
Frequency Response (-6dB): 25–250 Hz
Sensitivity: 89 dB
Nominal/Minimum Impedance: 3 Ohms / 3.0 Ohms
Max Usable SPL (Peak): 115.3 dB (with IA500-S)
Continuous Power Handling: 500 W (tested with IA500-S)
Recommended Amplifier Power: 500 W (IA500-S)
Bass Alignment: Sealed with dual multi-length cabinet
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 12" (305mm) Low Profile, High Linear-Excursion RST II C-CAM Driver
Mounting Depth: 87mm (3 7/16")
Installation Box External Dims: 1950 x 351 x 111mm
Frame External Dims: 351 x 351 x 16mm
Recommended Wall Thickness: 12.5–40mm
Packed Dimensions: 138 x 600 x 420mm
Net Weight: 27.5 kg (60 lb 10 oz)
Finish: Black
Sold as: Single

WS3-W12 (Tier 3)
Frequency Response (-6dB): 23–250 Hz
Sensitivity: 88.5 dB
Nominal/Minimum Impedance: 4 Ohms / 4.0 Ohms
Max Usable SPL (Peak): 116.1 dB (with IA750-2)
Continuous Power Handling: 750 W (tested with IA750-2)
Recommended Amplifier Power: 750 W (IA750-2)
Bass Alignment: Sealed with triple multi-length cabinet
Recommended Low Pass Filter: 32–250 Hz
Drive Unit: 1x 12" (305mm) Low Profile, High Linear-Excursion RST II C-CAM Driver
Mounting Depth: 90mm (3 9/16")
Installation Box External Dims: 1981 x 355 x 113mm
Frame External Dims: 351 x 351 x 16mm
Recommended Wall Thickness: 12.5–40mm
Packed Dimensions: 138 x 630 x 420mm
Net Weight: 36.7 kg (80 lb 15 oz)
Finish: Black
Sold as: Single

Engineered for unmistakable Impact

Monitor Audio

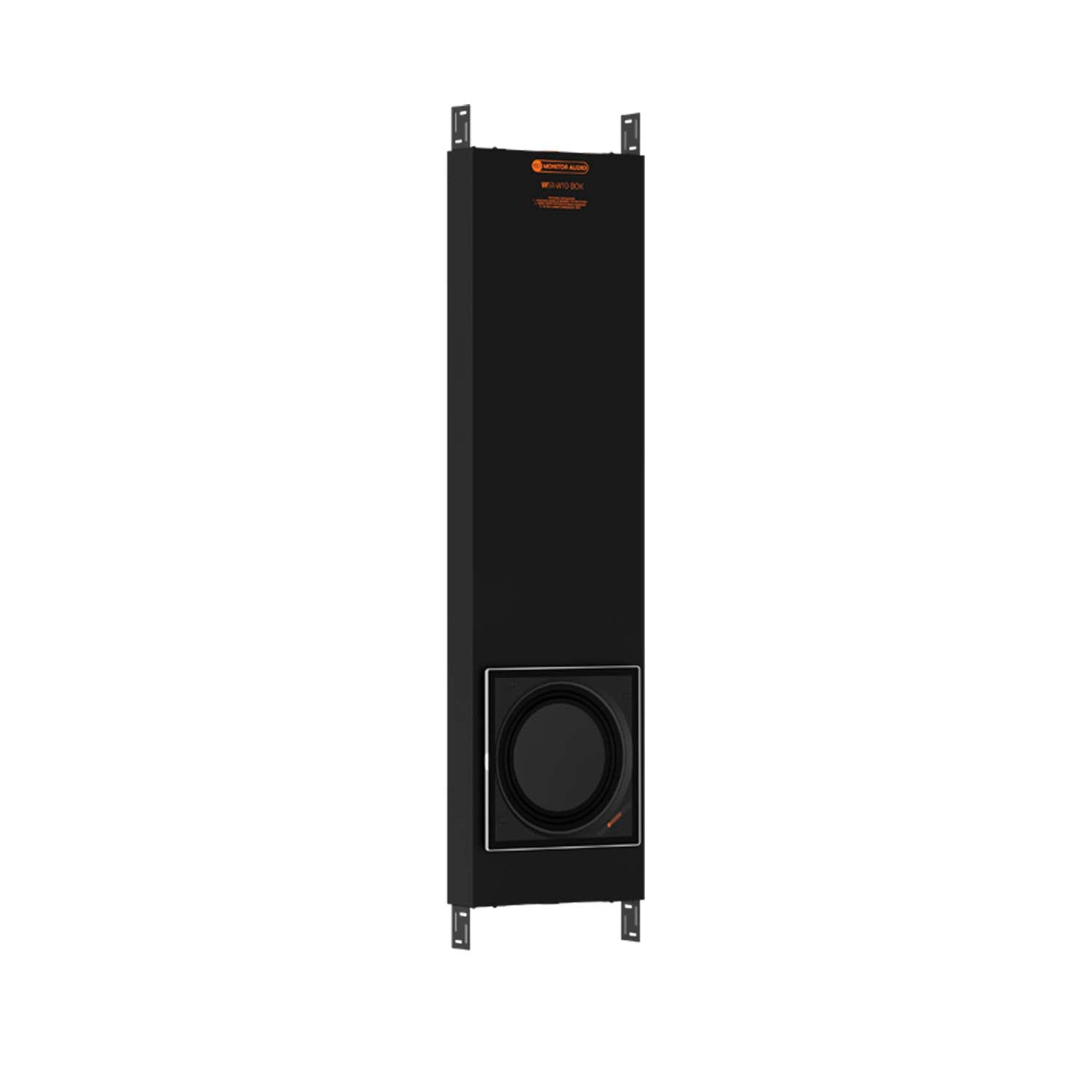

WS1-W10 — Tier 1

The WS1-W10 combines a 10-inch C-CAM bass driver with the flexibility to suit both pre-construction and retrofit installations. It can be installed with or without its dedicated rear enclosure, while the optional bespoke enclosure optimises bass performance and helps reduce unwanted vibration.

With a 500-watt IA500-S DSP amplifier, the WS1-W10 delivers powerful, controlled bass with intelligent tuning. Its low-profile magnetic grille and Tri-Grip II fixings allow it to blend discreetly into the wall.

With the dedicated rear enclosure, frequency response extends down to 27Hz, providing impressive low-frequency performance from a remarkably compact and unobtrusive installation.

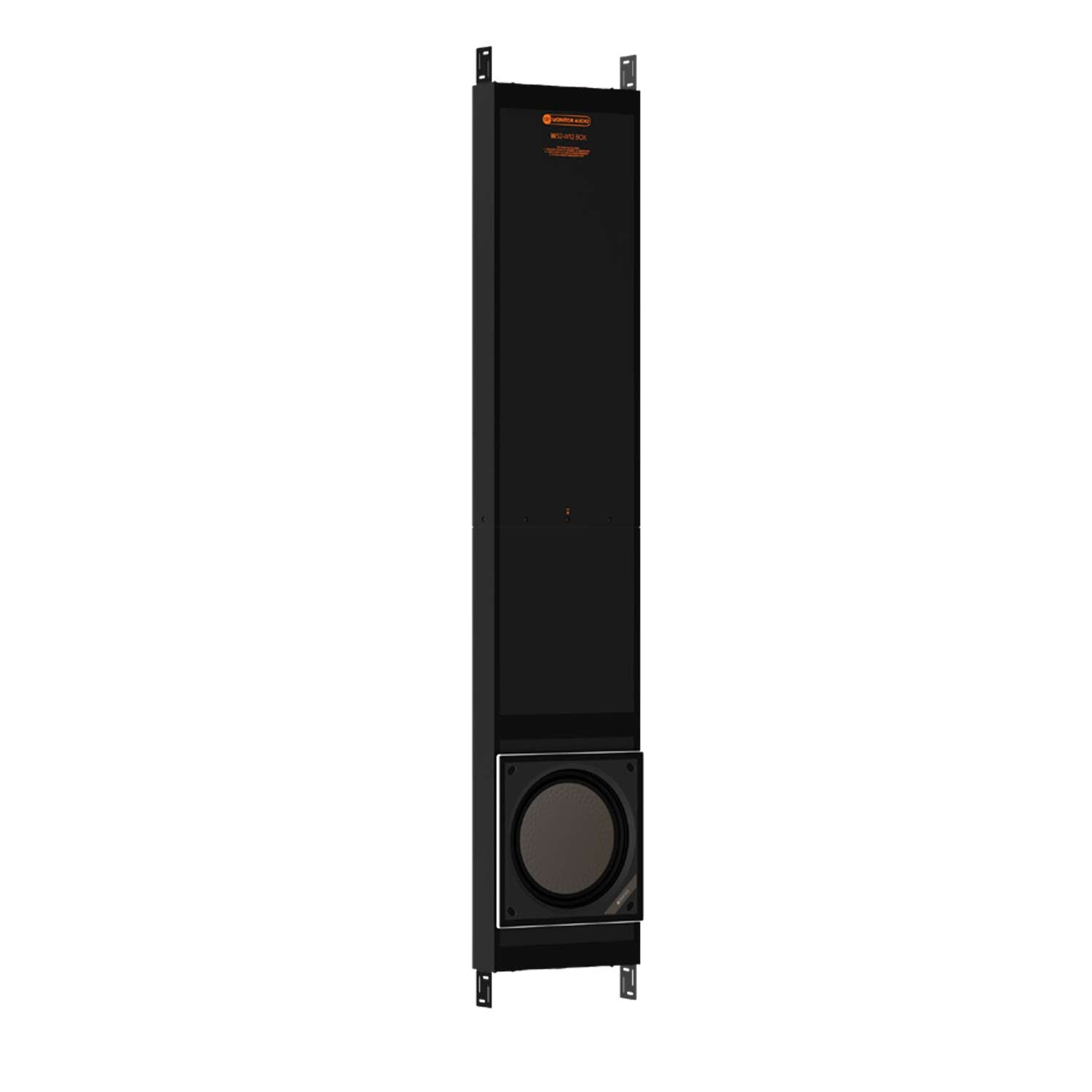

WS2-W12 — Tier 2

Stepping up to Tier 2, the WS2-W12 introduces a low-profile, high-excursion 12-inch C-CAM RST II driver and a powerful motor system for fast, precise and pistonic bass.

Designed for pre-construction installations, its bespoke rear enclosure incorporates integral partitions to reduce standing waves while providing the optimum acoustic volume for the driver. Supplied isolation brackets and a low-profile magnetic grille make installation both secure and discreet.

The WS2-W12 is powered by a 500-watt DSP amplifier, delivering up to 115.3dB peak SPL and a frequency response extending to 25Hz.

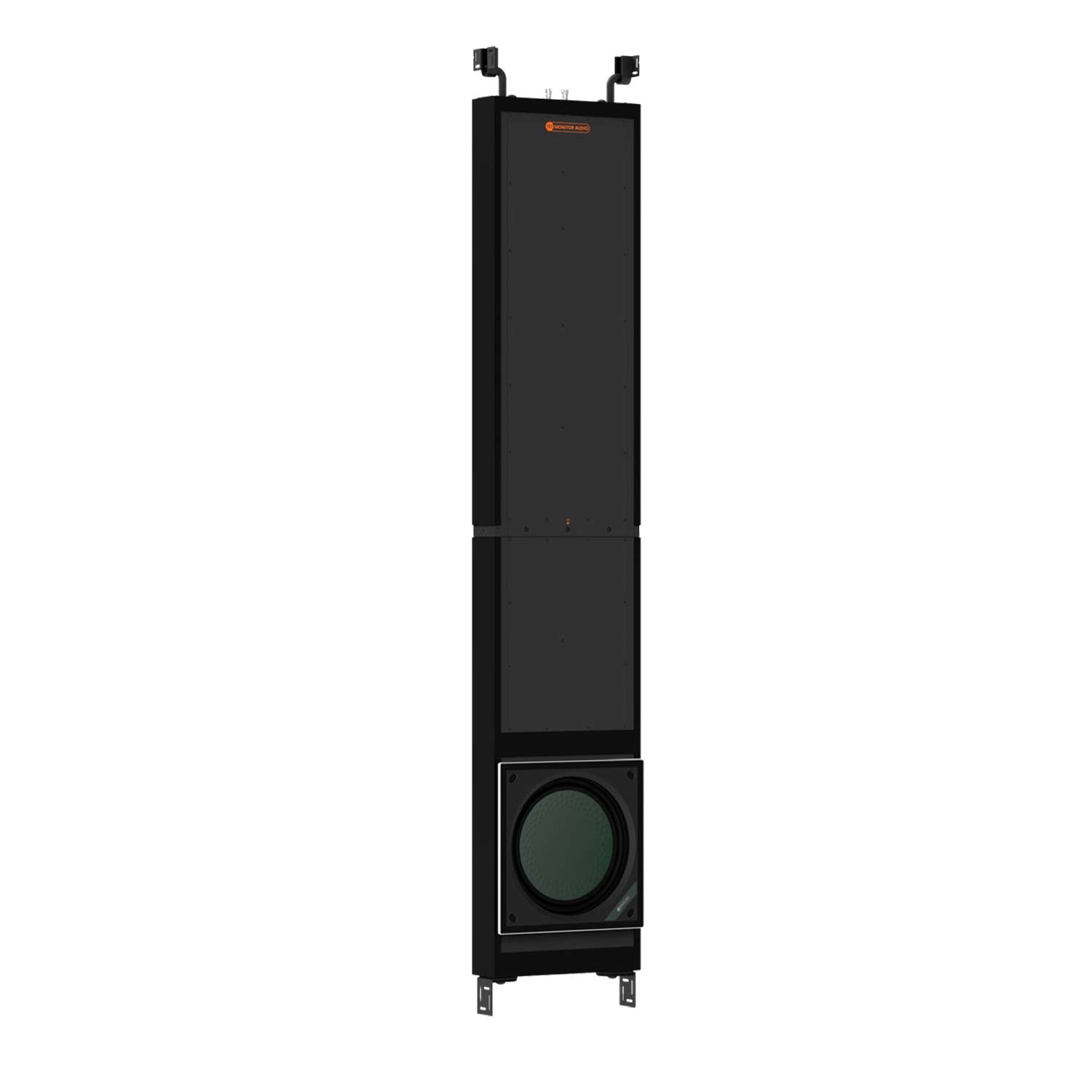

WS3-W12 — Tier 3

At the top of the range, the WS3-W12 is designed for the most demanding installations and delivers reference-level in-wall subwoofer performance.

Its 12-inch, high-excursion RST II C-CAM driver combines advanced cone geometry with a high-output motor system to produce powerful, fast and deeply controlled bass. The bespoke rear enclosure uses a combination of metal, wood and internal bracing, carefully tuned to maximise internal air volume, minimise vibration and enhance low-frequency extension.

Driven by a 750-watt IA750-2 DSP amplifier, the WS3-W12 delivers up to 116.1dB peak SPL, with frequency response extending down to 23Hz. It represents the ultimate Creator Series in-wall subwoofer solution for serious home cinema and high-performance audio installations.
