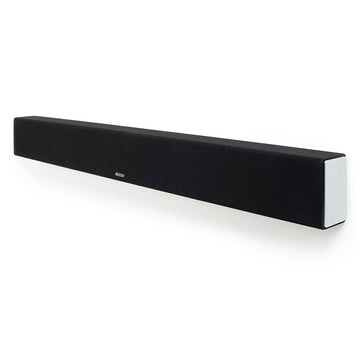

Monitor Audio SB-3 Soundbar

$1,199.00

Free Delivery in NZ
for orders over $100 or $5 under $100.

Product Description

High Performance Soundbar

The Monitor Audio SB-3 is custom-built for screen sizes above 60" and features three separate driver arrays for left, centre, right channels in a single cabinet. Twin C-CAM® bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.

In larger rooms the Monitor Audio SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.

Features

  • C-CAM® (Ceramic-Coated Aluminium/Magnesium) bass/mid driver per channel
  • C-CAM gold dome tweeters per channel
  • Auxiliary Bass Reflex (ABR) per channel
  • Three separate driver arrays for left, centre, right channels in a single cabinet
  • Optional dedicated wall bracket
  • Integrated Silicon feet provide a secure cabinet-top mounting alternative.

In-store now!

Specifications

  • Frequency Response (-3dB): 80Hz – 30kH
  • Sensitivity (1W@1M): Left and Right Channels - 84dB, Centre Channel - 87dB
  • Nominal Impedance (ohms): 8
  • Power Handling Single - R.M.S. (W): Left and Right Channels - 40, Centre Channel - 80
  • System Power Handling - R.M.S. (W): 100 (High pass filter set to 100Hz)
  • Recommended Amp Requirements (W): 30 - 100
  • Recommended High Pass Crossover Frequency: 80 - 120Hz
  • Maximum SPL (dBA): 104 (108.8 all channels driven)
  • Bass Alignment: Left and Right Channels - 2 x Auxiliary Bass Reflex (ABR) Loading, Centre Channel - 2 x Auxiliary Bass Reflex (ABR) Loading
  • Drive Unit Complement: Left and Right Channels - 2 x 4” (100mm) C-CAM® cone bass/mid driver, 2 x 1” (25mm) C-CAM gold dome tweeter, Centre Channel - Left and Right Channels: 2 x 4” (100mm) C-CAM® cone bass/mid driver, 1 x 1” (25mm) C-CAM gold dome tweeter
  • Cabinet Dimensions (HxWxD): 145 x 1310 x 89mm
  • External Dimensions Inc Bracket (HxWxD): 145 x 1310 x 100mm
  • Weight: 9.1Kg
