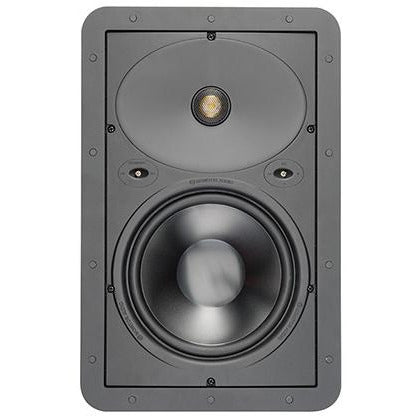

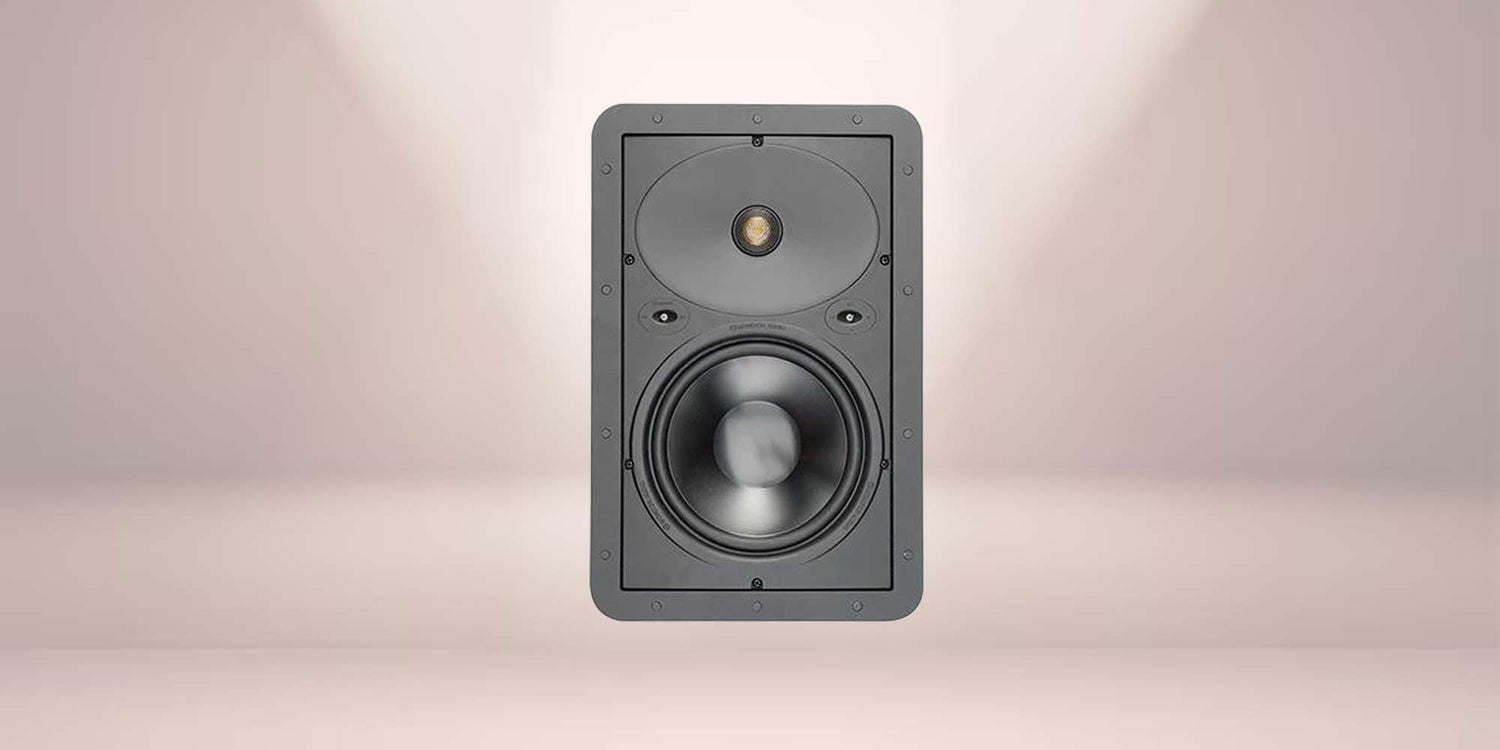

Trimless 8", 120w 2 way In-wall Speaker (Each).
An 8-inch C-CAM® bass driver and a more highly specified version of Monitor Audio’s C-CAM gold dome tweeter offer an extended high-frequency response to 30kHz, as well as higher output and power handling capacity than the 100 Series 2-way models. Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3dB / 0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.
- 2-way design with pivoting C-CAM tweeters (15 degrees of play).
- High overall efficiency.
- High frequency level adjustment (3dB).
- Audio match with CP range 100 models, Climate 10, Bronze BX and Radius Series hi-fi speakers.
- Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Fire retardant to UL-94 VO rating.
- Splash and humidity proof for installation in shower room or pool areas.
- Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
- Frequency Response: 45 Hz - 30 KHz
- Sensitivity (1W@1M): 90 dB
- Impedance (Nominal): 6 ohms
- Maximum SPL (Single unit in free space): 111.6 dBA
- Power Handling (RMS): 120 W
- Recommended Amp Requirements: 30 - 120 W
- Drivers: 1 x 8” C-CAM® cone bass driver, 1 x 1” C-CAM Pivoting gold dome tweeter
- Overall Dimensions: (including grille) (H x W) 441 mm x 288 mm
- Overall Depth: (including grille) 97.5 mm
- Cut-Out Dimensions: (H x W) 387 mm x 234 mm
- Mounting Depth: 93 mm
- Controls: +3db / 0dB / -3dB High frequency level switch Boundary compensation
- Fixing Type: 6 position Tri-Grip dog fixings
- Cable Connection: Gold plated ‘push’ type terminals
- Construction Material: Mineral filled ABS plastic (UL94/V0 rated, RoHS compliant)
- Weight: 3.1 Kg
