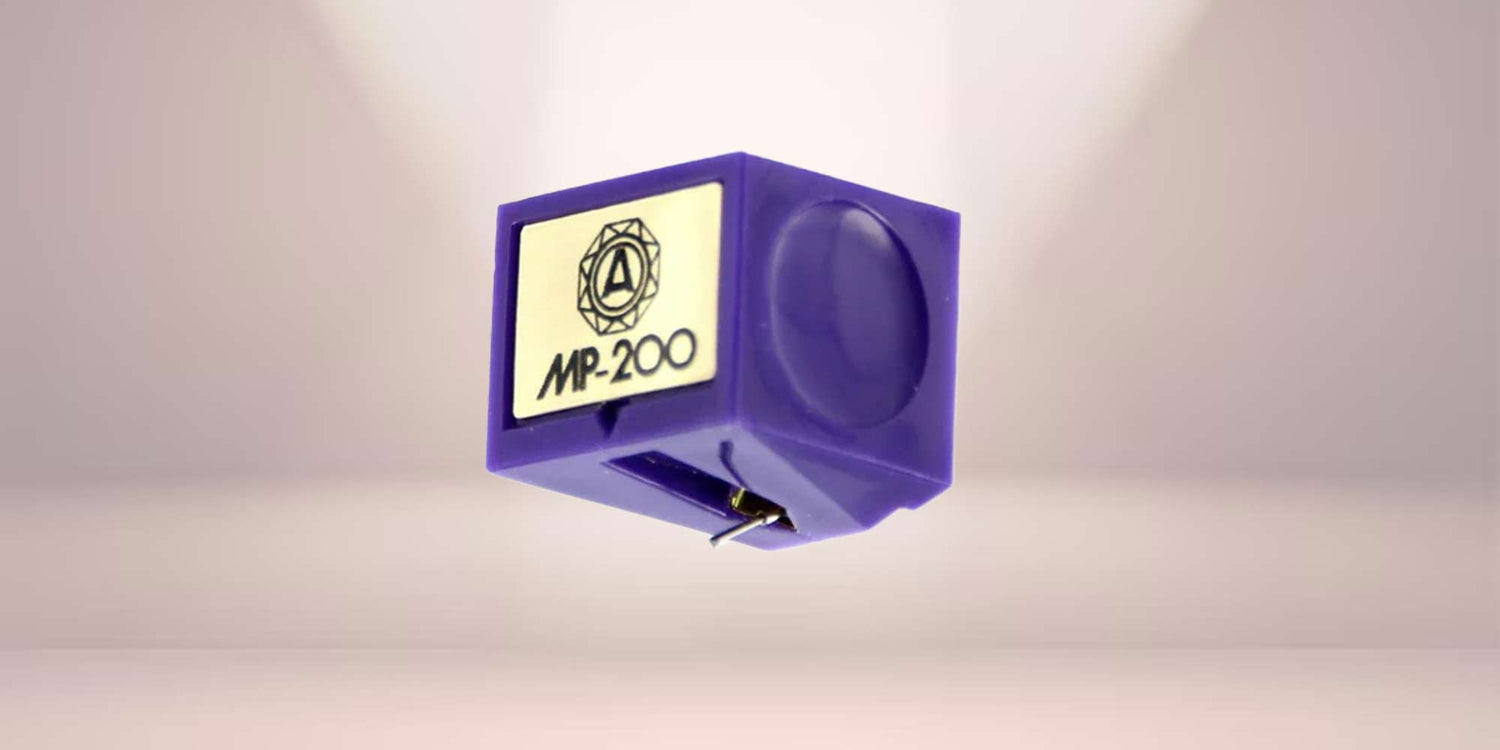

Nagaoka MP-200 Replacement Stylus

Sold Out



User-replaceable stylus for MM Cartridge

The Nagaoka MP200 phono cartridge offers superior clarity, detail and dynamic contrast.


• SuperFine polished special elliptical diamond stylus

• Powerful samarium cobalt magnet

• Hardened low-mass, tapered aluminium alloy for very high fidelity

• Carbon Fibre-reinforced plastic shoe

• Anti-ferro magnetic permalloy shield casing

Type: Moving Magnet

Cantilever: High strength Boron

Stylus type: SuperFine elliptical diamond

Weight: 6.5 grams

Output voltage: 4.0 mV (5cm/sec)

Frequency characteristic: 20 - 23,000 Hz

Channel balance: Better than 1.5 dB

Channel separation: Better than 25 dB at 1 kHz

Recommended loading: 47,000 ohms

Dynamic Compliance: 7.2 x 10-6 cm/dyne

Static Compliance: 20 x 10-6 cm/dyne

Tracking force range: 1.5 - 2.0 g

Break-in period: 30 hours
