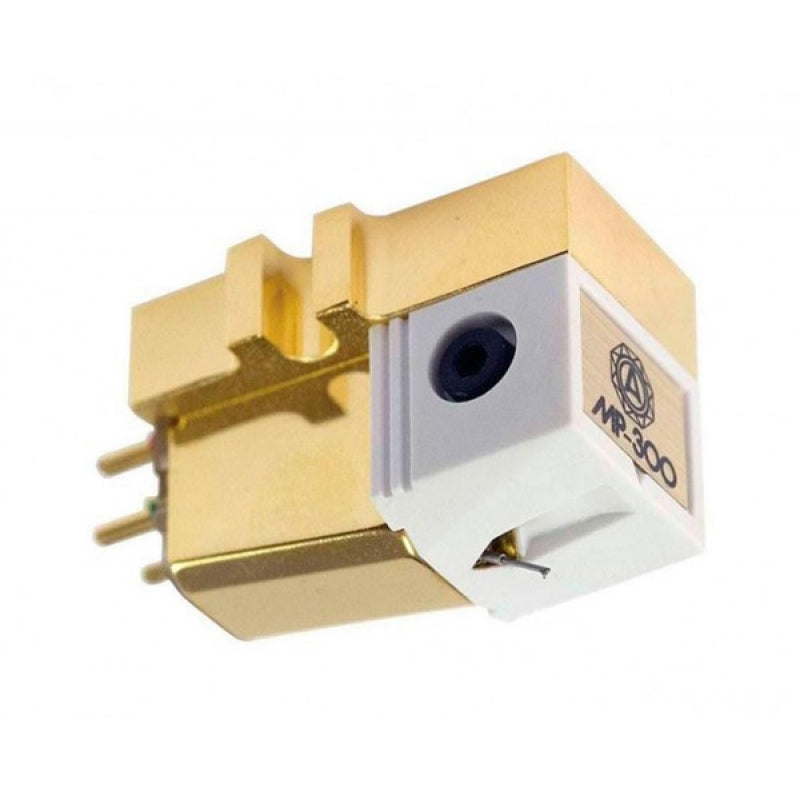

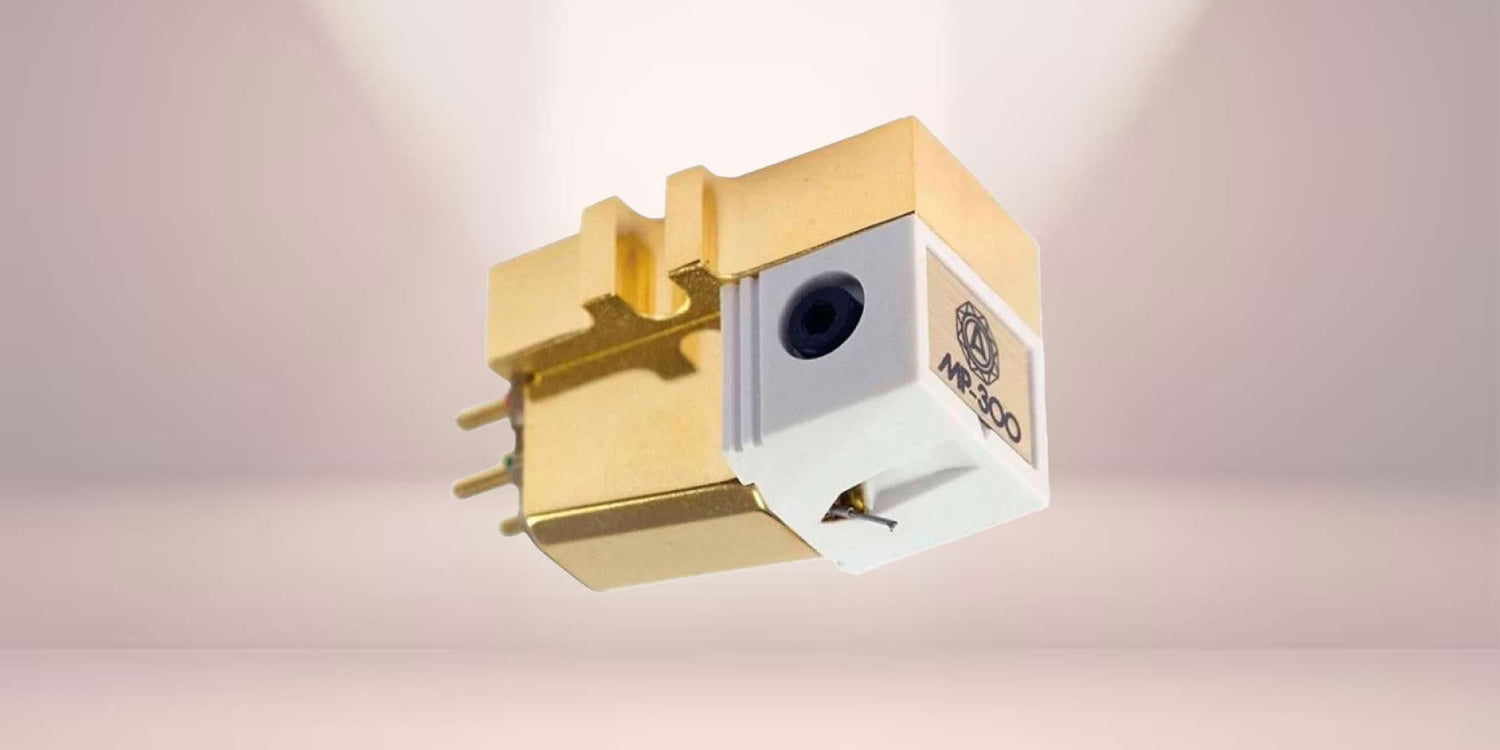

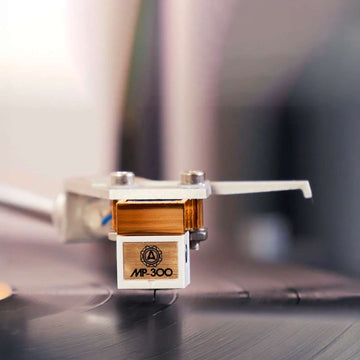

Nagaoka MP-300 Phono Cartridge

$1,499.00

View All Nagaoka

In Stock, Available Now

Details

Specifications

MM Cartridge

The Nagaoka MP-300 phonograph cartridge offers sophistication, refinement and high-definition at all audible frequencies thus making it one of our favorite phonograph cartridges. It is nimble on the grooves and easy on the ears so you keep on wanting to listen. The Nagaoka MP300 is an advanced technology cartridge that is destined to become a classic out of the box.

"...I thought this cartridge combines elements of the Ortofon 2M Bronze’s detail retrieval and excellent transient response with the BPS’s warmth and overall relaxed presentation. It produced greater detail resolution and finer images on a wider, deeper better-defined soundstage than did the Blue Point but was less dry and analytical than the 2M Bronze. Its overall balance was among the most pleasing of any of these cartridges, regardless of price." - Michael Fremer's review of 9 different phono cartridges.

Features

• Exclusive super rigid body for ultra resonance and superb fidelity

• Superfine polished special elliptical bonded diamond stylus

• Powerfull samarium cobalt magnet

• Hardened low-mass, high strength boron cantilever

• Carbon fibre reinforced plastic shoe

• Anti-ferro magnetic permalloy shield casing

Type: Moving Magnet

Cantilever: High strength Boron

Stylus type: SuperFine elliptical diamond

Weight: 8.0 grams

Output voltage: 3.0 mV (5cm/sec)

Frequency characteristic: 20 - 25,000 Hz

Channel balance: Better than 1.0 dB

Channel separation: Better than 25 dB at 1 kHz

Recommended loading: 47,000 ohms

Dynamic Compliance: 7.2 x 10-6 cm/dyne

Static Compliance: 20 x 10-6 cm/dyne

Tracking force range: 1.3 - 1.8 g

Break-in period: 30 hours

Replacement stylus: JN-P300
