TAD Compact Evolution One Loudspeaker

Name: TAD Compact Evolution One Loudspeaker
Brand: TAD
Price: 65000.00 NZD
Availability: InStock

$65,000.00

Sold out

Product variants

The TAD Compact Evolution One (CE1) speakers are high-end standmount monitors that deliver floorstanding performance in a compact form. Engineered with TAD’s signature Coherent Source Transducer (CST) driver and a Multi-layered Aramid Composite Shell (MACS) woofer, the CE1 ensures exceptional clarity, imaging, and dynamic range. Its structurally inert cabinet, crafted with SILENT technology and reinforced with aluminum side panels, minimizes resonance for pure, accurate sound. Additional features like the Bi-Directional ADS port and minimal baffle design enhance dispersion and bass response, making the CE1 a luxurious and technically advanced loudspeaker for discerning listeners.

Specifications

Type:
3-way, bass-reflex bookshelf speaker system

Drive Units:
Woofer: 18cm (7 1/16 in.) cone;
Midrange/tweeter: concentric 14 cm (5 1/2 in.) magnesium cone and 3.5 cm (1 3/8 in.) beryllium dome

Performance Data:
Frequency response: 34Hz to 100kHz
Crossover frequencies: 250 Hz and 1.8 kHz
Maximum input power: 200W
Sensitivity: 85dB (2.83V, 1m)
Rated impedance: 4Ω

Weight:
Weight: 29kg (63.9 lb) per unit
Dimensions: 287mm (W) × 510mm (H) × 447mm (D)

Accessories:
Woofer grille, short cables x 2, non-slip pads x 4, cleaning cloth, owner’s manual

The finest example of speaker engineering I've ever encountered.

Stereophile

Natural and clear mid to high frequencies

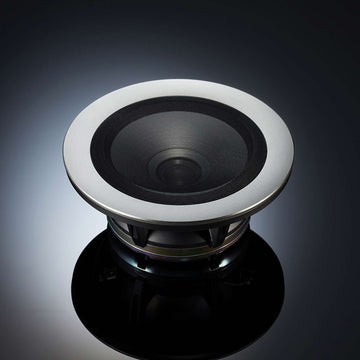

The CE1TX boasts TAD’s proprietary CST (Coherent Source Transducer) Driver, which localizes sound sources for more natural musical reproduction. In this ingenuous design, the directivity of the concentrically mounted midrange and tweeter is finely controlled and perfectly aligned to eliminate even the smallest disruption of sound. Just like tweeters found in TAD’s top-of-the-line R1TX and CR1TX speaker systems, the CETX1’s tweeter uses a beryllium diaphragm manufactured with our proprietary vapor-deposition technique. The midrange features a newly developed diaphragm made of magnesium, which reproduces a clearer, distortion-free midrange. The result is consistent sound image localization and a natural sound field reproduction over a ultra-wide frequency range from 250 Hz to 100 kHz.

Richer & smoother mid to low range

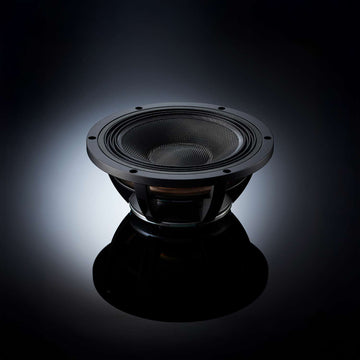

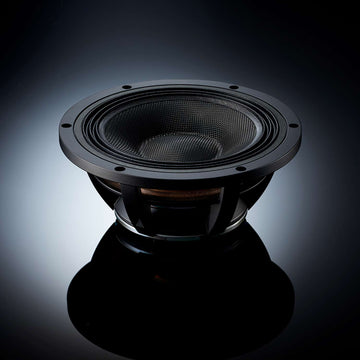

We have upgraded the diaphragm for the 18 cm woofer to a MACS II* diaphragm. It is made of five layers of woven and non-woven fabric to optimize the vibration characteristics of the shell-shaped diaphragm that integrates the center cap and cone into a single piece. Other ingenious woofer design features include a molded rear cradle that fully conveys the powerful driving force of the large neodymium magnet, and the turbulence-suppressing aerodynamic design of the rear side. Our attention to detail even extends to the material, configuration, and finish of the surround: The corrugated surround is coated with damping material, which is also found in our professional speaker units. All these refinements have resulted in a richer and clearer bass and the smooth, coloration-free reproduction in the mid-to-low frequency range.

Impressively natural & rich bass

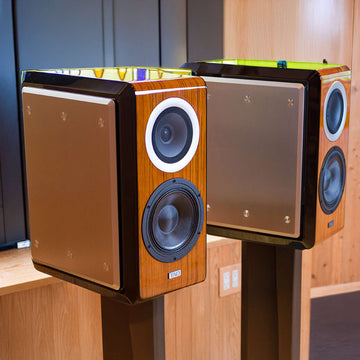

Another innovative approach to achieving ideal sound is the Bidirectional ADS* Port. It places slit-shaped ports (ducts) in right and left side-panels with flared openings to the front and rear to allow air to flow smoothly through them. The symmetrically placed port openings, both laterally and along the front-rear axis, reduce port noise and keep internal standing waves from escaping from the ports. You will be amazed at how such a compact speaker can deliver a roomful of rich, powerful bass.

Mirror finished enclosure

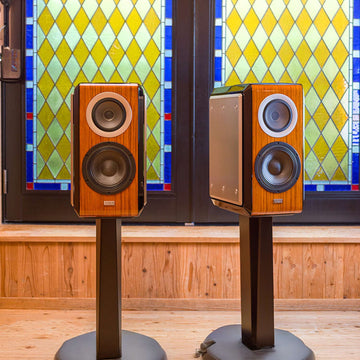

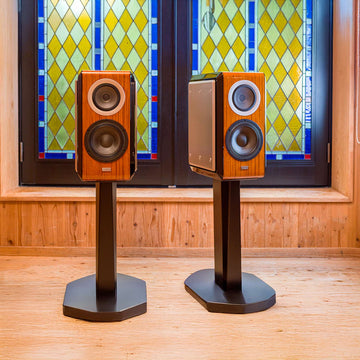

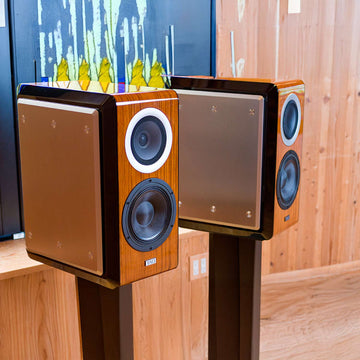

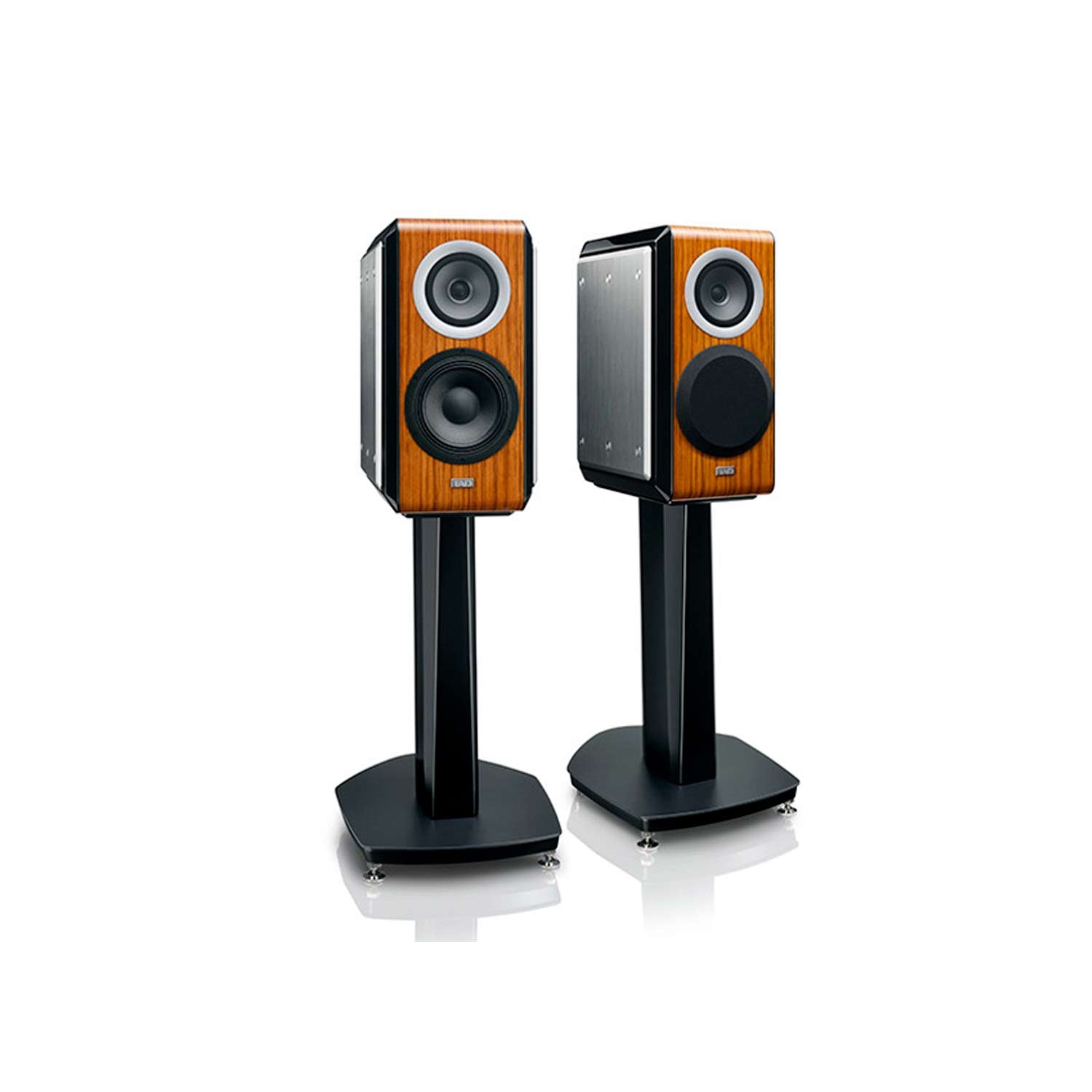

The CE1TXｰWN is housed in the classy grain wood enclosure to add a mirror finish that gives the illusion of a wet surface and makes the grain stand out.

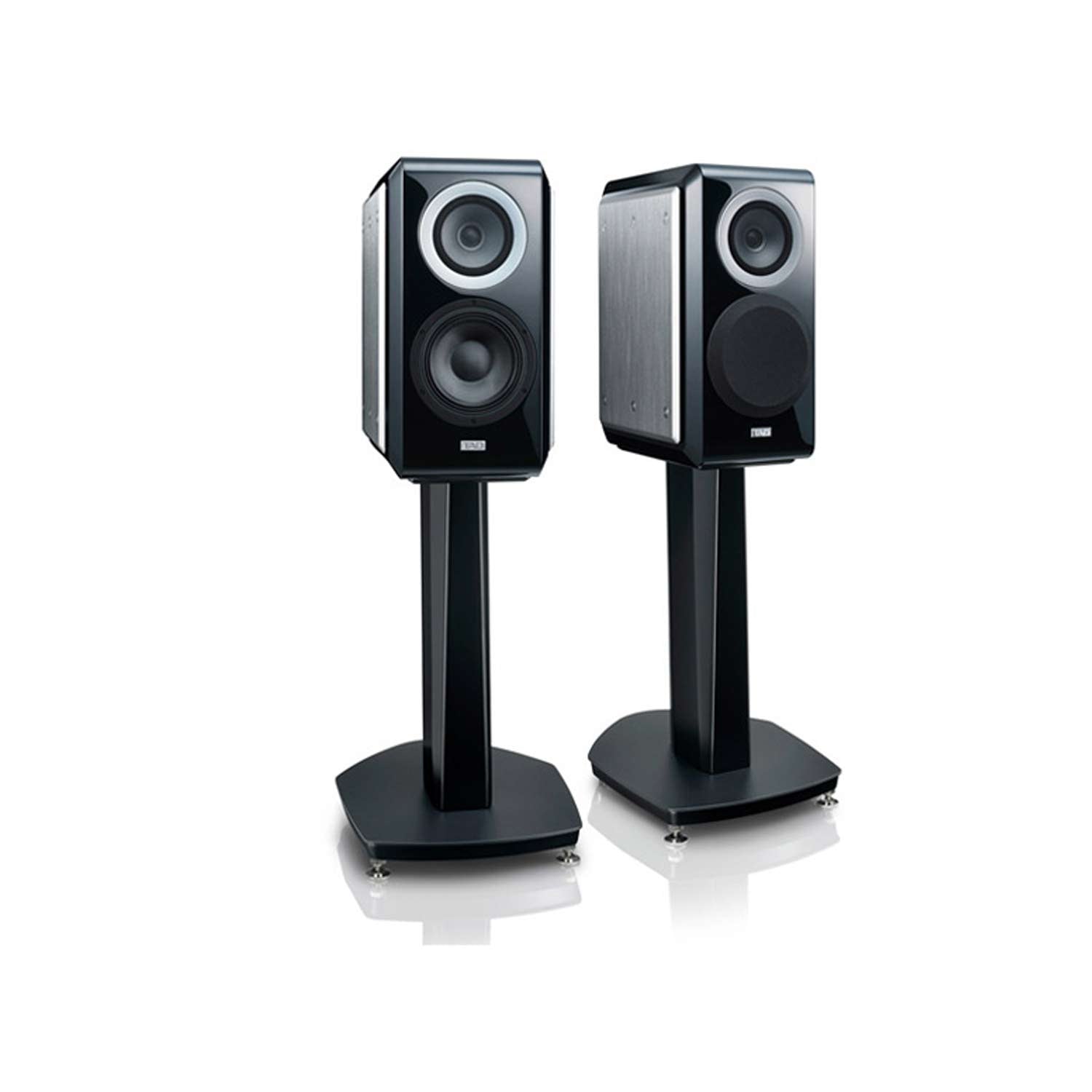

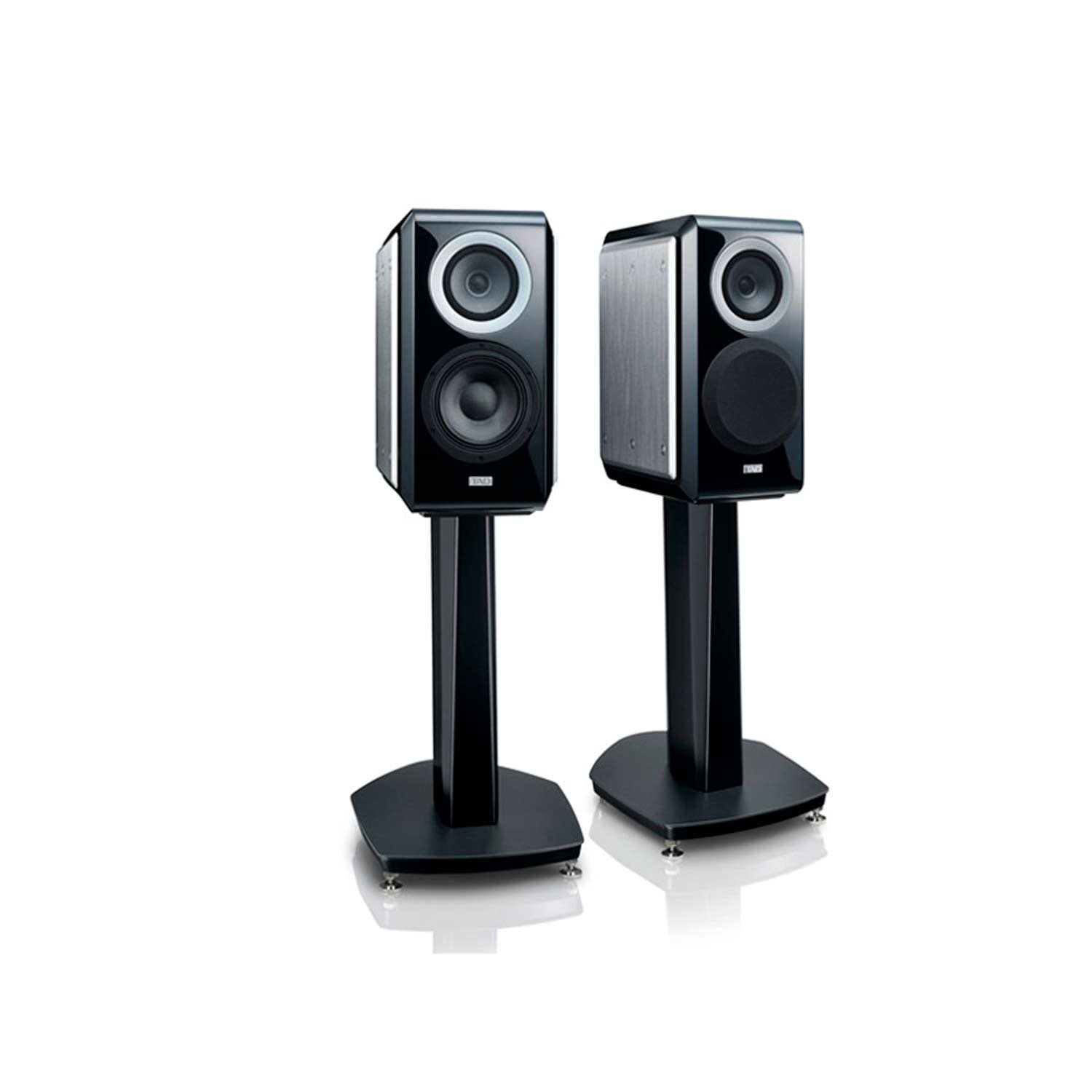

The enclosure of the TAD-CE1TX-K has a classy mirrored piano-black finish.

In the manufacturing line, skilled artisans spend hours finishing each enclosure with meticulous care, beginning with applying high-grade, clear coating to the surface and buffing the base coating and finishing with surface polishing.

The finest example of speaker engineering I've ever encountered. Absolutely Class A." And absolutely my Editor's Choice.

This loudspeaker’s signature CST point-source array is a gem, with fabulous on- and off-axis response and terrific coherence from the upper bass right up through the treble. It also boasts high source transparency, uncolored bass extension, and neutral frequency response.
