Nordost Tyr II Digital Interconnects

TYR2 DIGITAL INTERCONNECTS

Tyr 2 S/PDIF and AES/EBU digital leads are produced using cutting-edge technology, adherence to standards, and precision in workmanship. This extra attention given to our cables during the production phase guarantees the tight tolerance of characteristic impedance necessary to ensure greater musical detail, virtually unimpeded by timing errors or destructive jitter. At their base, both the 75 Ohm and 110 Ohm cables are constructed using silver-plated, solid core, conductors which are suspended in Nordost’s patented Dual Mono-Filament technology, creating a virtual air dielectric. They also both benefit from the implementation of mechanically tuned lengths, which have been meticulously calculated to reduce internal microphony and high frequency impedance resonance in the cable. The combination of these technologies yields cables with the extreme bandwith necessary to accomplish zero-loss data transfer.

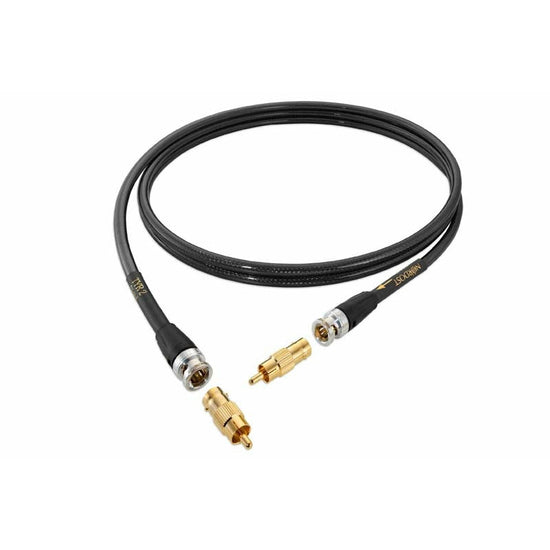

The function of these two cables is dictated by their differences in design and build. Tyr 2 75 Ohm S/PDIF Digital Interconnects employ a coaxial design and are terminated with gold-plated Neutrik BNC connectors for correct impedance matching. All Tyr 2 75 Ohm Interconnects are supplied with gold-plated RCA adapters to accommodate their function. Tyr 2 110 Ohm AES/EBU Digital Interconnects use a twinaxial design and are terminated with gold-plated Neutrik XLR connectors, ensuring that they maintain constant impedance throughout the cabling, as well as across terminations.
