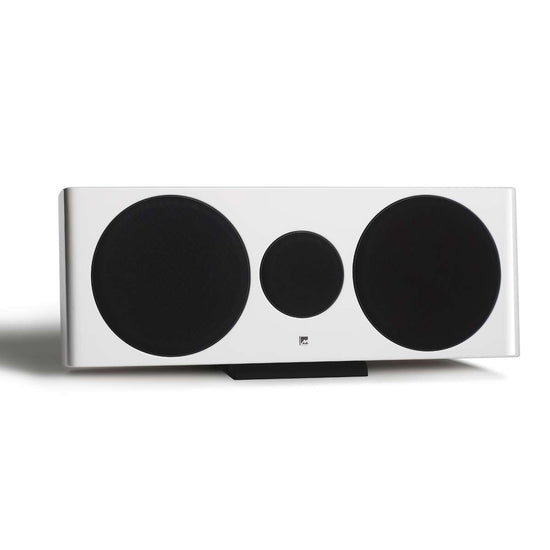

Designed to be versatile within the home, the DSP3300 is an ideal building block in a compact, high performance cinema system. This speaker is an ideal centre channel, to complement a pair of compact and elegant DSP3200s or M6s.
A testament to the effectiveness of our pioneering DSP technology, even the compact DSP3300 cabinet houses three drivers, plus the advanced electronics necessary to deliver room-filling sound equal to the performance level of a conventional speaker four times the size.
The DSP3300’s precision-manufactured cabinet is designed to allow the speaker to be placed horizontally or vertically with no reduction in sound quality. The design is also suitable for wall mounting giving great flexibility.

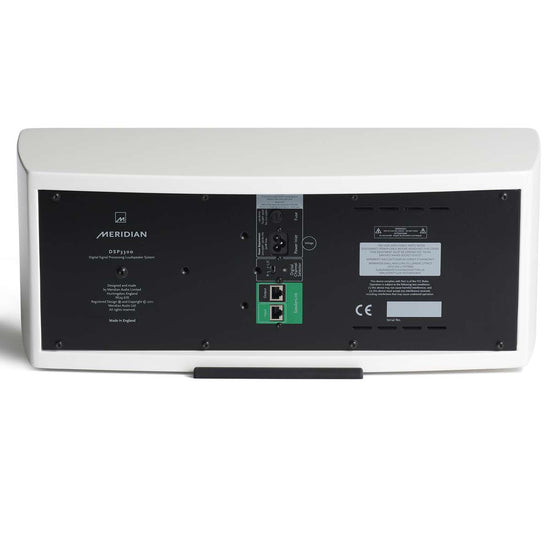

AUDIO INPUTS: Meridian Speakerlink (RJ45)
AUDIO OUTPUTS: Meridian Speakerlink (RJ45
PERFORMANCE: Peak SPL: 114dB at 1m (music material) Frequency response in-room within 3dB from 45Hz to over 20kHz
AMPLIFIERS: 2 x 75w (150 w)
BASS DRIVERS: 2 x 165mm polypropylene long-throw bass-drivers
WIDE BAND DRIVER: 1 x 85mm aluminium cone wide-range driver
CONTROLS: A selector switch allows each DSP3300 to be set up as Left/Centre or Right loudspeaker in a system.
DSP SPECIFICATION: 2 x Freescale 56367 running at 150MHz 2 x 24-bit Multi-bit delta-sigma DACs with 128x oversampling Crossover minimum-phase at 2.6kHz Bass protection User tone controls. Hybrid analogue/digital volume control
DISPLAY: Rear-mounted LED for status
DIMENSIONS / WEIGHT: HEIGHT:206mm [8.1in] (Horizontal orientation & without optional rubber stand-pad) WIDTH: 555mm [21.9in] (Horizontal orientation & without optional rubber stand-pad) DEPTH: 235mm [9.25in] (Horizontal orientation & without optional rubber stand-pad) WEIGHT: 11.5kg [25.3lbs]
