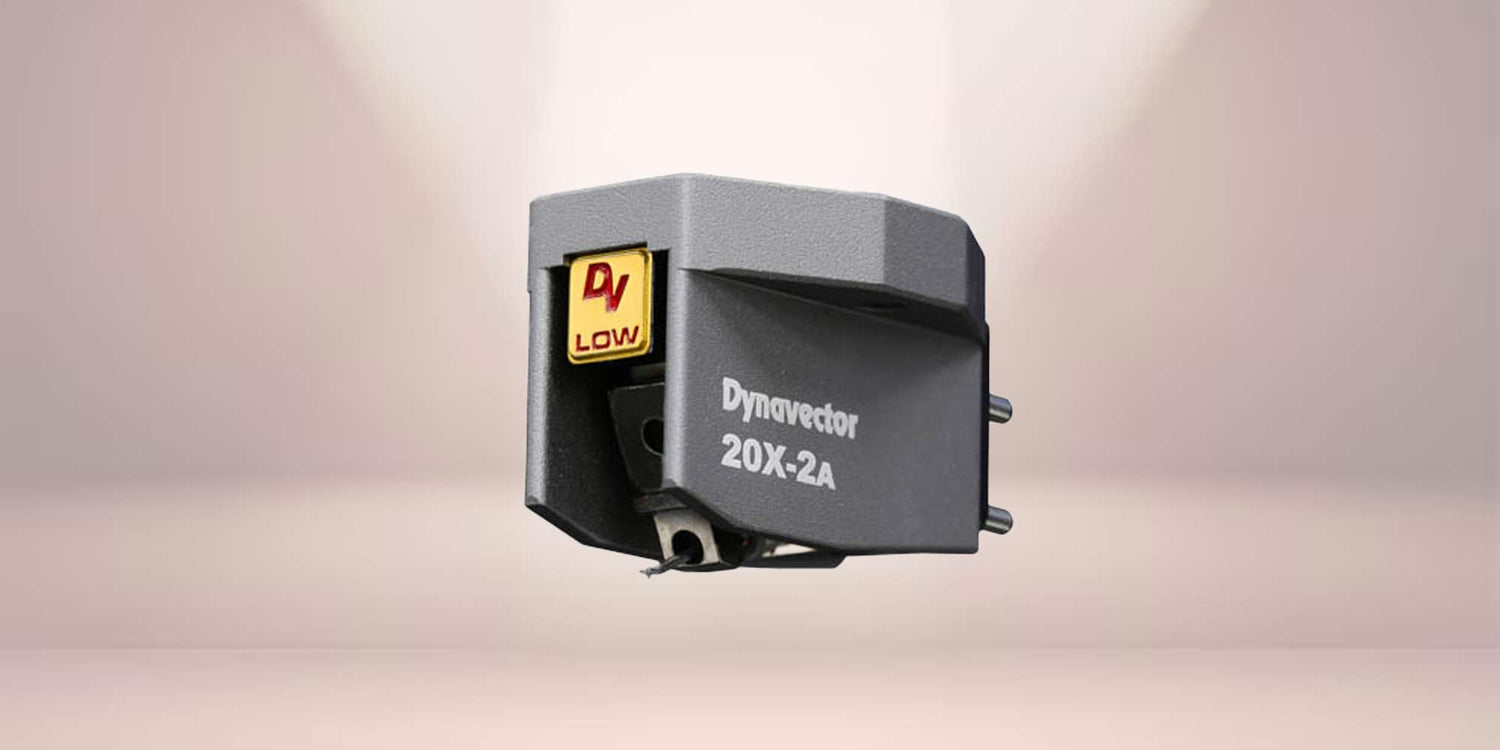

Dynavector DV 20X2A H/L Phono Cartridge

$1,850.00

Sold out

Model: DV-20X2A-H

DV-20X2A-H

DV-20X2A-L

Product variants

The DV 20X2A uses the same base structure as the higher-end models XX-2A and Te Kaitora Rua, it has a solid aluminium alloy body, hard aluminium cantilever and a Micro-Ridge stylus tip.

Quantity

Free Shipping for orders $500+

Specifications

Type: High/low output moving coil cartridge with flux damper and softened magnetism

Output Voltage: 2.8mV (at 1KHz, 5cm/sec.)

Channel Separation: 25 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 - 20,000Hz (± 2dB)

Compliance: 12 x 10-6 cm/dyn

Tracking force: 1.8 - 2.2grams

DC resistance: 150 ohms / 5 ohms

Recommended load: resistance > 1,000 ohms / > 30 ohms

Cantilever: 6mm length, hard aluminium pipe

Stylus: Micro Ridge Nude diamond

Weight: 9.2 grams

This DV 20X2A has 2 types for you to choose from according to your system.

The 20X2A-L (low output model) has the output as a regular MC cartridge while the 20X2A-H (high output model) is an MC cartridge that suitable for the most MM input.

This cartridge is ideal for not only those who want to fully enjoy the sound from an MC cartridge, but also those who would like to easily experience the charms of an MC cartridge without the need to use an MC step up transformer.

High output/low output

The high output model 20X2A-H achieves an output voltage of 2.8mV by using Dynavectors legendary coil winding technology. By winding the coil many times with ultra-fine wire, the cartridge can obtain a high output equivalent to an MM cartridge. Thus allowing the MC cartridge to be connected to PHONO terminal for MM input without the need for a head amplifier or step-up transformer.
The low output model 20X2A-L has a 0.3mV output voltage, using the same PCOCC wires as the higher-end models for the coil. The recommended load impedance of the head amplifier is 30Ω or more, making it compatible with most head amplifiers and MC step-up transformers.
