I/50 Integrated Amplifier

Sold Out


Details

Specifications

COMPACT DESIGN - MUSICALLY SUBLIME

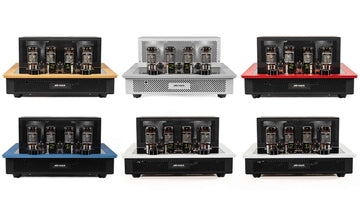

The I/50 Integrated Amplifier is the first product in an all-new series from Audio Research. Functionally simple, visually engaging, and musically sublime - the I/50 takes music listening to a whole new experience. Hand-crafted in Minnesota, the I/50 is built with the same attention to detail as all other Audio Research products - each one even gets its own listening test with sonic designer, Warren Gehl. Available in six colors, the I/50 features Cerakote finishes for a beautiful and long-lasting look. The modular design allows for the installation of two audio modules - a Phono Stage, and a D/A Converter (to come in 2022). The high current, 50 watt per channel amplifier is capable of driving a wide variety of speakers. A headphone jack allows for personal listening time.

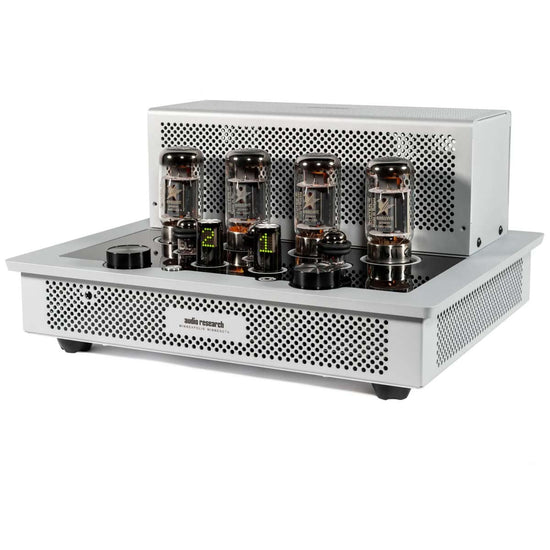

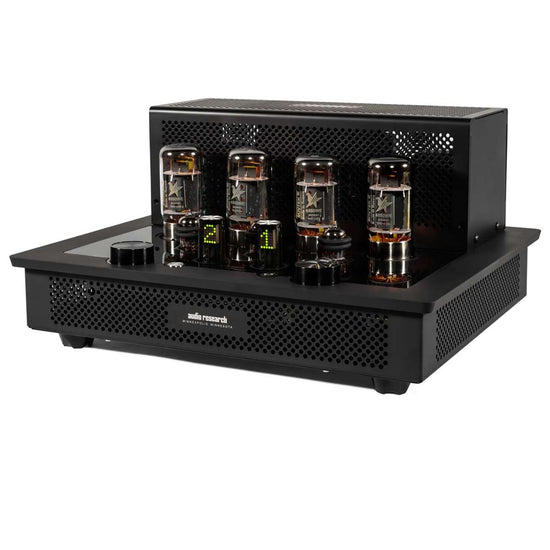

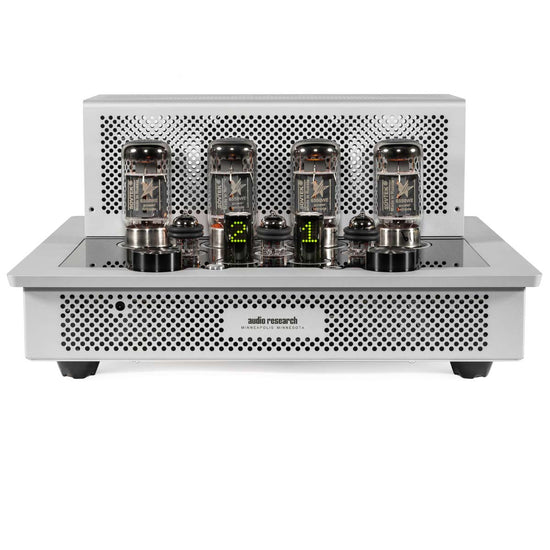

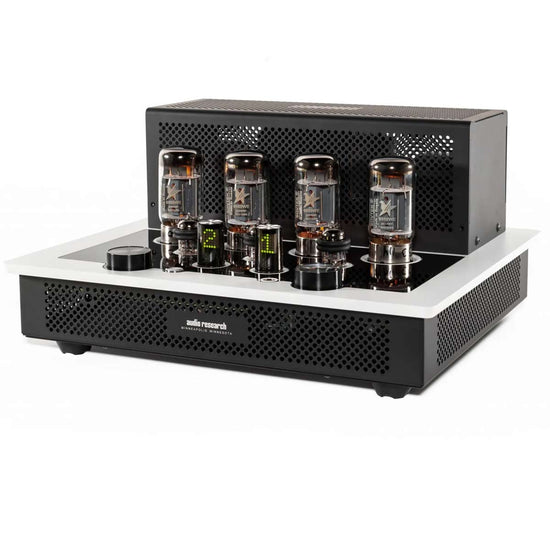

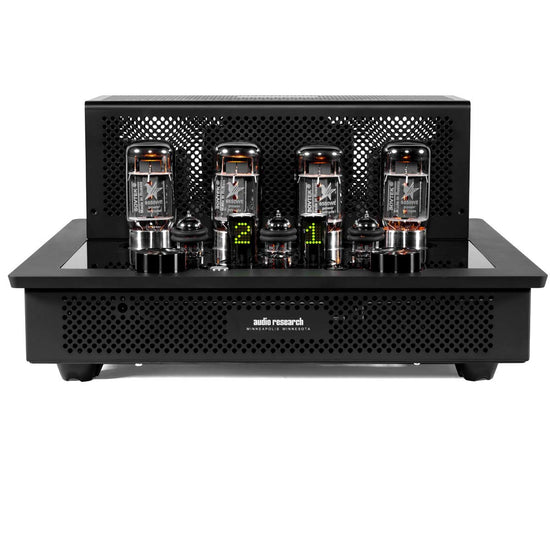

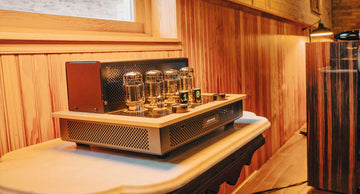

Audio Research I50 integrated amplifier

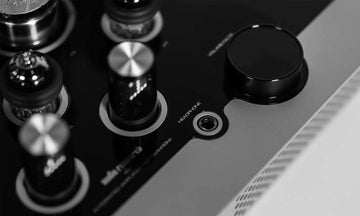

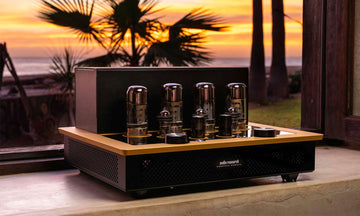

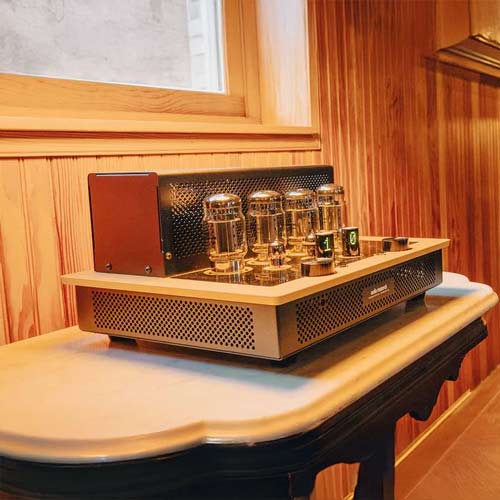

The I/50 is designed to be easy to use, and has three controls on its top panel -  power, Input, and Volume. Two LexieTubes® provide display information for input selection and volume. Two matched pairs of 6550WE vacuum tubes, along with three 6922 tubes, stand in front of the perforated transformer cover. Three single-ended inputs and one XLR input provide connectivity for most systems, along with 4- and 8- Ohm speaker taps to accommodate your speaker of choice. One input can be assigned for pass-through function. A full-function metal remote control provides further functionality and operation. An optional tube cage will be available.

Features

  • 50 Watts per channel
  • 4 Inputs (3SE, 1 XLR)
  • Optional Phono Input Module
  • Optional DAC Module
  • 4 and 8 Ohm speaker connections
  • 2 matched paris 6550WE

Power Output: 50 watts continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 1% per channel, below 0.1% at 1 watt

Power Bandwidth: (-3dB points) 10Hz to 22kHz

Frequency Response: (-3dB points at 1 watt) 7Hz to 30kHz

Input Sensitivity: 1.25V RMS for rated output.

Input Impedance: 100K ohms Balanced, 48K ohms Single Ended

Output Polarity: Non-inverting. Balanced input pin 2+ (IEC-268)

Output Taps: 8 ohms, 4 ohms

Power Requirements: 105-130VAC 60Hz (210-250VAC 50Hz) 252 watts at rated output.

Tubes Required: 2 matched pair 6550WE; 3-6922 (1 input, 2 driver).

Dimensions: Width 16.5” (42 cm) Height 7.25” (18 cm) Depth 13.5” (34 cm)

Weight: 40 lbs (18.1 kg); 51 lbs (23.1kg) shipping weight.
