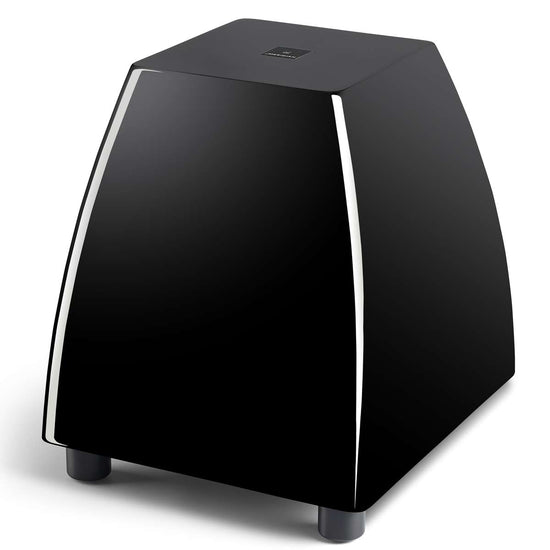

The DSW.2 is designed to provide deep bass in rooms where a compact loudspeaker is required. Featuring a downward-firing woofer, this design tapers at the top reducing the visual impact on its surroundings. All of the connecting cables, SpeakerLink and Power, attach at the bottom of the cabinet, allowing for discreet installations.
The DSW.2 Digital active Subwoofer can integrate seamlessly into many installations that include meridian loudspeakers. Whether used on its own or in multiples, it delivers deep, room-filling bass with control and accuracy. a new long-throw, 12" drive-unit with a massive motor system, paired with a highly-efficient, class-D amplifier, means that the DSW.2 is capable of delivering high levels of sound pressure with precision. its unique and extremely strong cabinet has been specifically tailored to the drive-unit to eliminate vibrations and allow the loudspeaker to reproduce music accurately at high power levels. These features, combined with its elegant form-factor and meridian's suite of on-board technologies, make the DSW.2 the perfect subwoofer in any meridian system.
AUDIO INPUTS: Meridian SpeakerLink connector (RJ45)
AUDIO OUTPUTS: Meridian SpeakerLink connector (RJ45)
PERFORMANCE: Overall distortion typically <0.02% AMPLIFIERS 1 x 600W* Class-D amplifier
BASS DRIVERS 1 x 12in long-throw bass driver, facing downward
CONTROLS Channel selector switch for channel(s) 1, 1+2 or 2Rocker switch selects left-centre-right channel operation LED indicator shows power status *Capable of producing over 600W RMS on music or movie transients
DIMENSIONS / WEIGHT HEIGHT: 445mm [17.5in] (Height on standard feet (recommended for use on a carpeted floor)) 450mm [17.7in] (Height on standard feet plus rubber shock absorber (recommended for use on a hard floor surface)) WIDTH AT BASE: 380mm [15in] DEPTH: AT BASE 430mm [17in]
WEIGHT: 22kg [48.4lbs] POWER IEC mains connector - 550W max *Capable of producing over 600W RMS on music or movie transients
