Monitor Audio CLG-W12 Outdoor Subwoofer

In Stock, Available Now


Details

Details

*Note - These speakers are designed for use with a specialised 100v amplifier such as the Monitor Audio IA800-2C. Please contact us if you require more information.

A subwoofer for the garden

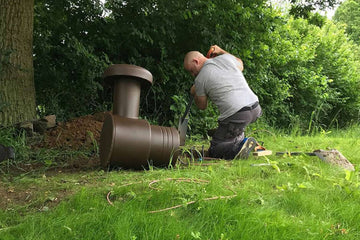

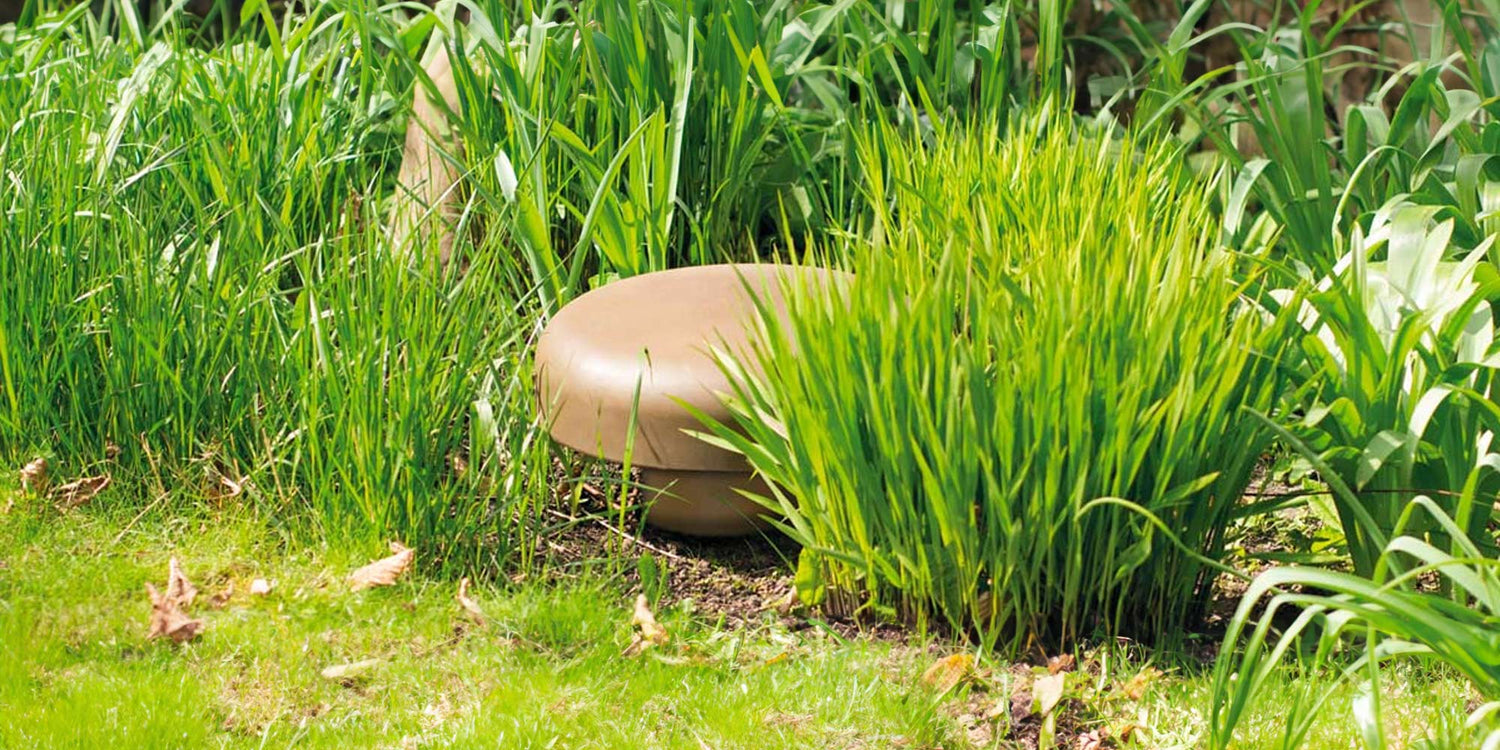

The CLG-W12 is a passive subwoofer. Optimised for discreet sub-surface installation, its proprietary Monitor Audio bandpass design incorporates an internally loaded 12” C-CAM driver which sits in a waterproof enclosure buried below the garden surface - only the CLG-W12’s domed output port is visible. From this little ‘chimney’ powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140 satellites for punchy and articulate full-range garden sound.

Expandable for larger gardens
The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.

In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.

Punchy, Monitor Audio sound quality
When installed the Climate Garden System delivers a smooth, wide-open and controlled frequency response from 30Hz to 30kHz in the targeted environment: better than many home audio systems! For patio or deck applications, the CLG-W12 will install within a planter box to enhance Monitor Audio’s CL Series all-weather cabinet speakers with deep bass frequencies, giving custom installers additional design options.

Monitor-Audio-CLG-W12-outdoor-subwoofer

  • Frequency Response: 30Hz - 150Hz
  • Sensitivity (1W@1m): 87 dB
  • Maximum S.P.L dBA: 110
  • Power Handling (RMS): 250W
  • Amplifier Requirements (RMS): 100 - 250W
  • Drivers: 1 x 305mm (12") C-CAM cone, long throw sub-bass driver
  • External Dimensions: (H x W x D) 750 x 380 x 505.5 mm
  • Cable Connection: Encapsulated cable connection
  • Environmental Protection Rating: IP54
  • Finishes Available: Brown
  • Weight Packaged: 19.5 kg / 42lb 14oz
