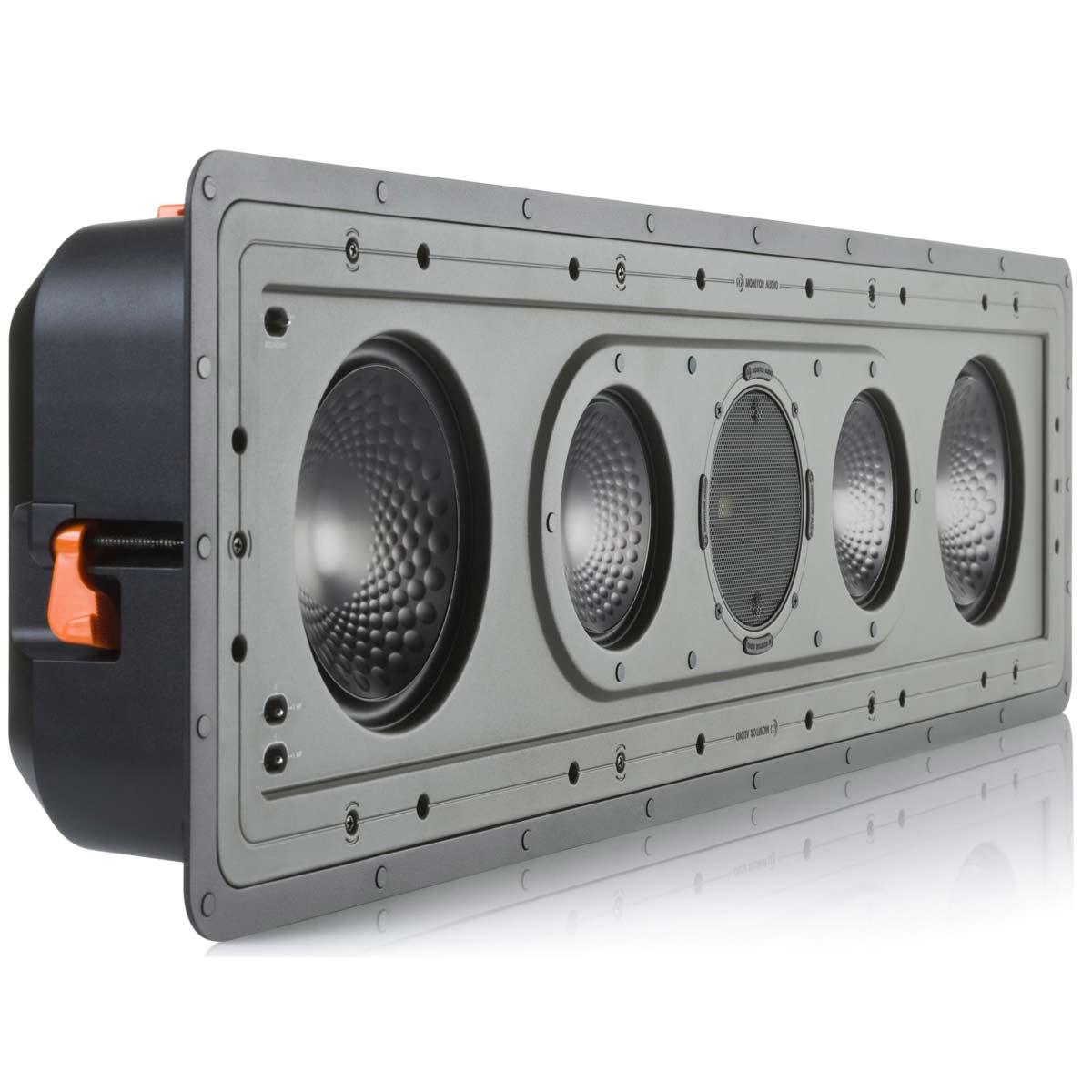

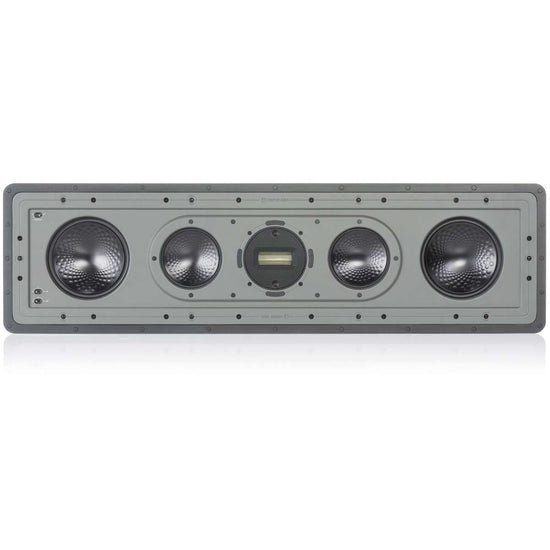

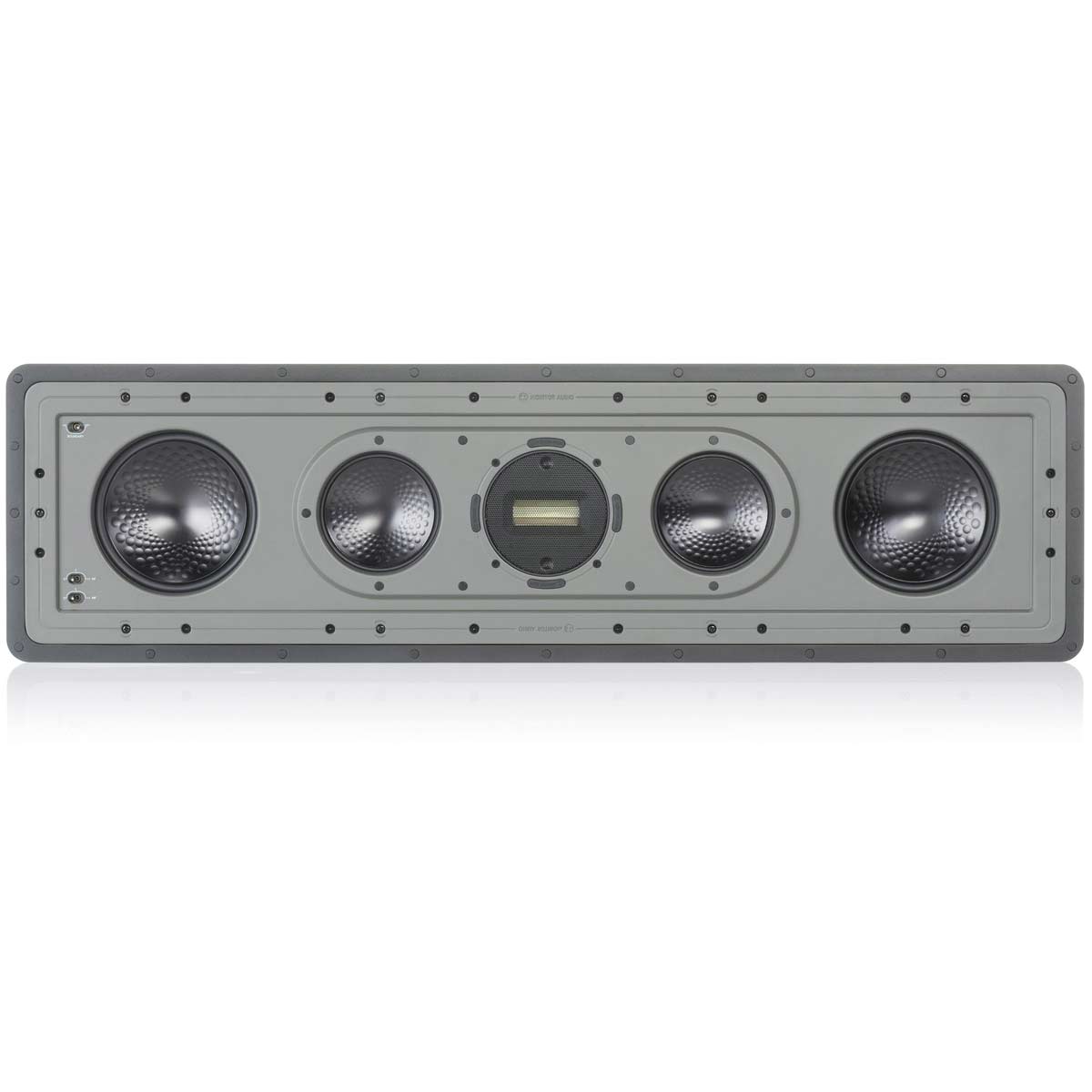

Monitor Audio CP-IW460X In-Wall Speaker
Monitor Audio CP-IW460X In-Wall Speaker
Monitor Audio CP-IW460X In-Wall Speaker
Monitor Audio CP-IW460X In-Wall Speaker

Monitor Audio CP-IW460X In-Wall Speaker (Each)

$3,300.00

View All Monitor Audio

In Stock, Available Now

Pickup available request a demonstration

Details

Specifications

Luxury In-Wall Speaker

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance. The CP-IW460X features Monitor Audio’s signature C-CAM® (Ceramic-Coated Aluminium/Magnesium) cone material with RST® (Rigid Surface Technology) deployed in dual 6.5” bass drivers and twin 4” mids astride a gold ribbon tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet with die-cast Aluminium baffle.

  • Dual 6.5” C-CAM® bass drivers featuring RST® ‘dimpled’ cone technology
  • Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
  • Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies
  • C-CAM Ribbon High Frequency transducer
  • Innovative HF rotating system to facilitate portrait or landscape orientation
  • Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
  • Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
  • High overall efficiency and maximum SPL for powerful home theatre installations
  • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
  • High power handling
  • Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
  • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
  • Patented Tri-Grip® fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
  • Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
  • Paintable grille to blend with the living environment
  • High quality bi-wire terminal connections – provide increase in performance particularly when a bi-amplifier configuration is specified.
    • Frequency Response: 50Hz - 30kHz (-6dB typical in room response)
    • Power Handling (RMS): 150W
    • Adjustment Controls: Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
    • mounting depth: 96mm (3 3/4” )
    • Cable Connection: High quality bi-wire terminal connections
    • Impedance (Nominal): 6Ω
    • Recommended Amp Requirements: 60 - 150W
    • Overall Dimensions:(including grille) (H x W): 907 x 257mm (35 3/4” x 10 1/8”)
    • Fixing Type: 10 x Tri-Grip® Dog leg fixings
    • Sensitivity (1W@1M): 89dB
    • L.F - 500Hz @ 12dB/Octave M.F -500Hz @ 12dB/Octave. 3KHz @ 18dB/Octave H.F - 3KHz @ 18dB/Octave
    • Overall Depth (including grille): 102mm (4”)
    • Construction Material: Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)
    • Maximum SPL (@1M. Installed/in room): 113.8 dBA
    • Drivers Unit Complement: 2 x 6.5” C-CAM® Bass drivers with RST® cone technology 2 x 4” C-CAM Mid-range drivers with RST cone technology 1 x C-CAM H.F ribbon transducer
    • Cut Out Dimensions:(H x W): 880 x 230 mm
    • Weight: 12.98kg
