Monitor Audio Creator Series Tier 1 Architectural Ceiling speaker

$450.00

Sold out

Size: Small

Small

Medium

Large

Product variants

Simplicity with solid acoustic performance

The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers.

The application of key Monitor Audio acoustic technologies more usually found in premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation.

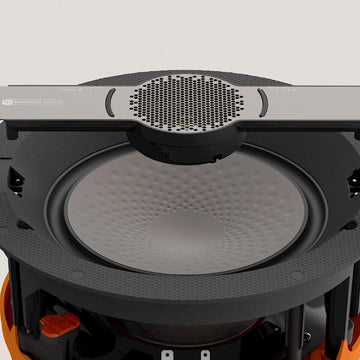

All Creator Series Tier 1 speakers are a 2-way configuration, with C-CAM mid-bass drivers, based on those found in the award-winning Silver 7G range, and C-CAM tweeters with Uniform Dispersion (UD) Waveguide II.

Specifications

Small

Drive Units: 1 x 5" C-CAM bass driver, 1 x 25mm C-CAM tweeter

Nominal Impedance: 8 Ohms

Amplifier Requirement: 25-100W

Continuous Power Handling: 50W

Sensitivity (2.83v @1m): 84dB

Cut out size: 171mm

Mounting Depth: 99mm

Dimensions: 201mm x 103mm

Weight: 1.4kg

Medium

Drive Units: 1 x 7" C-CAM bass driver, 1 x 25mm C-CAM tweeter

Nominal Impedance: 8 Ohms

Amplifier Requirement: 35-130W

Continuous Power Handling: 65W

Sensitivity (2.83v @1m): 86dB

Cut out size: 212mm

Mounting Depth: 99mm

Dimensions: 242mm x 103mm

Weight: 1.9kg

Large

Drive Units: 1 x 9" C-CAM bass driver, 1 x 32mm C-CAM tweeter

Nominal Impedance: 8 Ohms

Amplifier Requirement: 40-150W

Continuous Power Handling: 75W

Sensitivity (2.83v @1m): 88dB

Cut out size: 248mm

Mounting Depth: 99mm

Dimensions: 278mm x 103mm

Weight: 2.5kg

The Creator Series re-writes the rules of custom installation.

Monitor Audio

C1S, C1M, C1L

Available in small, medium and large sizes, Tier 1 represents a comprehensive range of speakers designed for cost-effective installations where product simplicity and solid acoustic performance is required.

CAM mid-bass drivers

Ceramic-Coated Aluminium/Magnesium (C-CAM) cones have a much higher resistance to bending stress and therefore exhibit much greater fidelity over their entire operating range producing a smooth transition of frequencies, and a sense of realism and cohesion in the soundstage.

C-CAM Gold Dome Tweeter

The Gold Dome tweeter is formed from a Ceramic-Coated Aluminium Magnesium alloy, Gold anodised to a specific thickness for ideal stiffness and damping characteristics.

Tri-Grip II

Tri-Grip Il is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.

Thinner, lighter, more rigid and more efficient than domes made from other materials which are prone to distortion in the audio band.

Quik-Link

Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre- installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It's that easy.
