Monitor Audio W3M In-Wall Speaker

In Stock, Available Now



High performance in-wall speaker

Tier 3 of the Monitor Audio Creator Series is a high-performance range of speakers that have all the engineering qualities of Tier 2, but offer improved acoustic performance and further features for enhanced speaker placement freedom, such as boundary correction and mid/high-frequency cut/boost, plus leading-edge acoustic technologies.

The Creator Series re-writes the rules of custom installation. A smart, tiered range of high-performance, installer-friendly in-ceiling and in-wall loudspeakers that delivers better sound for customers, and enhanced flexibility and clarity for installers.

The application of key Monitor Audio acoustic technologies more usually found in premium standalone loudspeakers ensures lifelike, pristine sound, while innovative features and a comprehensive, clearly defined range make for hassle-free installation.

If you thought you knew custom installation, think again. Creator Series redefines British high-fidelity architectural sound.

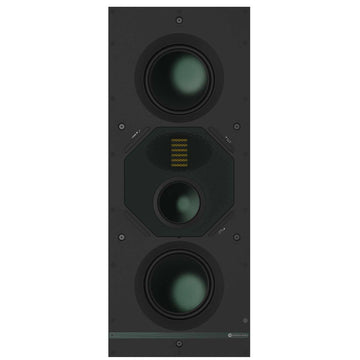

The W3M is a medium sized in-wall speaker with dual 5" RDT III bass drivers. Positioned either side of the HF/MF array, this configuration improves linearity between drivers and ensures a much larger, purer and cleaner sound is delivered into the listening area, and with greater bass extension.

Also present is a 3" C-CAM midrange driver and a single MPD tweeter. The W3M features a rotating mid-pod driver array which allows the speakers to be positioned horizontally or vertically. This highly flexible solution ensures that the phase of the transducer is correct in either orientation.

Monitor Audio W2M-CP In-Wall Speakers

Tri-Grip II

Tri-Grip Il is a new dog-leg mechanism that is considerably stronger and more reliable than the previous generation, meaning both speaker placement and extraction could not be simpler.

Monitor Audio W1M In-Wall Speaker


Our new innovative Quik-Link terminal revolutionises speed of installation. With Quik-Link you can make cable connections up the ladder at pre- installation stage. Once the installation is complete, the terminal, which is now connected with the speaker cables, magnetically snaps and locks into place on the rear of the speaker as you place the speaker into ceiling or wall. It's that easy.

Monitor Audio W1M In-Wall Speaker

Drive Units: 2 x 5" RDT III bass drivers, 1 x 3" C-CAM midrange driver, 1 x 25mm MPD tweeter

Nominal Impedance: 6 Ohms

Amplifier Requirement: 60-225W

Continuous Power Handling: 150W

Sensitivity (2.83v @1m): 88dB

Cut out size: 527 x 198

Mounting Depth: 85mm

Dimensions: 540mm x 211 x 90mm

Weight: 4.7kg
