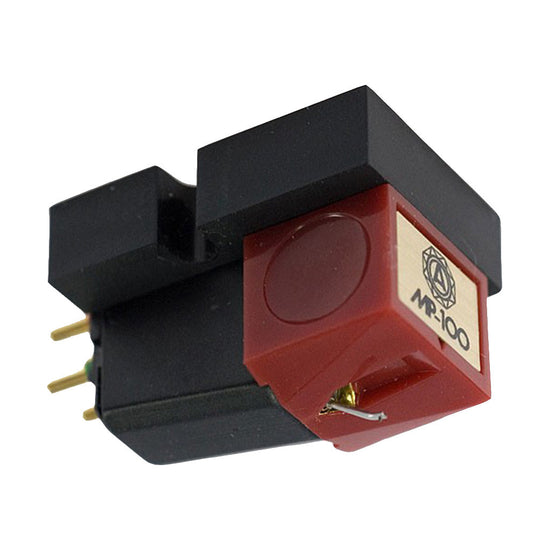

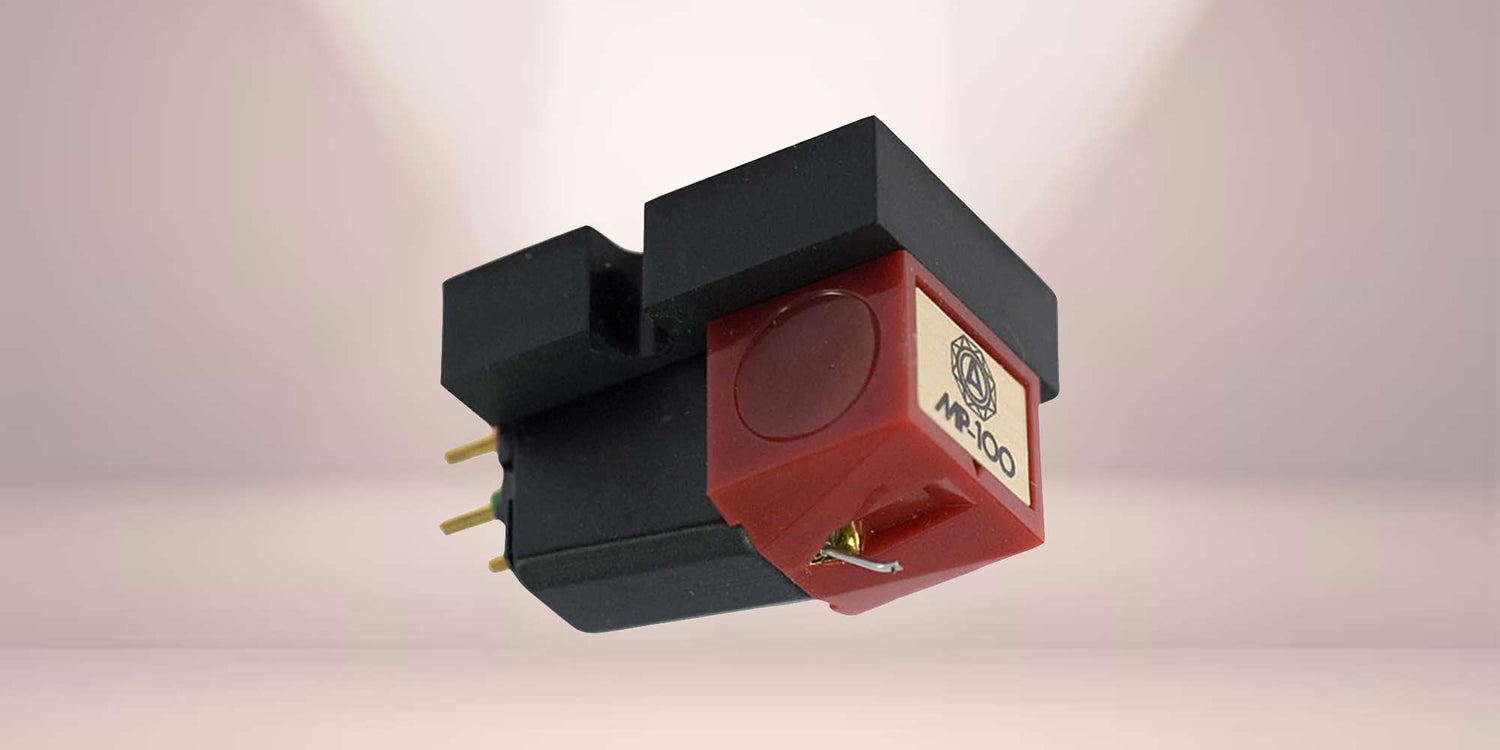

Nagaoka MP-100 Phono Cartridge

$200.00

Free Delivery in NZ
for orders over $100 or $5 under $100.

Product Description

MM Cartridge.

The Nagaoka MP-100 phono cartridge offers musical clarity and expression beyond its price and competitors - a splendid upward start toward long term musical enjoyment.

Features

  • SuperFine polished conical diamond bonded stylus
  • Powerful samarium cobalt magnet
  • Lightweight aluminium alloy for high fidelity
  • Carbon Fibre reinforced plastic shoe
  • Anti-ferro magnetic permalloy shield casing
  • Nagaoka MP-100 MM Cartridge Specification





    Specifications

    • Type: Moving Magnet
    • Cantilever: Lightweight aluminium alloy
    • Stylus type: Conical diamond with .0006 inch radius
    • Weight: 6.5 grams
    • Output voltage: 5 mV (5cm/sec)
    • Frequency characteristic: 20 - 20,000 Hz
    • Channel balance: Better than 2.0 dB
    • Channel separation: Better than 22 dB at 1 kHz
    • Recommended loading: 47,000 ohms
    • Dynamic Compliance: 5.5 x 10-6 cm/dyne
    • Static Compliance: 18 x 10-6 cm/dyne
    • Tracking force range: 1.5 - 2.3 g
    • Break-in period: 30 hours
    • Replacement stylus: JN-P100
