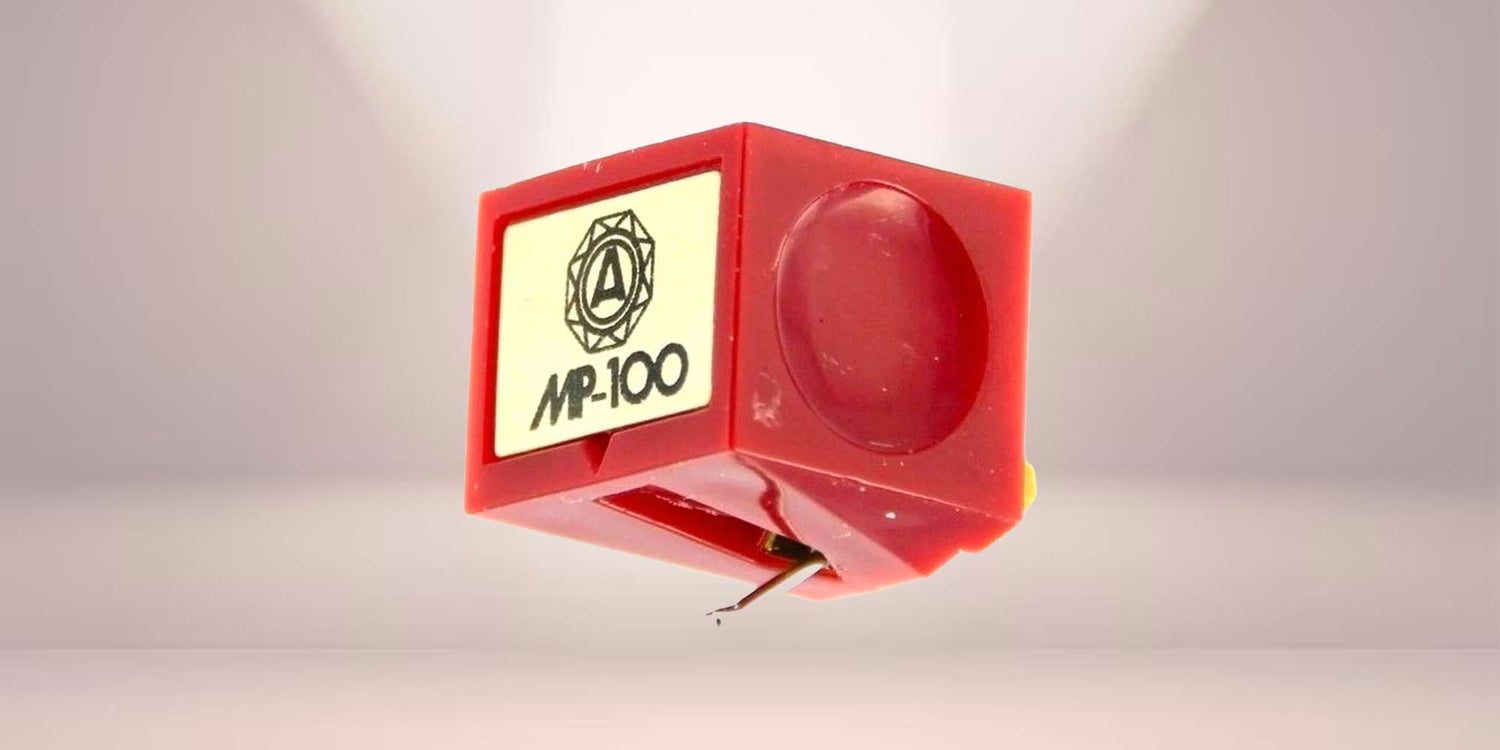

Nagaoka MP-100 Replacement Stylus

In Stock, Available Now



User-replaceable stylus for MM Cartridge


The Nagaoka MP-100 phono cartridge offers musical clarity and expression beyond its price and competitors - a splendid upward start toward long term musical enjoyment.


• SuperFine polished conical diamond bonded stylus

• Powerful samarium cobalt magnet

• Lightweight aluminium alloy for high fidelity

• Carbon Fibre-reinforced plastic shoe

• Anti-ferro magnetic permalloy shield casing

Type: Moving Magnet

Cantilever: Lightweight aluminium alloy

Stylus type: Conical diamond with .0006 inch radius

Weight: 6.5 grams

Output voltage: 5 mV (5cm/sec)

Frequency characteristic: 20 - 20,000 Hz

Channel balance: Better than 2.0 dB

Channel separation: Better than 22 dB at 1 kHz

Recommended loading: 47,000 ohms

Dynamic Compliance: 5.5 x 10-6 cm/dyne

Static Compliance: 18 x 10-6 cm/dyne

Tracking force range: 1.5 - 2.3 g

Break-in period: 30 hours
