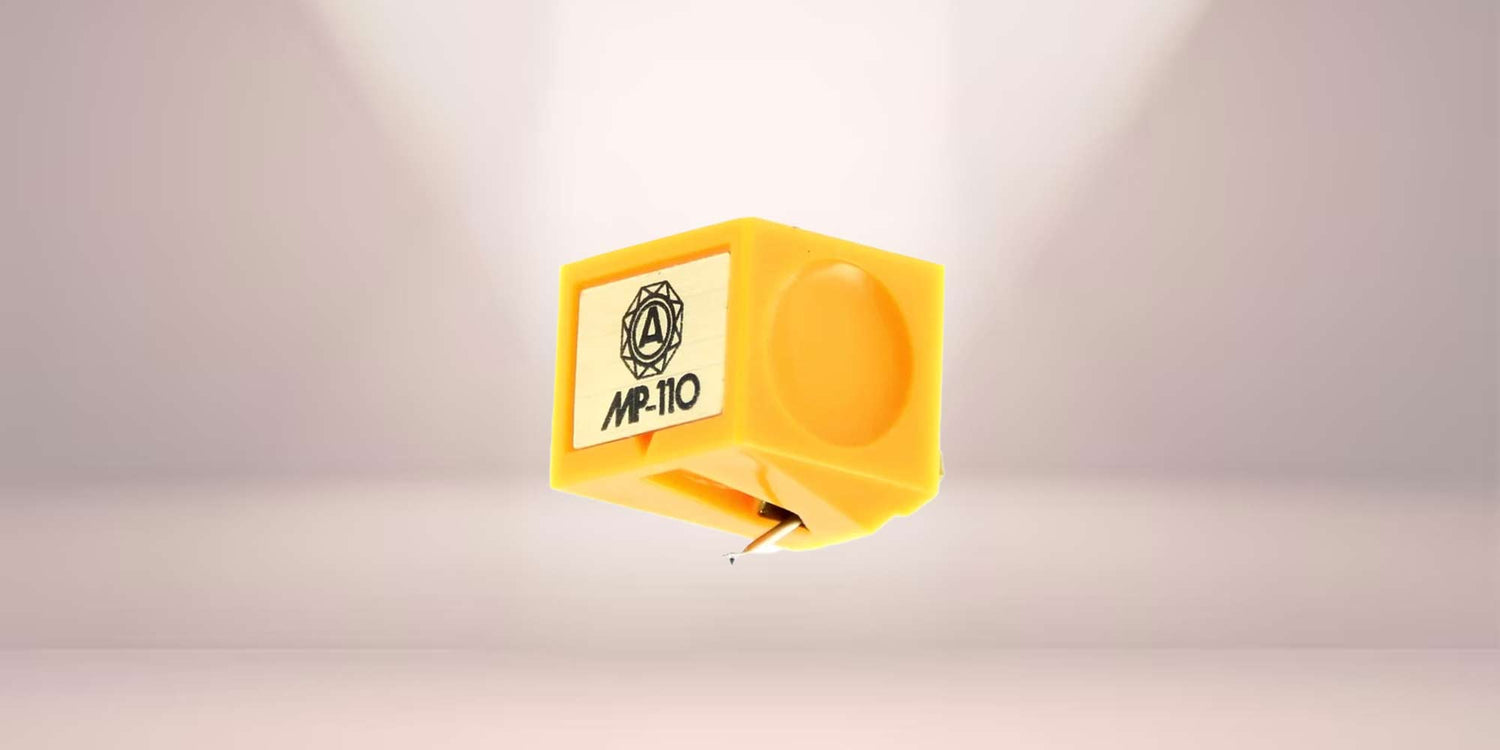

Nagaoka MP-110 Replacement Stylus

In Stock, Available Now

Details

Specifications

User-replaceable stylus for MM Cartridge

The successor to the highly acclaimed and classic Nagaoka MP-11 phono cartridge, the new Nagaoka MP-110 phono cartridge extends and strengthens its predecessor's prowess and talents to a new level of radiance. You'll hear more music, more detailed refinement to enjoy and savour. The Nagaoka MP-110 is the cartridge to start with and to keep for a long time.

“Dynamically, this cartridge aims above its price bracket, handling Scott Walker's syncopated Montague Terrace In Blue with ease and being able to hold its own against the pricier competition.”

“Detail subtleties are also dealt with proficiently, and the vocals on the Dixie Cups' Chapel of Love possess an insight that's great at this price level.” - What Hi-Fi. Read full review here.

Features

• SuperFine polished elliptical diamond bonded stylus

• Powerful samarium cobalt magnet

• Lightweight aluminium alloy for high fidelity

• Carbon Fibre-reinforced plastic shoe

• Anti-ferro magnetic permalloy shield casing

Type: Moving Magnet

Cantilever: Lightweight aluminium alloy

Stylus type: SuperFine polished elliptical, bonded diamond

Stylus tip radius: 0.4 x 0.7 mil

Weight: 6.5 grams

Output voltage: 5 mV (5cm/sec)

Frequency characteristic: 20 - 20,000 Hz

Channel balance: Better than 1.5 dB

Channel separation: Better than 23 dB at 1 kHz

Recommended loading: 47,000 ohms

Dynamic Compliance: 6.0 x 10-6 cm/dyne

Static Compliance: 18 x 10-6 cm/dyne

Tracking force range: 1.5 - 2.0 g

Break-in period: 30 hours
