Precision Phono Reproduction

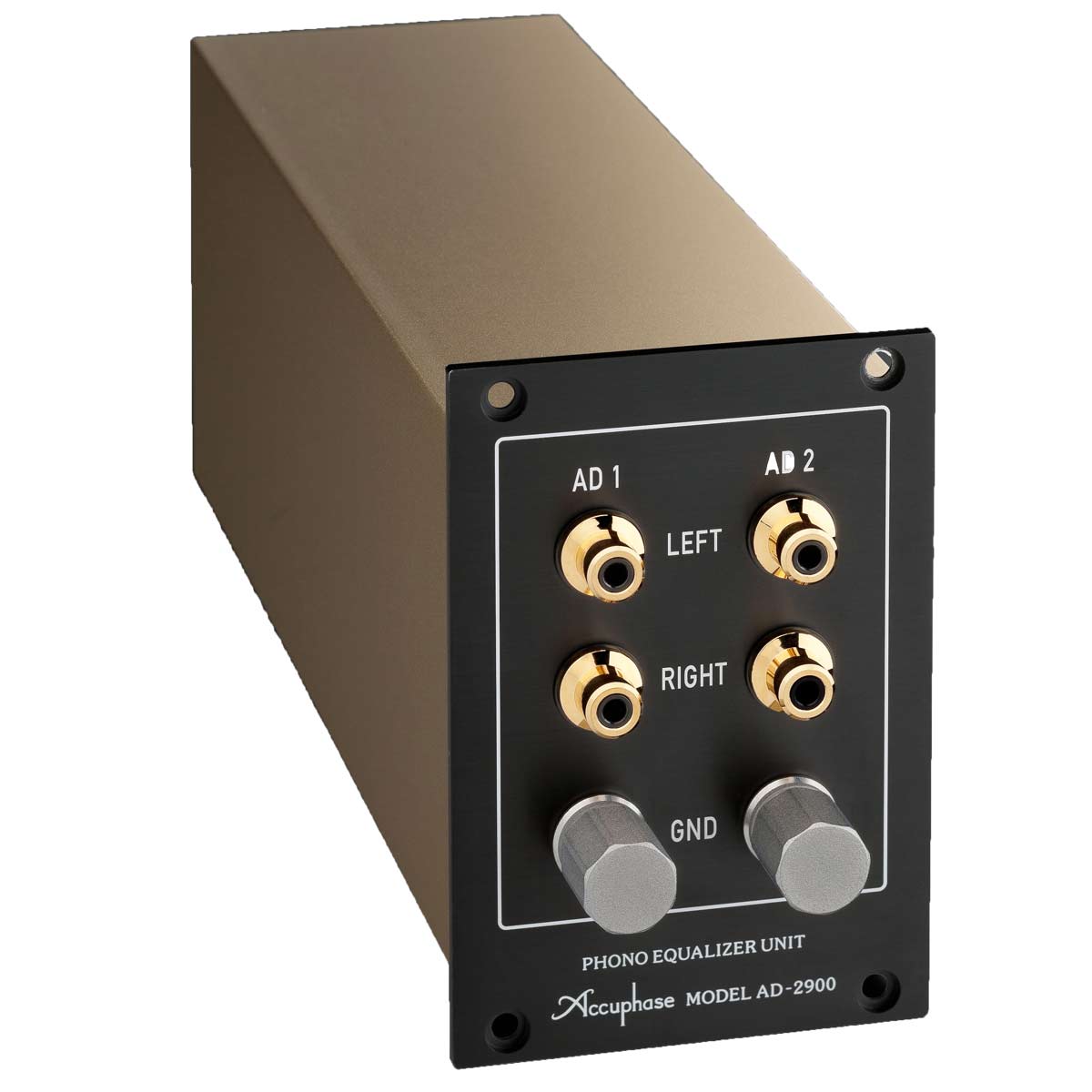

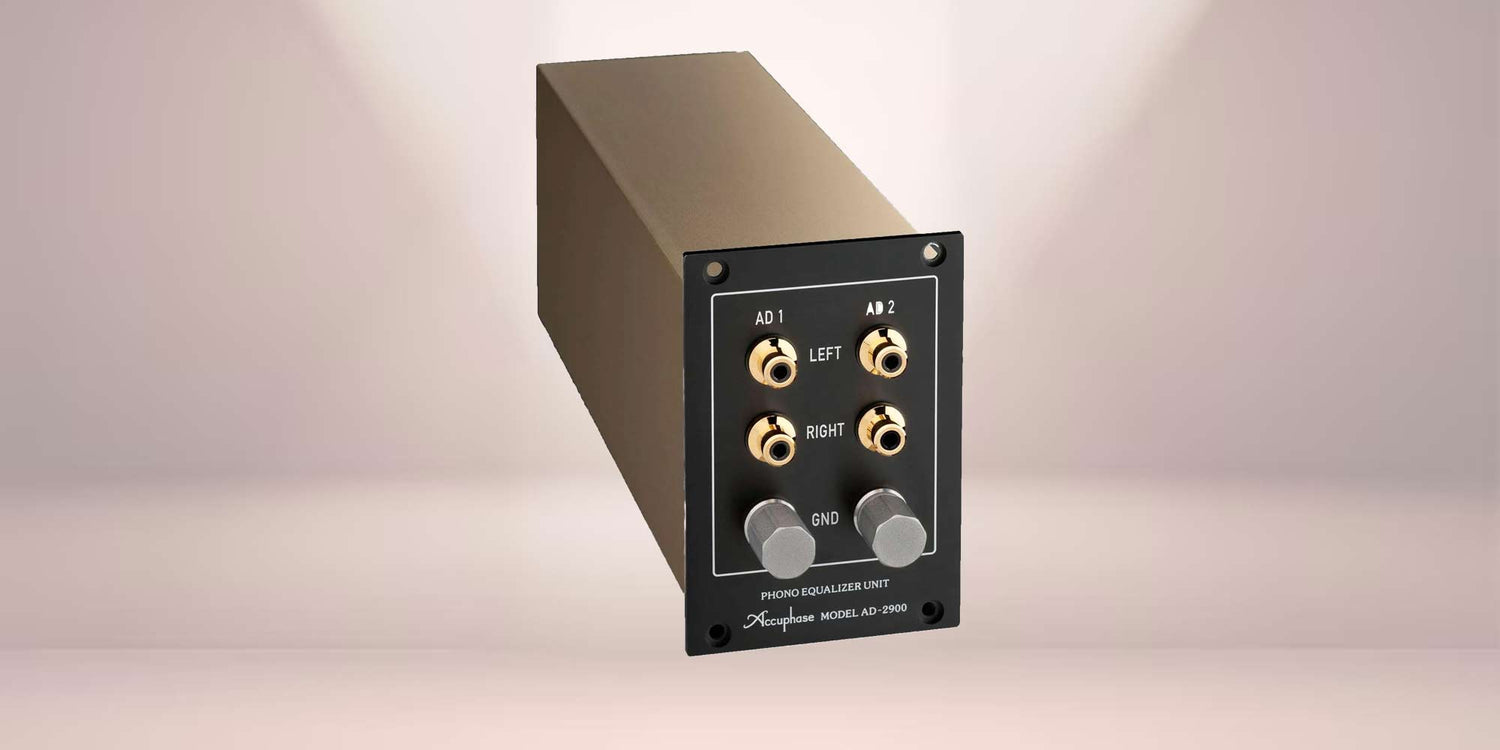

The Accuphase AD-2900 phono stage board is a high-performance component designed to extract the maximum detail and musicality from your vinyl records. This board is ideal for those who demand the highest levels of phono reproduction.

Featuring a fully balanced design and premium components, the AD-2900 offers exceptional signal-to-noise ratio and low distortion. The board's adjustable MC/MM input impedance and gain settings allow it to be easily matched to a wide range of phono cartridges.

PLEASE ENQUIRE

Quantity

Free Shipping for orders over $500

Specifications

Frequency response

MM/40dB, MC: 20～20,000Hz ±0.2dB
MM/30dB: 20～20,000Hz ±0.3dB

AD maximum input voltage (1 kHz, 0.005% THD)

MM/30dB INPUT: 310mV
MM/40dB INPUT: 96.5mV
MC/60dB INPUT: 9.5mV
MC/70dB INPUT: 3.2mV

Gain (Gain selector set to 18 dB position, 12/18/24 dB settings available)

AD[MM:30/40dB]INPUT → BALANCED/LINE OUTPUT: 48/58dB
AD[MM:30/40dB]INPUT → REC OUTPUT: 30/40dB
AD[MC:60/70dB]INPUT → BALANCED/LINE OUTPUT: 78/88dB
AD[MC:60/70dB]INPUT → REC OUTPUT: 60/70dB

Input sensitivity and impedance

Input, Input Sensitivity (For Rated Output/For 0.5V Output), Input Impedance
AD-MM/30 dB INPUT, 8.0 mV, 2.0 mV, 47 kilohms
AD-MM/40 dB INPUT, 2.5 mV, 0.63 mV, 47 kilohms
AD-MC/60 dB INPUT, 0.25 mV, 0.063 mV, 10/30/100/300 ohms, switchable
AD-MC/70 dB INPUT, 0.08 mV, 0.02 mV, 10/30/100/300 ohms, switchable
BALANCED/LINE, 252 mV, 63 mV, 40/20 kilohms, switchable

Signal-to-Noise RatioInput, Input shorted (A weighting) S/N ratio at rated output, EIA S/N

AD-MM/30 dB INPUT, 94 dB, 86 dB
AD-MM/40 dB INPUT, 85 dB, 86 dB
AD-MC/60 dB INPUT, 80 dB, 86 dB
AD-MC/70 dB INPUT, 73 dB, 87 dB
BALANCED/LINE, 111 dB, 110 dB

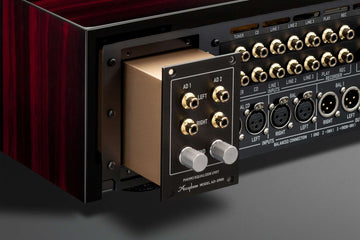

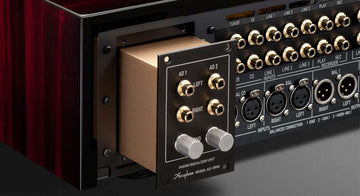

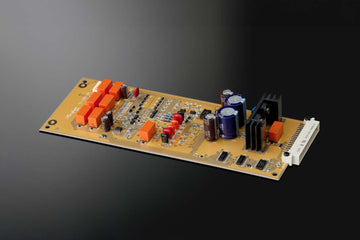

The AD-2850 uses printed circuit boards made from glass cloth fluorocarbon resin, housed in a sturdy aluminium enclosure to minimise any kind of external influence. The input terminals are connected to the amplification circuitry by the shortest possible route, realising outstanding signal/noise ratio. The use of a DIN standard connector for the link to the host component provides enhanced reliability.
