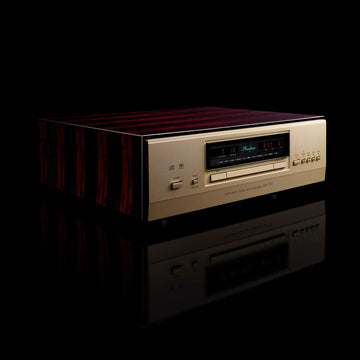

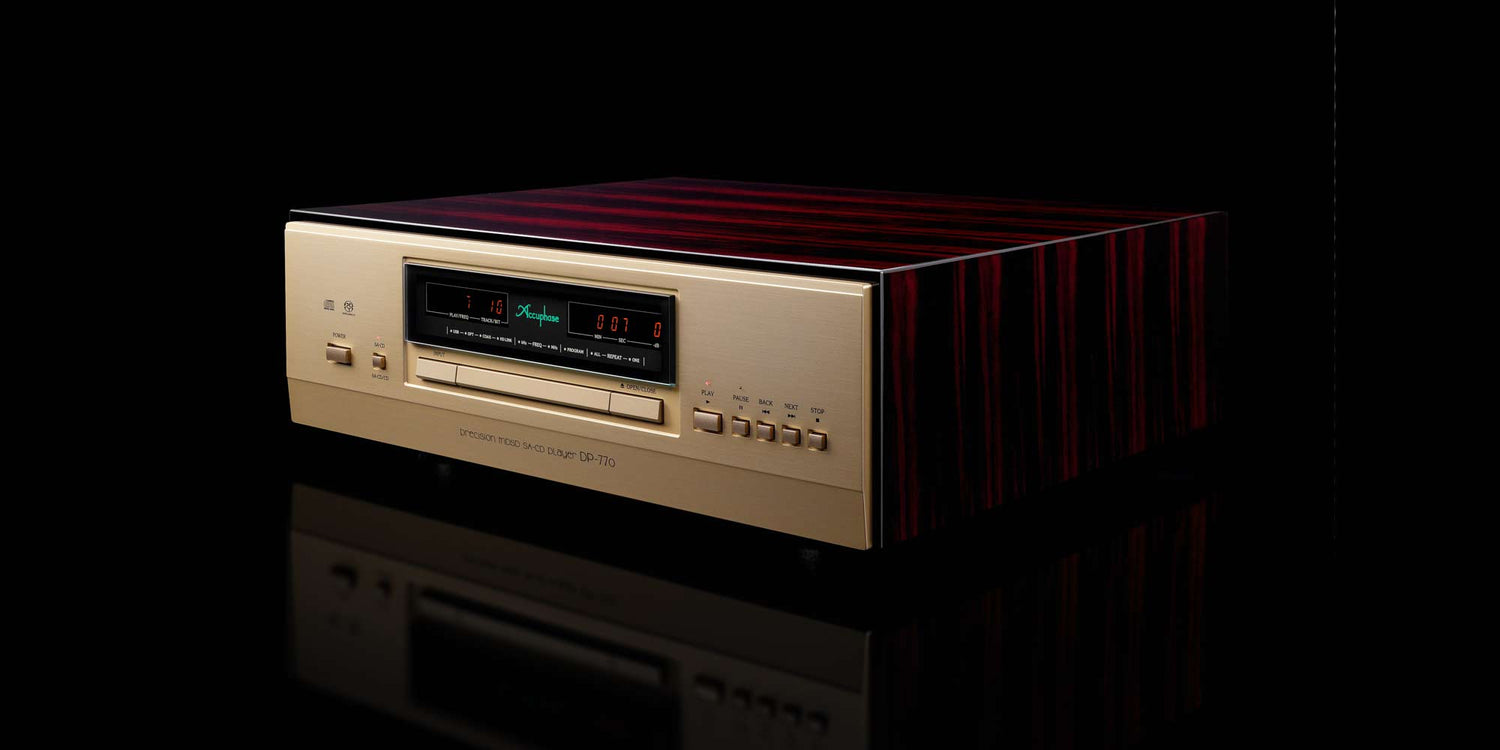

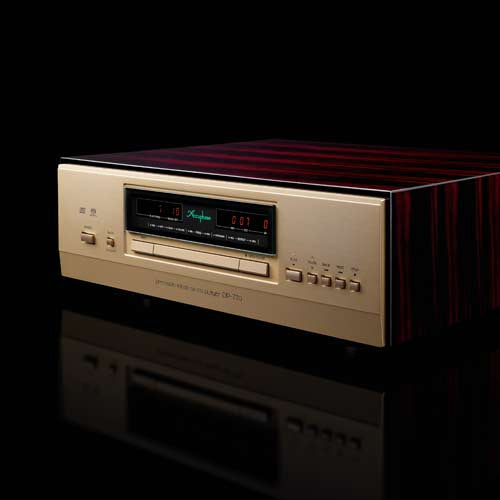

The Accuphase DP-770 is a SA-CD/CD player that is considered to be one of the best in the world. Extremely well-built with a solid, heavy chassis that helps to isolate it from vibration. The DP-770 uses a high-precision disc drive mechanism that is designed to read discs with accuracy and minimise jitter.

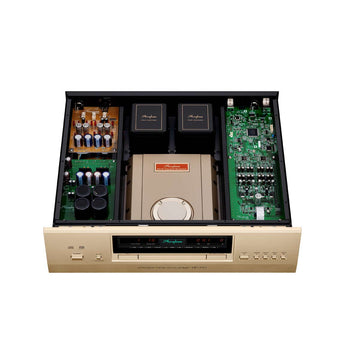

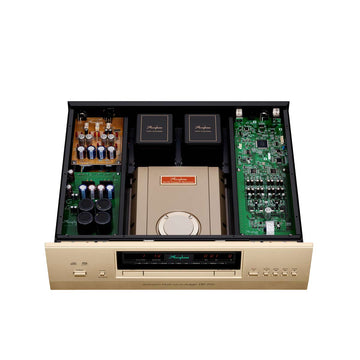

The newly developed SA-CD/CD drive with a total weight of 10.5 kg is mounted on a massive 8-mm thick bottom plate, resulting in highly efficient attenuation of external vibrations. Intensive research into materials and structural design is reflected in the traverse mechanism supported by four viscous dampers. This protects the pickup from resonances and enables it to perform its crucial task, ensuring highly precise data readout at all times.
Even very slight eccentricities or warping of media discs often can lead to various types of vibrations and wind noise when spinning at high speed. The viscous dampers of the DP-770 prevent the propagation of such vibrations, and the large bridge covering the disc cuts down on wind noise. As a result, operation noise is reduced to about one half as compared to earlier designs, making listeners forget that there is a rotating mechanism at all.
The disc loading mechanism features a dual stay construction with steel bearings for the shafts. This ensures that the aluminum disc tray opens and closes with a super-quiet and smooth motion
Click here for PDF brochure.
Transport section
Compatible disc formats: 2-channel Super Audio CD, CD, DSD disc (DVD-R/-RW/+R/+RW DSF file format), Data disc ( CD-R/-RW, DVD-R/-RW/+R/+RW, Supported formats: WAV, FLAC, DSF, DSDIFF)
Data read method: Non-contact optical pickup
Laser diode wavelength: SA-CD - 650 nm, CD - 790nm
EXT DSP: HS-LINK Connector type: RJ-45. COAXIAL Format: IEC 60958 compliant.
Digital processor section
Digital inputs: HS LINK: Connector type: RJ-45. COAXIAL Format: IEC 60958 compliant. OPTICAL Format: JEITA COMPUTER-1212 compliant. USB Format: USB 2.0 Hi-Speed (480 Mbps) compliant
EXT DSP: HS LINK: Connector type: RJ-45. SA-CD: 2.8224 MHz/1bit DSD. CD: 44.1kHz/16 bit PCM. COAXIAL: Format: IEC 60958 compliant. CD: 44.1kHz/16 bit PCM.
Sampling frequencies: HS LINK: 32 kHz to 192 kHz (2-channel PCM). 2.8224 mHz/1bit (2-channel DSD). USB, COAXIAL: 32 kHz to 192 kHz/24 bit (2-Channel PCM). OPTICAL: 32 kHz - 96 kHz/24 bit (2-Channel PCM)

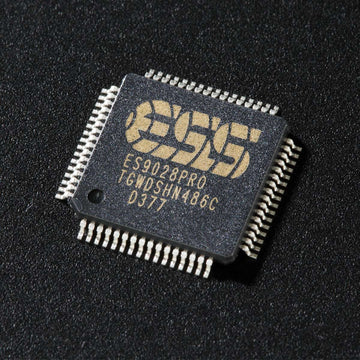

D/A converter: 8MDS++ type
Frequency response: 0.5 - 50,000 Hz +0, -3 dB
Total harmonic distortion: Max. 0.0004% (20 - 20,000 Hz, 24-bit input)
Signal-to-noise ratio: 121 dB or better
Dynamic range: 119 dB (24-bit input, low pass filter off)
Channel separation: 118 dB (20 to 20,000 Hz)
Output voltage and impedance: BALANCED: 2.5 V, 50 ohms, balanced XLR type, LINE: 2.5 V, 50 ohms, RCA type phono jack
Output level control: 0 to -80 dB in 1-dB steps (digital type)
General
Power requirements: 120/220/230 V AC, 50/60 Hz (Voltage as indicated on rear panel)
Power consumption: 30 W, standby: 0.3 W
Max. dimensions: Width 477 mm, Height 156 mm, Depth 395 mm
Mass: 28.5 kg net, 36.0 kg in shipping carton
