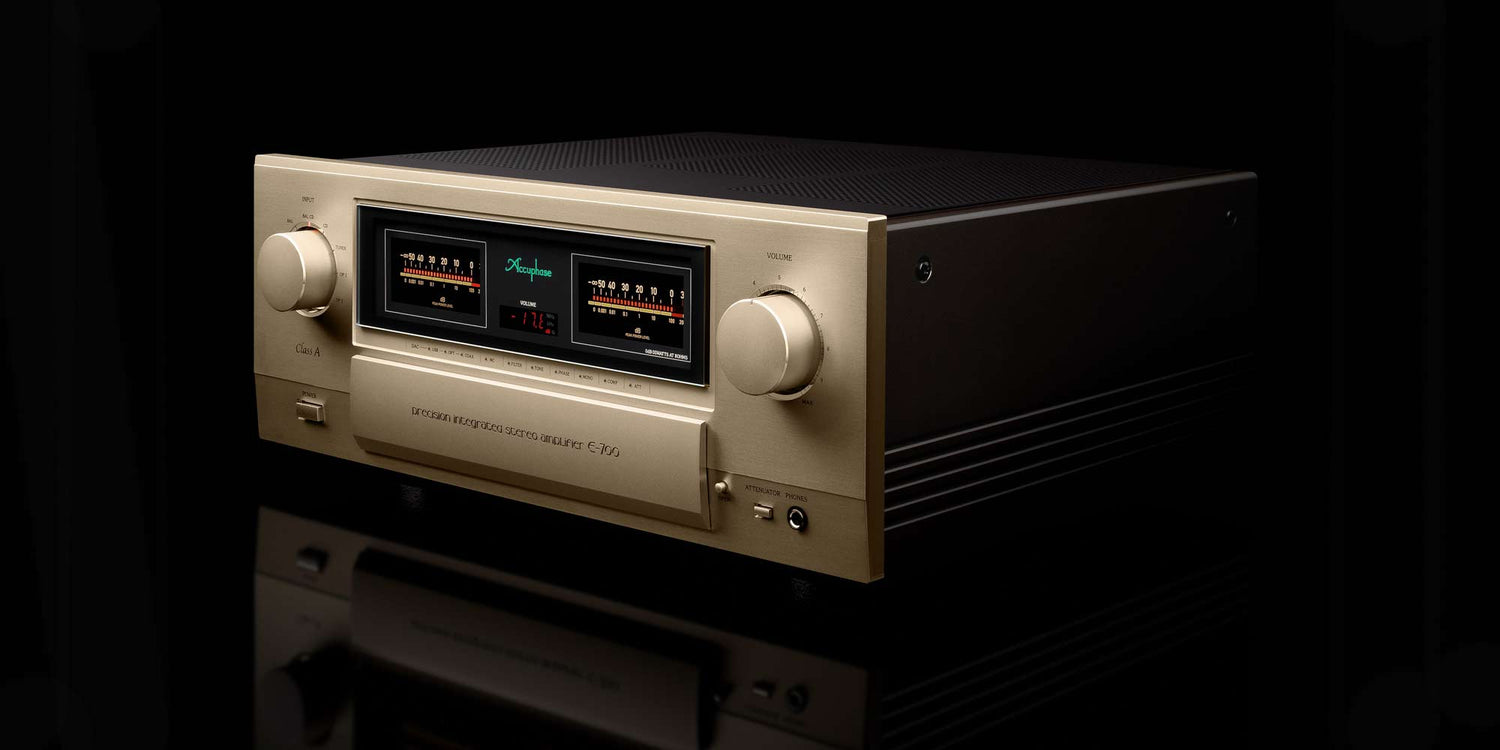

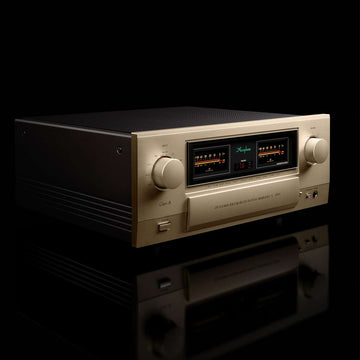

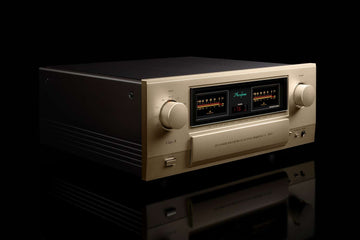

Accuphase E-700 Class A Integrated Amplifier

In Stock, Available Now

Click for pricing

Details

Specifications

Integrated Stereo Amplifier

The Accuphase E-700 Integrated Amplifier is a masterful blend of innovation and elegance, making it a standout choice for discerning audiophiles. Building on the renowned E-650, this latest Class A amplifier delivers an even richer and more immersive listening experience. With its exquisite design enhancements, including a refined gold trim and robust controls, the E-700 is not just an amplifier, but a piece of art. Its ability to drive large, demanding speakers with ease, combined with the remarkable low noise floor and dynamic range, ensures every note is delivered with pristine clarity and depth. Whether you're filling a large room or creating an intimate soundscape, the E-700 excels, providing unparalleled power and detail that will satisfy even the most critical ears. Discover a new level of audio excellence with the Accuphase E-700, where superior engineering meets aesthetic perfection.

The E-700 is a pure Class A stereo integrated amplifier that brings together advanced design technology cultivated over 50 years, and uses the latest circuitry and high-quality materials to significantly improve performance and sound quality.

The E-700 Integrated Amplifier boasts a robust amplification section that provides ample power to drive even the most demanding speakers. Whether you enjoy classical symphonies, rock anthems, or jazz classics, this amplifier effortlessly reproduces every note with stunning fidelity.

Accuphase's dedication to audio purity is evident in the E-700's advanced signal processing and filtering. Its ultra-low distortion and noise levels ensure that your music remains faithful to the original recording, allowing you to hear the artist's intentions with unprecedented clarity.

Accuphase E-650 integrated amplifier board


Features

The E-700 has a Pure Class A operation (35 watts into 8 ohms). Guaranteed linear power: 120 watts into 2 ohms, 60 watts into 4 ohms, 30 watts into 8 ohms; and the preamplifier and power amplifier sections can be used separately.

Balanced AAVA volume control

One of the key features of the E700 is its Dual Balanced AAVA volume control system. AAVA stands for "Accuphase Analog Vari-gain Amplifier," which is a proprietary technology that provides precise and accurate volume control with minimal noise and distortion. The Dual Balanced AAVA system uses two separate AAVA circuits for left and right channels, which helps to maintain perfect channel balance and stereo imaging.

Accuphase AAVA volume control

Output stage with power MOS-FETs in triple parallel push-pull configuration

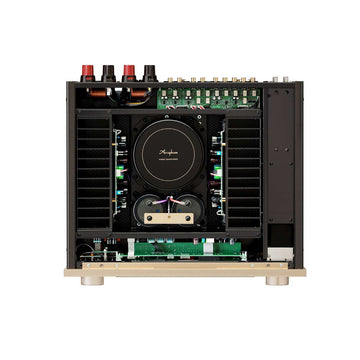

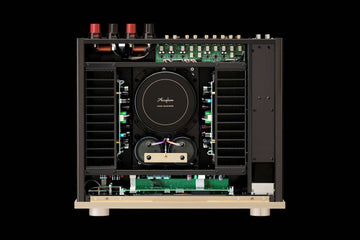

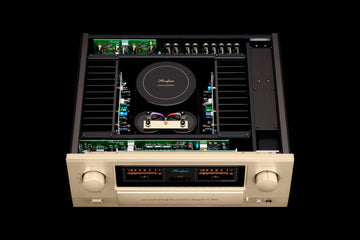

Triple parallel push-pull output stage with power MOS-FETs and power amplifier stage mounted on a large heat sink. Two identical units are arranged on the left and right sides of the chassis.

Accuphase power MOS-FETs

Balanced I/O

Instrumentation amplifier principle in power amplifier for fully balanced signal transmission, complemented by MCS+ topology and current feedback amplification circuitry

Accuphase E-650 balance terminal

Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors.

The E-700 uses a massive power transformer with high output capability. Highly effective filtering is realized with two custom-made aluminum electrolytic capacitors, each with a large 56,000 μF rating.

Rated Continuous Average Output Power (both channels operating simultaneously, 20 - 20,000 Hz): 150 W/ch  1-ohm load (music signal only), 140 W/ch  2-ohm load, 70 W/ch  4-ohm load, 35 W/ch  8-ohm load

Total Harmonic Distortion (both channels operating simultaneously, 20 - 20,000 Hz): 0.05% 2-ohm load, 0.03% 4 to 16 ohm load

Intermodulation Distortion: 0.01%

Frequency Response: HIGH LEVEL INPUT, At rated continuous average output: 20  -   20,000 Hz +0, –0.5 dB, MAIN IN, At rated continuous average output:  20  -   20,000 Hz +0, –0.2 dB, At 1 watt output:3  - 150,000 Hz +0, –3.0 dB

Damping Factor: 1000 (with 8-ohm load, 50 Hz)

Input sensitivity and impedance (rated output/1W output/Impedance): High Level input -77.7mV/14.2mV/20kΩ, Balanced Input -77.7mV/14.2mV/40kΩ, Main In Line-0.617V/113mV/20Ω, Main In Balanced -0.617V/113mV/40kΩ

Output Voltage and Impedance: PRE OUTPUT 0.617 V, 50 ohms (at rated continuous average output)

Gain: HIGH LEVEL INPUT → PRE OUTPUT :18 dB, MAIN IN → OUTPUT: 28 dB

Tone Controls - Turnover frequency and adjustment range: BASS; 300 Hz   ±10 dB (50 Hz),TREBLE; 3 kHz   ±10 dB (20 kHz)

Loudness compensator: +6dB(100 Hz)

Attenuator: ─20 dB

S/N Ratio, Input-converted Noise (SN ratio at rated output/SN ratio EIA): High level Input - 102dB/97dB, Balanced input - 102dB/97dB, Main In - 117dB/101dB

Bar Meter: Represents output voltage value (dB) using 26 points With meter on/off switching function

Output Load Impedance: 2 to 16 ohms

Stereo Headphones Suitable impedance: 8 ohms or higher

Power Requirements: 230v AC, 50Hz

Dimensions (WxHxD, mm): 465 x 191 x 428

Weight: 25.3kg net, 32kg shipped

Please leave your details and we'll reply with current pricing.
