Created from the same innovative technologies used to develop our free-standing powered subwoofers, the Fathom® ICS in-ceiling subwoofer systems are engineered to deliver outstanding bass performance, with nearly unlimited placement freedom.

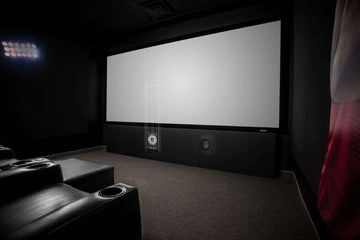

Purpose-built to disappear into the ceilings of most home audio/theatre environments, the 8-inch Fathom® ICS systems are designed to fit 2" x 6" or larger ceiling joists and a wide range of assembled joist widths while operating through very small grilles. The grille’s clever design accommodates all common drywall thicknesses and can be easily painted to match a room’s decor.

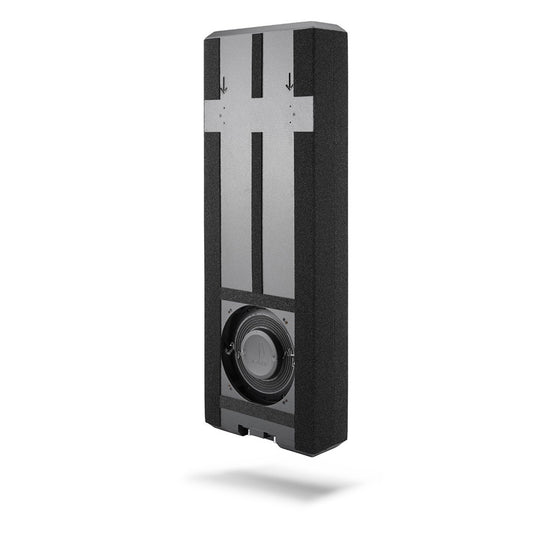

The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. Unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® ICS products.
Each 8-inch Fathom® ICS system is driven by a rack-mountable amplifier with up to 600 watts of clean power, programmed specifically for each system, and capable of driving up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, and high-pass crossover outputs, all accessible via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires an optional calibration microphone (sold separately).
The ICS-108 System fits 2" x 6" ceiling joists or larger, with assembled joists ranging from 16-inches to 25 1/2-inches on center. Consult your Authorized JL Audio Dealer for specific application information.
Enclosure Type: Ported
Enclosure Finish: Black Texture-Coated
Frequency Response (Anechoic): 24.9 Hz - 109 Hz (± 1.5 dB) -3dB at 24.6 Hz / 111 Hz -10dB at 23.4 Hz / 118 Hz
Effective Piston Area (Sd): 31.62 sq in / 0.0204 sq m
Effective Displacement: 47.5 cu in / 0.78 L
Amplifier Power: 300 W RMS short-term
Power Mode(s): Off, On or Automatic (Signal-Sensing or 12V Trigger)
12V Trigger Output Capacity: 150 mA (1/8-inch/3.5mm mini jack)
Light Modes: N/A
Joist/Stud Cavity Width (W): Minimum: 16 in / 406 mm
Maximum: 25.5 in / 648 mm (on center)
Joist/Stud Cavity Height (H): Minimum: 58 in / 1,473 mm
Width (W): 14 in / 355 mm
Height (H): 40.71 in / 1,034 mm
Depth (D): 5.13 in / 130 mm
Note: Enclosure dimensions do not include L-brackets or vibration-dampening padding.
