In-Wall Subwoofer System with Single 13.5-inch Subwoofer Driver, 1000 watts

The same minds that engineered JL Audio's reference-grade Fathom® and Gotham® powered subwoofers have created an amazing in-wall subwoofer solution, centered on a purpose-engineered, thin-line driver with patented technology.

Housing this exotic driver is a critically engineered enclosure with a unique floating mount design to minimize wall excitation. The enclosure features extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness.

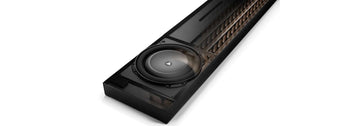

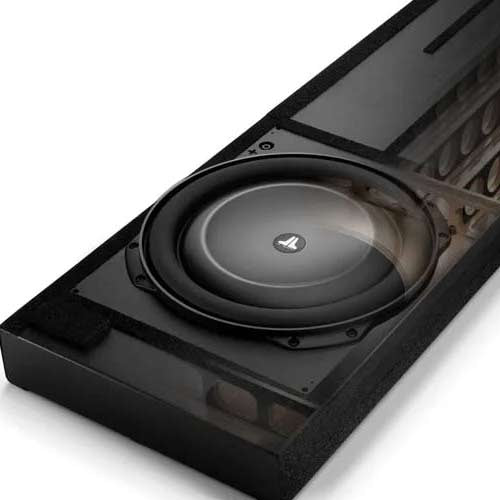

JL Audio Fathom IWS-SYS-113 In-wall Subwoofer

A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in a system.

The IWS System One is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 1 kW of clean power, and armed with serious processing features, including our acclaimed Automatic Room Optimization system.

There is no need to lower your expectations when selecting this remarkable in-wall solution... it's a real Fathom®.

General

Enclosure Type: Sealed
Enclosure Finish: Black Texture-Coated
Frequency Response (Anechoic): 26 Hz - 101 Hz (± 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz
Effective Piston Area (Sd): 98.26sq in / 0.0634 sq m
Effective Displacement: 147.3 cu in / 2.41 L
Amplifier Power: 1000 W RMS short-term
Power Mode(s): Off, On or Automatic (Signal-Sensing)
Light Modes: Off, On or Dim

2 x 4 inch wall stud enclosure

Wall Cavity Width (W): Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
Wall Cavity Height (H): Minimum: 93.625 in / 2,378 mm
Width (W): 13.75 in / 349 mm
Height (H): 70 in / 1,778 mm
Depth (D): 2.94 in / 75 mm
Note: Enclosure dimensions do not include vibration-dampening padding.

2 x 6 inch wall stud enclosure

Wall Cavity Width (W): Minimum: 14.375 in / 365 mm Maximum: 14.875 in / 378 mm
Wall Cavity Height (H): 93.625 in / 2,378 mm
Width (W): 13.75 in / 349 mm
Height (H): 55 in / 1,397 mm
Depth (D): 4.70 in / 119 mm
Note: Enclosure dimensions do not include vibration-dampening padding.
