Wireless, High-Fidelity Audio Transmitter & Receiver Kit

Using state-of-the-art wireless technology, the JLINK™ TRX system delivers pure, high-fidelity sound throughout your home, invisibly and effortlessly.

Quantity

Free Shipping for orders $500+

Specifications

S/N Ratio: 80 dB @ 1 kHz, 500 mV
THD+N: 0.02% @ 1 kHz, 500 mV
Crosstalk: >75 dB @ 1 kHz, 500 mV
Frequency Response: 16 Hz – 22 kHz (+0, -1dB)
Wireless Range: 100 feet / 30 meters (typical)
Wireless Channels: 3 available, selectable via switch
Latency: 14 mS
Operating Temperature: 32 to 104 °F / 0 to 40 °C
AC Power Adaptor: 1 A, 5 volts DC

Transmitter specifications

Input Impedance:25 kΩ
Outputs:Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless
Receivers Supported:Up to 4
Bit Depth/Sample Rate:16 Bit / 48 kHz
Power Requirements:200 mA, 5 volts (via AC adaptor)
Height (H):1.12 in / 28.5 mm
Width (W):3.5 in / 89 mm
Depth (D):3.5 in / 89 mm
Inputs:Analog, left and right RCA-type

Receiver specifications

Inputs: Bit-Perfect PCM Stereo Digital via 2.4 GHz Wireless
Outputs: Analog, left & right RCA-type Analog via JLINK port to compatible product
Output Impedance: 250 Ω
Full Scale Output Voltage: 1.2 V
Power Requirements: 100 mA, 5 volts (via AC adaptor or JLINK port)
Height (H): 1.12 in / 28.5 mm
Width (W): 3.5 in / 89 mm
Depth (D): 3.5 in / 89 mm

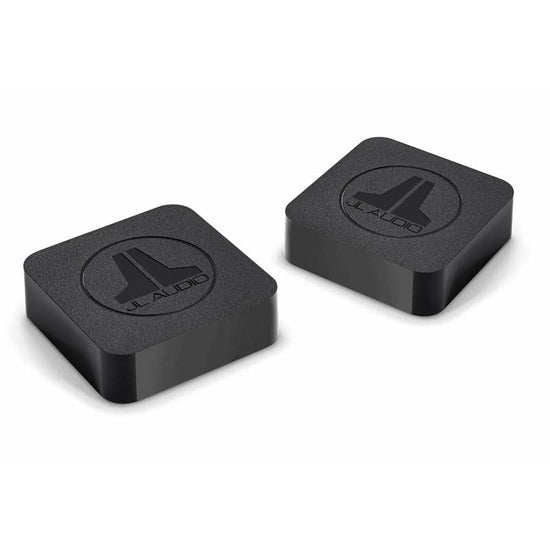

By broadcasting at an ultra-high frequency of 2.4 GHz, the JLINK™ TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between. Now you can send crystal clear, stereo sound from a source unit to a receiver, preamp or powered loudspeakers, wirelessly, up to 100 feet away (30 meters) without needing to route or hide long expanses of signal cables. RCA-type input/output connectors are compatible with most audio equipment and a compact design makes it easy to hide the transmitter and receiver chassis out of sight. A JLINK™ port is also included on the receiver for direct connection with JLINK™ compatible JL Audio products.

Especially useful in system designs that include remote source applications, lengthy signal cable runs or demanding installations due to challenging architecture, the JLINK™ TRX system gives you the freedom to position a source unit or outlying amplifier/powered loudspeakers (subwoofer or full-range) almost anywhere you would like.
