Looking for the perfect partner for your LUMIN Music Streamer? Look no further. Engineered to let your LUMIN sing!
Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If you thought your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.
“The LUMIN Amp has not only proven to be a great match with LUMIN's own audiophile network players. During my extended listening, it had manifested a very broad synergy with several preamplifiers. The cherry on the top of the cake was LUMIN Amp's ability to be directly driven by DACs.” — MATEJ ISAK, MONO AND STEREO
- Multi-Stage transistors amplifier
- Dual Mono power supply and amplifier design
- Fully discrete voltage and current gain stages
- DC-coupled signal path
- Class AB operation
- High input impedence and sensitivty for direct DAC drive
- Intelligent bias and thermal management
- Stereo / Dual Mono / Bridged operation
- CNC single billet aluminium construction

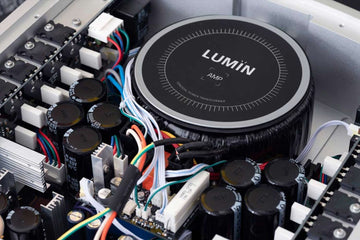

- 600VA custom toroidal transformer
- Built-in overload, overheat and DC protection

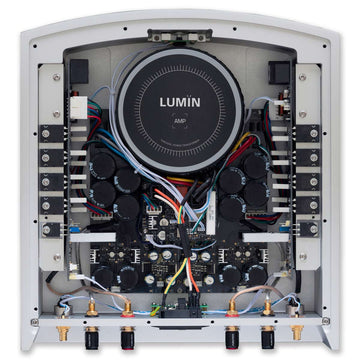

LUMIN Amp features a unique completely separate dual mono power supply design.
The ultra low noise design features advanced voltage regulation circuitry.
OPERATING MODE: (selectable)
Stereo, Dual Mono or Bridged mode

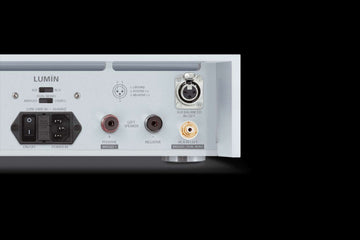

INPUT: (selectable)
1 x XLR pair (pin 2 hot), 1 x RCA pair
POWER:
160W per channel into 8Ω
320W per channel into 4Ω
640W into 8Ω (Bridged)
POWER SUPPLY:
Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz
POWER CONSUMPTION:
Standby <0.5W
Idle 40W
Max 700W
FREQUENCY RESPONSE:
20hz - 40000hz ± 0.1db
SIGNAL TO NOISE RATIO:
103db, unweighted
INPUT IMPEDANCE:
200kΩ Balanced (XLR)
100kΩ Unbalanced (RCA)
OUTPUT IMPEDANCE:
0.1Ω
INPUT SENSITIVITY:
1.16Vrms
GAIN:
+26dB (Stereo, Dual Mono)
+32dB (Bridged)
PROTECTION:
DC, overload and overheating protection
FINISHES:
Black anodized brushed aluminium or Raw brushed aluminium
CONSTRUCTION:
CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
DIMENSIONS:
350mm (W), 374mm (D), 104mm (H)
WEIGHT:
19kg
The tonal accuracy/neutrality of LUMIN's Amp plus the lossless new digital volume of the X1 make this a very enjoyable combo for anyone valuing ultimate transparency. I did not expect this level of refinement from a 100% solid-state chain but must confess that everything I loved about direct-heated triode preamplifiers has now been outclassed but LUMIN's outstanding integration of Leedh. LUMIN really have achieved something very special. more...
LUMIN Amp is a 21st-century high-end audio audiophile and music lover's amplifier. For what it represents sonically I'm happily granting LUMIN Amp the Mono and Stereo Highly Recommended Product award! This high-performing amp steps boldly into quite dense and competitive territory with more than enough assets to seriously challenge what's out there at the given price range and some above. I surely didn't expect such a matured and highly refined amplifier from the company that is so particularly oriented in the digital audio realms! more...
A sensation for a first time: Lumin shows that they can also be expected in the future in the area of amplifiers. Perfect look and workmanship. more...
