Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves. CD 60 is for those who cherish their CD collections and who seek to discover new details upon every listen.
Architectural design, modern materials, and intuitive operation make CD 60 as incredible to behold as to hear. Complementary visual design plus compatible technology make CD 60 a natural companion to MODEL 40N, MODEL 30, or other Marantz amplifiers.

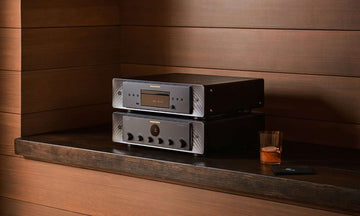

The Marantz CD 60 paired with the Model 40N Integrated amplifier
The CD 60 power supply uses highspeed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.
In the CD 60, the proprietary HDAM (Hyper Dynamic Amplifier Modules) circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.
Frequency response: USB DSD: 2Hz - 50kHz (-3dB) USB PCM: 2Hz - 50kHz (-1.5dB) CD: 2Hz - 20kHz
Total Harmonic Distortion: USB DSD: 0.0006% USB PCM 24bit: 0.0005% CD: 0.0015%
Signal to Noise Ratio: USB DSD: 110dB USB PCM 24bit: 118dB CD: 118dB
Dynamic Range: USB DSD: 110dB USB PCM 24bit: 118dB CD: 101dB
Line Output Level: 2.2Vrms
Headphone Output Level: 28mW / 32 ohms
Power Consumption: 38W at Standby 0.3W Unit (W x H x D mm) 442 x 129 x 396
Net weight: 7.5kg
Packaging Dimensions: (W x H x D mm) 525 x 249 x 511
CD Compatibility: CD / CD-R/RW / WMA / MP3 / AAC
Data Disc Compatibility DSD / WAV / ALAC

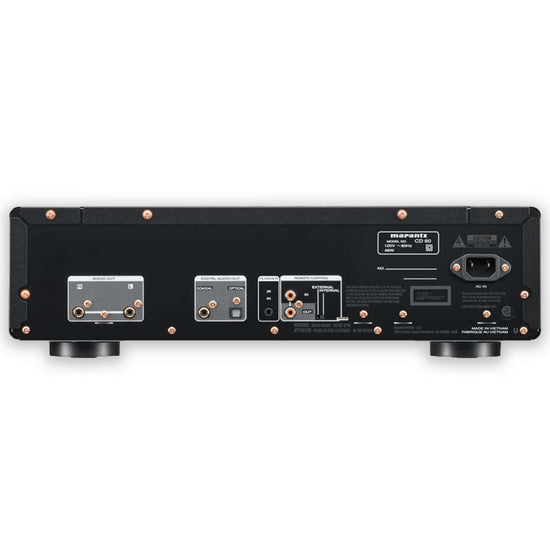

Fixed Analog Output (RCA): 1 (Gold Plated)
Optical input / output (Maximum Support): 0 / 1
Coaxial input / output (Maximum Support): 0 / 1
Headphone Output: 1
Remote Control Bus Terminal: Yes (RC-5 In / Out) w/ External / Internal Select Switch
Flasher Input: Yes (U ver)
USB A 1 (Front) Mass Storage Class 5V/1A
Support format: FAT 16/32
USB-A: FLAC / WAV / AIFF / ALAC / DSD Yes / Yes / Yes / Yes
DSD Native Playback: Yes
USB Firmware Update: Yes
