MERIDIAN DSP3200 DSP Active Loudspeakers

$6,200.00

Free Delivery in NZ
for orders over $100 or $5 under $100.

Product Description

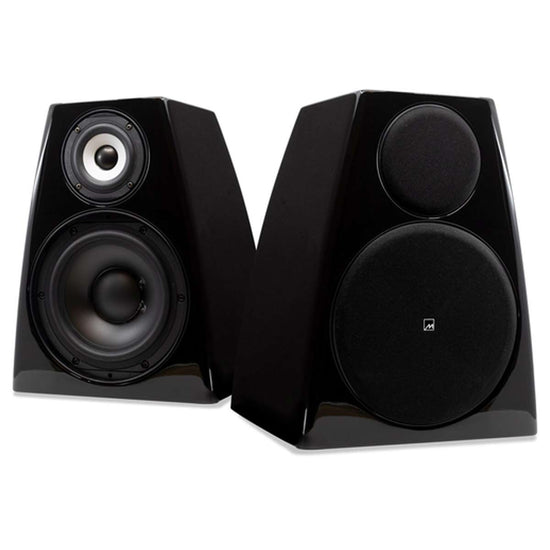

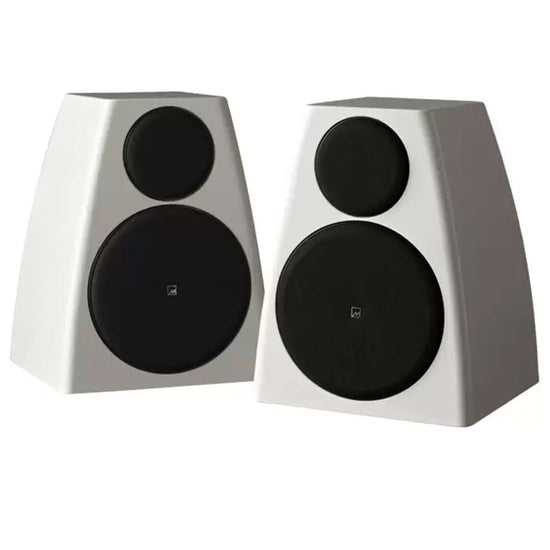

DSP Active System Black Ash or White (Per pair).

SMALL AND BEAUTIFUL

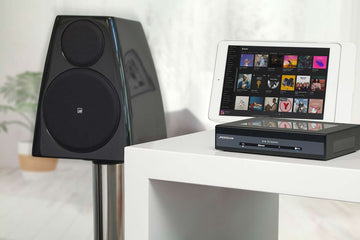

The Meridian DSP3200 is instantly recognisable as a Meridian design. Beautifully mirroring the curves of our flagship DSP8000 Loudspeaker, this compact loudspeaker provides performances beyond its compact dimensions. Couple it with the Audio Core 200 and you have a great system for intimate listening spaces.

Click here for PDF brochure.

EXTENSIVE PLACEMENT OPTIONS

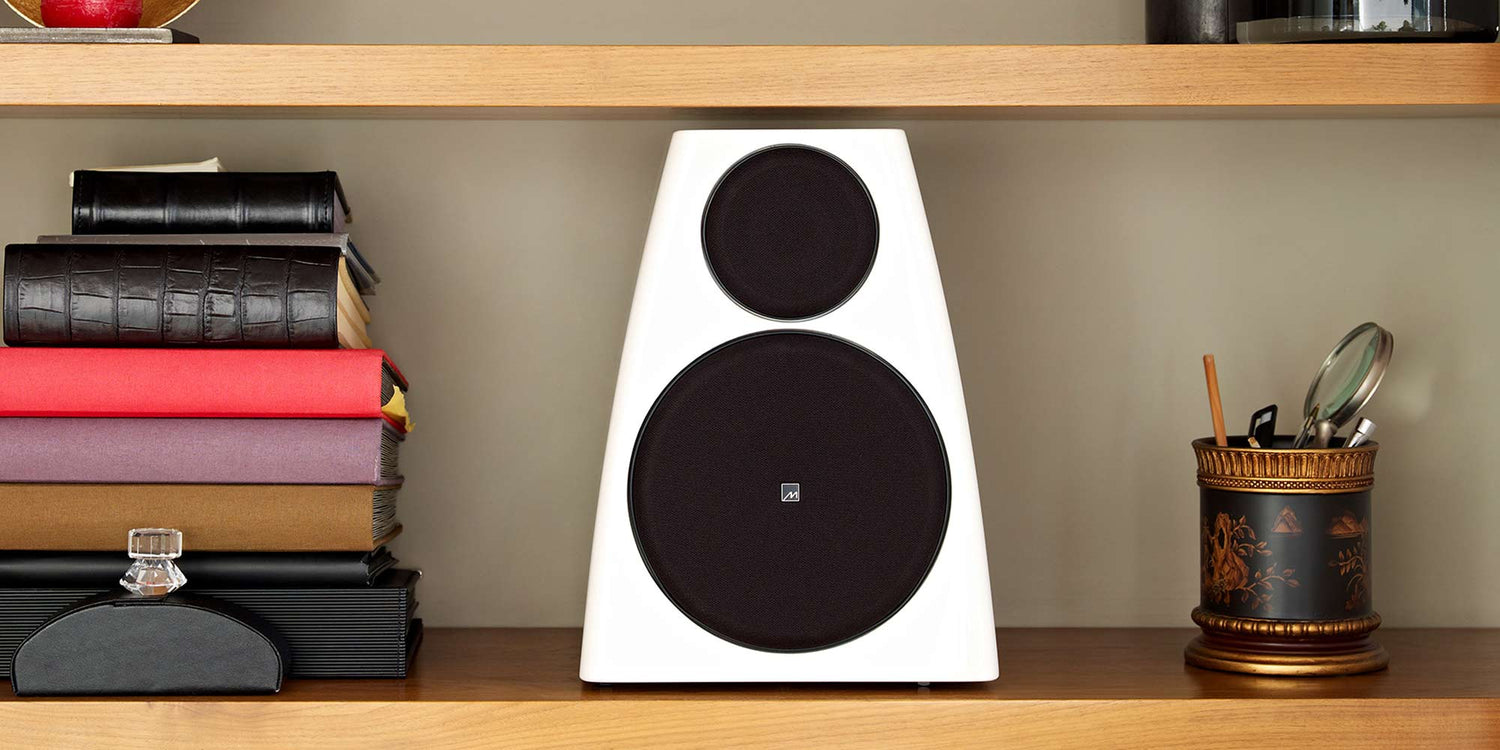

The precision-manufactured cabinet is finished in a high-gloss white and high-gloss black, and is perfectly suited to an extensive variety of room locations including bookshelf, on wall, as well as on floor stands. Like all Meridian Loudspeakers, the DSP3200 employs Meridian’s award-winning DSP technologies; each DSP3200 contains amplification, on-board digital signal processing, and two drivers. The result is a strikingly attractive loudspeaker that provides a perfect entry into the range of DSP Loudspeakers.

DESIGN

Meridian’s elegant DSP3200 loudspeakers echo the lines of Meridian’s flagship DSP8000 and are the most compact Meridian loudspeakers designed to date.

DSP3200 loudspeakers always deliver clear, accurate, quality sound – even at high levels and for prolonged periods. Meanwhile, sophisticated DSP-based loudness controls allow the DSP3200 to deliver a bigger sound that remains balanced at low listening levels.

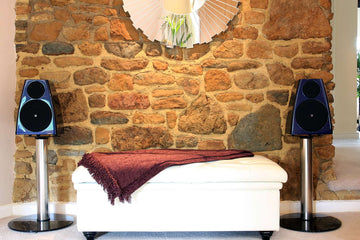

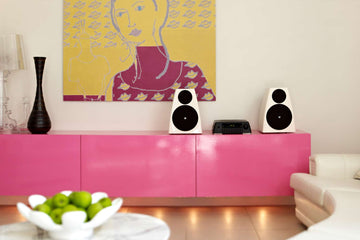

The DSP3200 is perfectly suited to a wide range of room positions – on or in furniture, on floor stands or on wall brackets.

Meridian’s DSP Loudspeaker technologies deliver powerful, room-filling sound with the performance of a conventional speaker eight times the physical volume.

Sophisticated DSP-based loudness control allows DSP3200 to deliver a bigger sound that remains balanced even at low listening levels.

Perfectly suited to a wide range of room positions – on or in furniture, on floor stands or on wall brackets.

König & Meyer 24471 wall bracket optionally allows inverted installation, so DSP3200 fits discreetly into corner locations while DSP audio controls allow it to continue to deliver maximum audio quality.

TECHNOLOGY

Onboard Digital Signal Processing for dynamic bass protection with exceptionally accurate transients. DSP3200 always delivers clear, accurate, quality sound even at high levels and for prolonged periods.

Meridian SpeakerLink connectivity makes DSP3200 quick and easy to set up and install.

Featuring a wide-range driver that allows the DSP crossover frequency to be well outside the speech band, the DSP3200 delivers an effortless sound that remains clear, open and spacious, even at high listening levels.

DSP LOUDSPEAKERS

The traditional setup – amplifiers driving passive loudspeakers – is inefficient, limiting sound quality. Meridian loudspeakers contain a complete, matched audio system with efficient DSP crossovers, multiple DACs and driver-specific amplifiers, giving higher overall quality, less power use, and the performance of a traditional loudspeaker eight times the physical volume.

TRIPLE FIFO BUFFERING

Each sample of a digital recording must remain evenly spaced in time. Unfortunately, timing can vary, especially when reading discs. This is “jitter”, degrading music's sense of space and diminishing realism. Meridian's multiple “First In, First Out” buffering system minimises jitter, ensuring perfect timing and improved clarity. You enjoy a clearer feeling of the instruments and their interrelationship.

MERIDIAN APODISING FILTER

Filters are critical in digital audio. Commonly they introduce distortion and harshness because of "pre-ringing". Early digital recordings suffer from harshness too, due to primitive filters. After painstaking research, Meridian developed a special filter that avoids pre-ringing, so it can be steeper, cleaning up the effects of early filters. The result: a better, cleaner sound from recordings old and new.

SPEAKERLINK

Traditional audio systems often require large, expensive cables to maintain their performance. Meridian's SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components. The result is simple, unobtrusive, and cost-effective cables that are easy to install.

MERIDIAN HIGH RESOLUTION (MHR)

MHR was the first approved encryption method for transferring high definition digital audio between components. Previously, it had to be in the analogue domain, reducing quality. MHR allows secure movement of high resolution digital audio within a Meridian system, without compromise, improving quality by reducing cyclic repetition.

WIDE RANGE DRIVER

Loudspeakers use crossovers to “divide” music into bands their drivers can reproduce. This introduces distortion, reducing sound quality – particularly on human voice recordings. Designing a single driver for both mid and high frequencies made a crossover within the vocal range unnecessary, avoiding distortion and reproducing more lifelike vocals at all volume levels.



Specifications

PERFORMANCE

  • Frequency response in-room within 3dB from 45Hz to over 20kHz.
  • Output >105dB spl @ 1m on music material.
  • Noise less than 15dB spl.

CONNECTIONS

  • Meridian SpeakerLink in and out (RJ45)

CONSTRUCTION

  • 2-way sealed enclosure system.

DRIVERS

  • 1 x 165mm polypropylene bass driver.
  • 1 x 85mm aluminium cone wide-range driver.

AMPLIFIERS

  • Two 75W power amplifiers, one for each driver.
  • Overall distortion typically <0.02% at any frequency or level.

MOUNTING

  • Floor-mounting on stands
  • Free-standing on shelf, etc
  • Wall mounting via König & Meyer 24471 bracket allows upright or inverted orientation.

DIMENSIONS

  • Height: 320mm (without feet); width: 244mm at base, tapering to 134mm; depth: 246mm at base,tapering to 179mm.

WEIGHT

  • 8.5kg per unit.
