Meridian Ellipse Streaming Speaker

Sold Out

Details

Specifications

High performance in any room

Meridian Ellipse is a new, high-performance, all-in-one, streaming speaker rigorously engineered to deliver Meridian's signature sound performance in any room.

Ellipse is meticulously crafted and hand-built in Britain to the same exacting standards as Meridian's flagship loudspeakers. Benefitting from advanced and innovative Meridian technologies, Ellipse has a compact form factor which provides it with the freedom to be placed anywhere whilst ensuring a tailored and luxurious sound experience.

Meridian Ellipse Streaming Speaker

Choose your input

Ellipse offers superb flexibility with Bluetooth® wireless technology and Wi-Fi  streaming, while an Ethernet socket provides the option of a wired network connection.

Bluetooth streams audio directly from a phone, tablet or computer to Ellipse. It also supports AirPlay and Chromecast, as well as native streaming from Spotify Connect and TIDAL Connect. It is a Roon Ready device and can be used as a UPnP renderer.

The Meridian Control app provides access to the full range of control and configuration features of the Ellipse. Whether it’s used on a day-to-day basis, or just for initial set-up, the app allows the listening experience to be tailored to suit personal preferences and to optimise sound quality for the room setting.

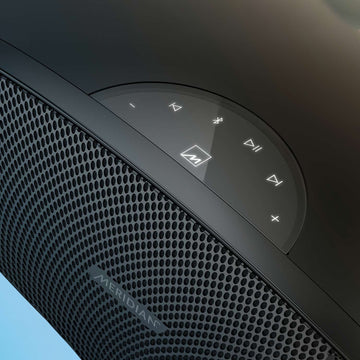

The top panel of Ellipse carries seven intuitive touch-sensitive controls which are backlit when in use.

State-Of-The-Art-Craftmanship

Each component has been meticulously specified for its acoustic benefits, aesthetic contribution, or both. Meridian Ellipse is rigorously engineered to deliver that Meridian signature sound performance in any room as well as being beautiful to look at and easy to use.

Cutting-Edge Performance

Ellipse takes the technological, engineering and manufacturing innovations in Meridian DSP8000 XE and DSP9 and distills them in a compact but extremely powerful package. An incredibly inert, perfectly sealed cabinet encloses powerful drive units and sophisticated signal-enhancing technologies. Unique control options, including Image Elevation technology and the innovative Bass and Space feature, allow the listener to tailor the sound to listening preferences, background noise levels, room size, and speaker placement.

Effortless Simplicity

Control at your fingertips. Playback functions fall easily to hand by virtue of the illuminated touch controls built into the top of the unit. Ellipse is easy to use and yet it supports a rich feature set which offers flexible set-up options and powerful user-settings.

FREQUENCY RESPONSE: 40Hz - 20kHz (@ volume setting 65)

SPL: 100dB @ 1m (pink noise source)

AMPLIFIERS: 2 x 25W for full-range drivers, 1 × 30W for subwoofer driver

WIDE-RANGE DRIVERS: 2 x 90mm polypropylene

LOW-FREQUENCY DRIVER: 1 x 150mm x 100mm polypropylene "racetrack" design
