Nagaoka JT-80LB Replacement Stylus

In Stock, Available Now


Details

Specifications

User-replaceable stylus for MM Cartridge

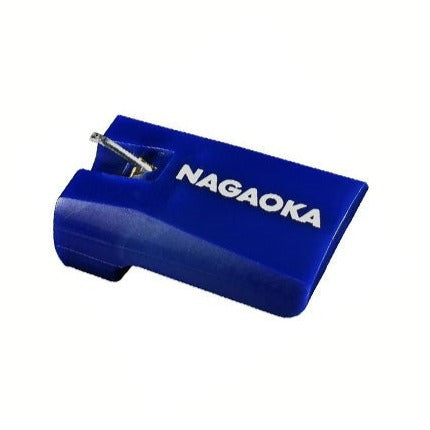

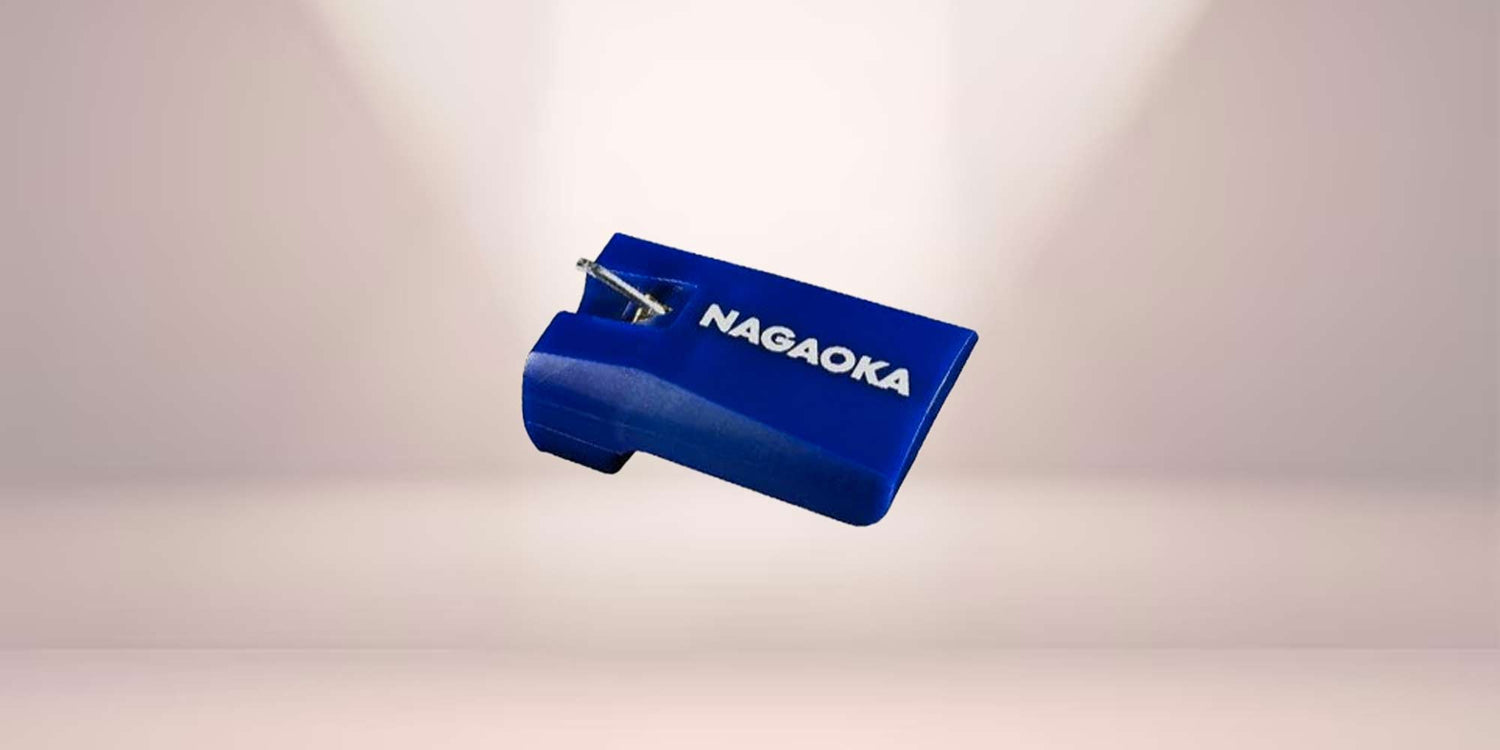

The JT-80LB (Lapis Blue) features a shiny blue underside and is the basic model of the series. It has an aluminum cantilever with a bonded elliptical diamond. Nagaoka describes the sound of the system as "open and powerful".

Type: Moving Magnet

Cantilever: Aluminium

Stylus type: 0.4x0.7mm Ellipse / Diamond

Output voltage: 5 mV (5cm/sec)

Frequency characteristic: 20 - 20,000 Hz

Channel balance: 1.5dB or less

Channel separation: 23 dB at 1 kHz

Tracking force range: 1.3 - 1.8 g
