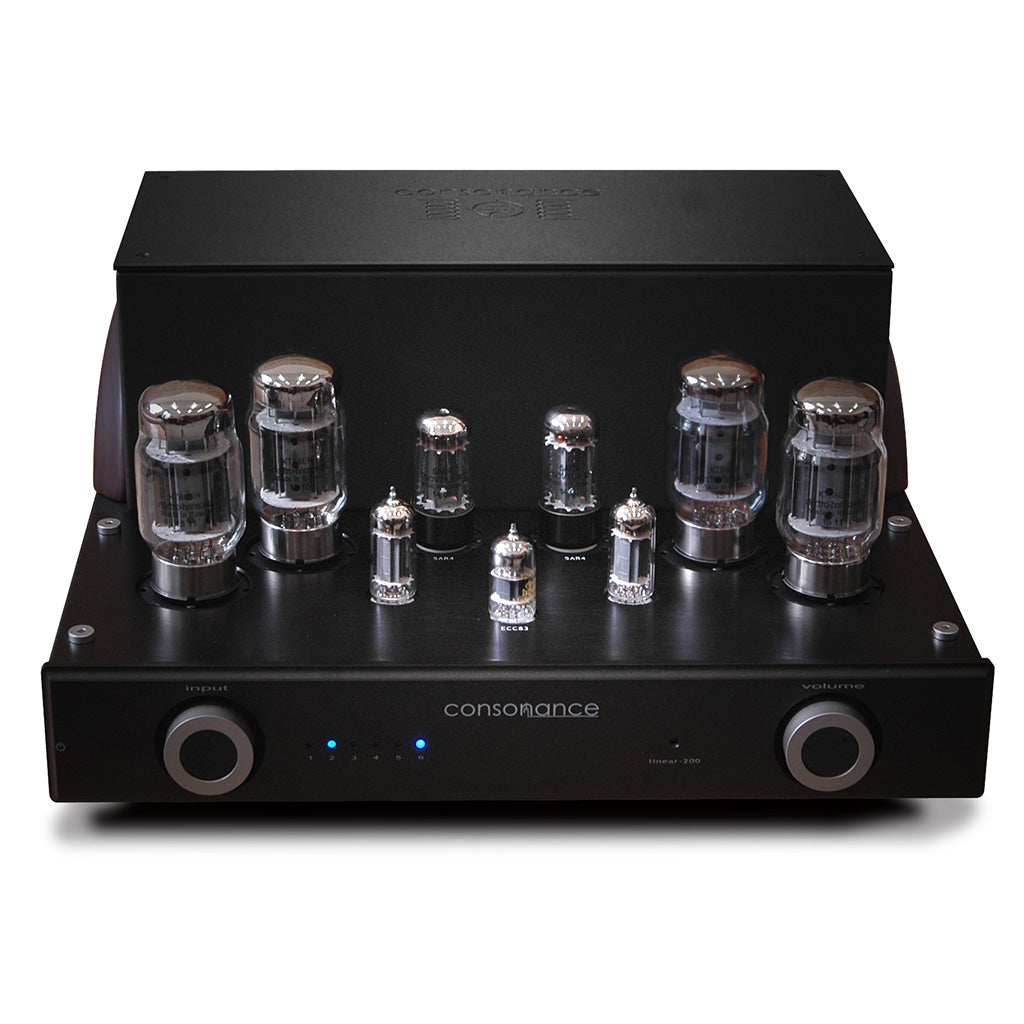

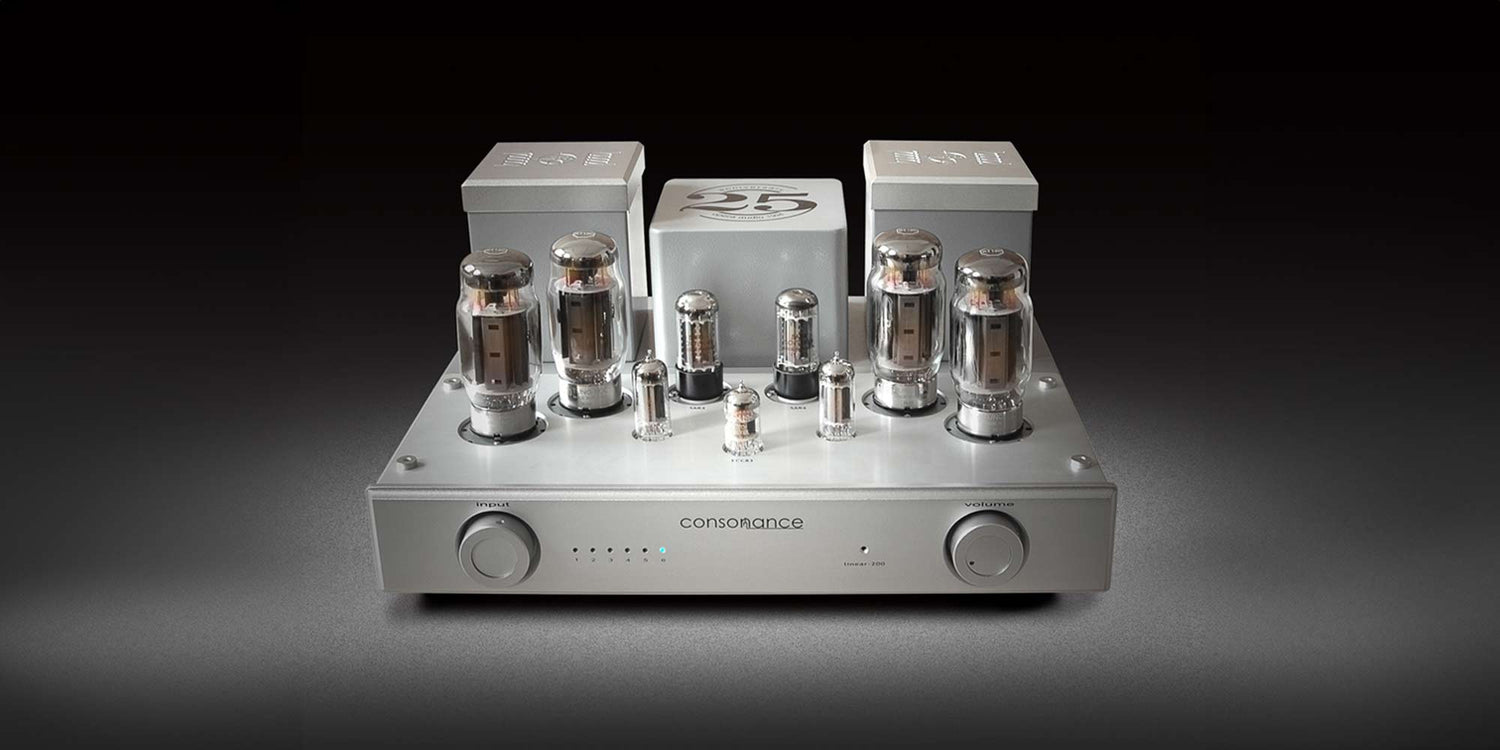

Opera-Consonance Linear 200 Tube Integrated Amplifier


View All Opera-Consonance

In Stock, Available Now



Integrated Tube Amp, 35W

The Opera-Consonance Linear 200 is an integrated tube amplifier with 3 digital and 3 analog inputs. Technology from the 20-year-old Cyber 100 series amplifier, simple but an advanced DAC in one box. Self-biasing KT120, push-pull, cathode negative feedback and hybrid with rectifier design to steady performance and sound. The Linear 200 features 3 digital inputs which for USB, Coaxial and Optical. Ak4490 DAC chip, the advanced X-MOS module to support DSD playback up to DSD256, support all high resolution stereo music formats from computer or interface like Opera-Consonance X5.


  • Circuit Type: Class A, push-pull amplifier
  • Power Output: 35 watt, RMS 1kHz
  • Input Sensitivity: 220mV
  • Noise and Hum: -90 dB below full output
  • Frequency Response: (-3dB points at 10 watt) 6Hz-50kHz
  • Tube compliment: 12AX7 x1, 12BH7 x2, 5AR4 x2 and KT120 x4
  • Input Impedance: 100k ohms
  • Output Impedance: 4 , 8 ohms. User selectable
  • Consumption: 290watt
  • Output Interfaces: 1 groups (RCA)
  • Inputs: RCA x3, Optical x1, Coax RCA x1, USB x1
  • Input Interfaces: 5 groups (RCA) 1, 2, 3, 4, 5
  • Warm-Up Time: 3 Minutes
  • Dimensions: 430 (L) x 380 (W) x 190(H) mm
  • Weight: 29kg
